Detailed Technical Specifications

Product Information

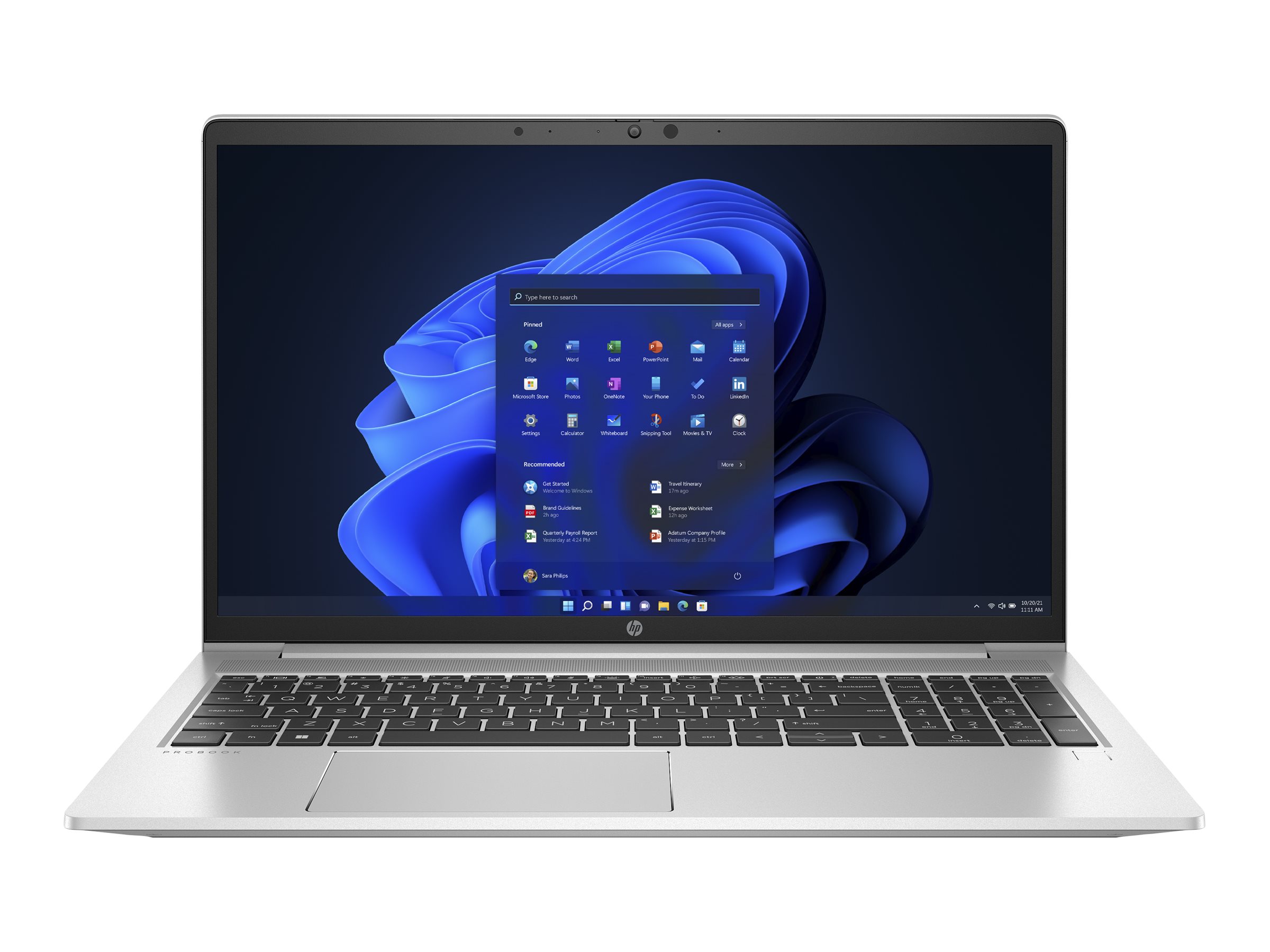

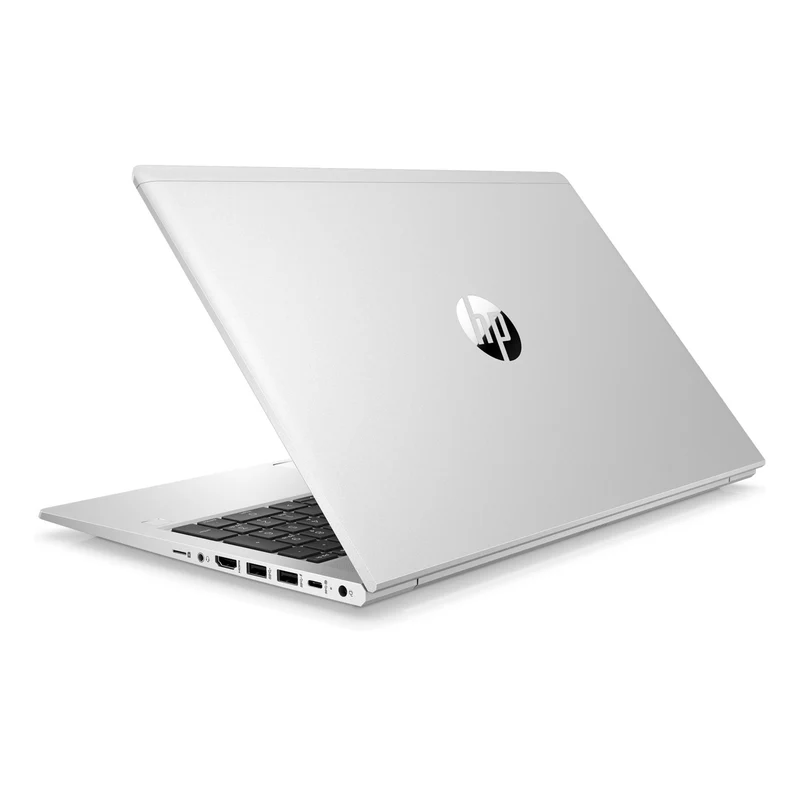

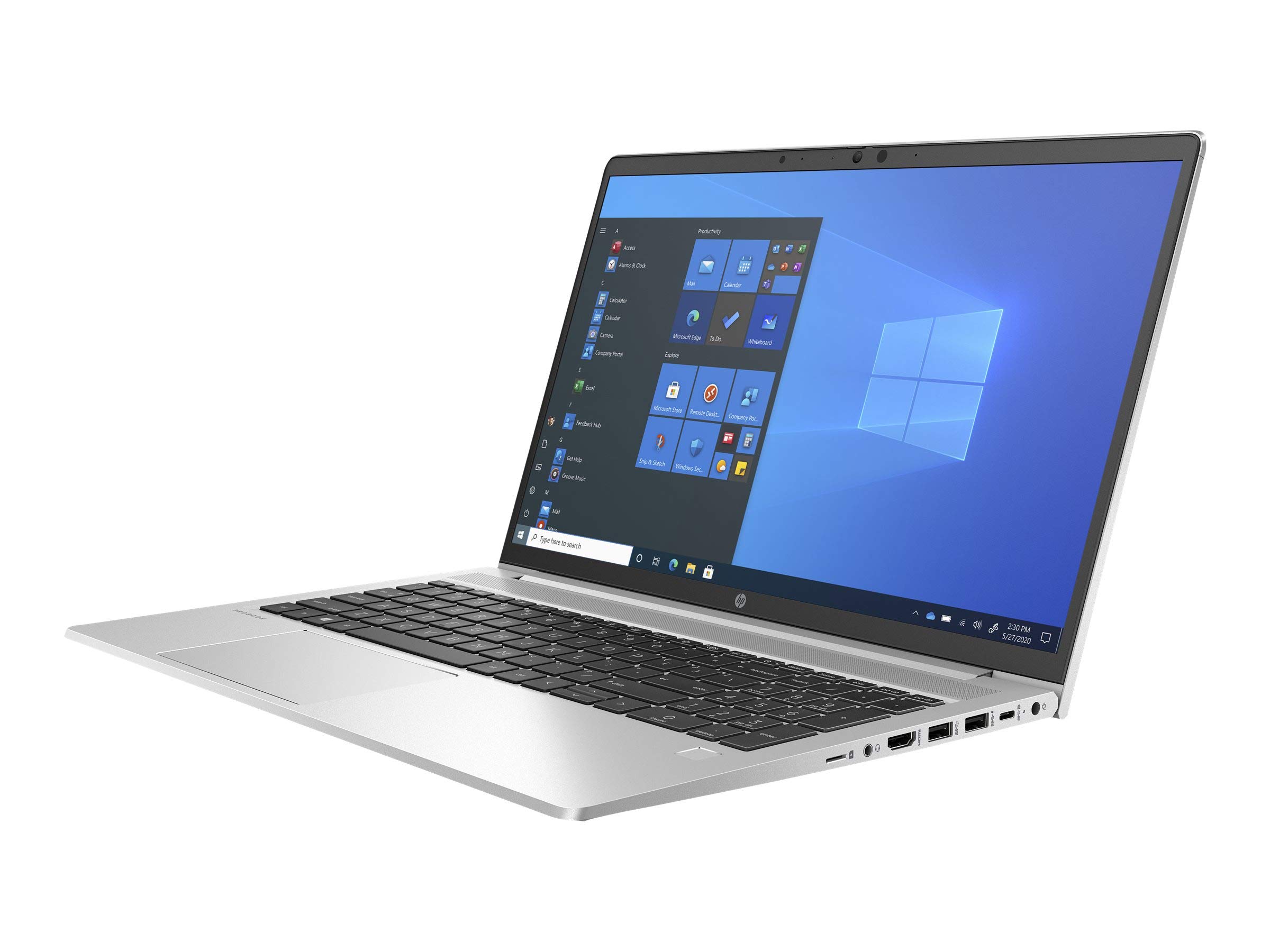

• Product Name: HP ProBook 650 G8
• Model: ProBook 650 G8
• Brand: HP
• Series: ProBook 600 Series (Mainstream Business Laptops)
• Category: Business Laptop
• Release Year: 2021
• Form Factor: 15.6-inch Clamshell Laptop
• Dimensions: 14.11 x 9.76 x 0.78 inches (358.4 x 247.9 x 19.9 mm)
• Weight: Starting at 4.07 lbs (1.85 kg)
• Color: Mineral Silver (standard business color)
• Build Quality: Aluminum and plastic composite construction

Processor (CPU)

• Model: Intel Core i5-1135G7 (most common 11th Gen i5 configuration)
• Generation: 11th Generation (Tiger Lake)
• Cores/Threads: 4 cores, 8 threads (with Hyper-Threading)
• Base Frequency: 2.4 GHz
• Max Turbo Frequency: 4.2 GHz (single core)
• All Core Turbo: 3.8 GHz (all 4 cores)
• Cache: 8MB Intel Smart Cache
• Socket: BGA (soldered to motherboard)
• TDP: 12-28W (configurable, typical 15W for laptops)
• Architecture: 10nm SuperFin
• Intel Technologies: Intel Turbo Boost Max 3.0, Hyper-Threading, VT-x, VT-d, AES-NI, Intel vPro (optional)
• Other Possible CPUs: i5-1145G7 (vPro), i7-1165G7, i7-1185G7 (vPro), i3-1115G4
• Note: G7 indicates Iris Xe graphics, G4 indicates UHD graphics

Display Options

• Size: 15.6-inch diagonal
• Standard Resolution: Full HD 1920x1080 (FHD)
• Panel Types:
  • FHD IPS Anti-Glare (1920x1080) - 250 nits, 45% NTSC
  • FHD IPS Anti-Glare Low Power (1920x1080) - 400 nits, 45% NTSC
  • FHD IPS Touchscreen (1920x1080) - 250 nits, 45% NTSC
  • FHD IPS Privacy Screen (1920x1080) - 1000 nits, HP Sure View integrated
• Brightness: 250 nits (standard), 400 nits (low power), 1000 nits (privacy screen)
• Color Gamut: 45% NTSC (standard), 72% NTSC (optional on some configurations)
• Viewing Angles: 178° horizontal and vertical (IPS technology)
• Bezel: Micro-edge display with thin bezels
• Refresh Rate: 60Hz standard

Graphics

• Integrated Graphics: Intel Iris Xe Graphics (on i5-1135G7)
• Execution Units: 80 EUs (on i5-1135G7)
• Base Frequency: 400 MHz
• Max Dynamic Frequency: 1.3 GHz
• Video Memory: Shared system memory
• Max Resolution: 4096x2304 @ 60Hz (HDMI), 7680x4320 @ 60Hz (DisplayPort over USB-C)
• DirectX Support: DirectX 12.1
• OpenGL Support: OpenGL 4.6
• Video Decode: Hardware accelerated 8K H.264, HEVC 10-bit, VP9, AV1 8-bit
• External Display Support: Up to 4 displays total (internal + 3 external via docking)
• Performance: Significant improvement over previous Intel UHD Graphics, suitable for light photo/video editing

Memory (RAM)

• Capacity: 8GB DDR4 (as configured)
• Type: DDR4-3200 (non-ECC, unbuffered)
• Slots: 2x SO-DIMM slots (user accessible)
• Configuration: Typically 1x8GB (single channel) or 2x4GB (dual channel)
• Maximum Supported: 64GB (2x32GB) - official support, may work with higher capacity modules
• Memory Technology: Dual-channel architecture (recommended for performance with 2 identical modules)
• Speed: 3200MHz (standard for 11th Gen Intel processors)
• Note: DDR4-3200 operates at 3200MHz but actual speed may be 2933MHz or 3200MHz depending on configuration

Storage

• Primary Storage: 256GB Solid State Drive
• Interface: PCIe Gen 3.0 x4 NVMe (or PCIe Gen 4.0 on some high-end configurations)
• Form Factor: M.2 2280
• Storage Bays: 1x M.2 slot (occupied by 256GB SSD)
• Storage Expansion: Can upgrade to larger SSD (up to 2TB typically supported)
• Other Storage Options: 128GB/512GB/1TB/2TB PCIe NVMe SSD
• RAID Support: Not available (single drive configurations only)
• Intel Optane Memory: H10/H20 models with Optane acceleration available on some configurations

Operating System

• Pre-installed: Windows 10 Pro 64-bit or Windows 11 Pro (depending on purchase date)
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: BitLocker, Remote Desktop, Group Policy, Domain Join, Hyper-V
• Windows 11 Compatibility: Fully compatible and certified for Windows 11
• Upgrade Path: Eligible for free Windows 11 Pro upgrade if shipped with Windows 10 Pro
• Linux Options: Certified for Ubuntu, RHEL, SUSE Linux Enterprise

Connectivity

• Ethernet: Realtek RTL8111HSH Gigabit Ethernet (10/100/1000)
• Wireless: Intel Wi-Fi 6 AX201 (802.11ax, 2x2) + Bluetooth 5.2
• Wi-Fi Speed: Up to 2.4 Gbps (theoretical maximum with Wi-Fi 6)
• Bluetooth: Bluetooth 5.2 with LE Audio support
• Mobile Broadband: Optional LTE-Advanced or 5G (Qualcomm Snapdragon X55 or similar)
• Wake-on-LAN: Supported
• LAN Features: Wake on LAN, PXE boot, Energy Efficient Ethernet

Ports & Connectors

• Left Side:
  • 1x USB 3.2 Gen 1 Type-C (5 Gbps, with DisplayPort 1.4 and Power Delivery)
  • 1x USB 3.2 Gen 1 Type-A (5 Gbps)
  • 1x HDMI 2.0
  • 1x 3.5mm headphone/microphone combo jack
  • 1x AC power connector
• Right Side:
  • 2x USB 3.2 Gen 1 Type-A (5 Gbps)
  • 1x RJ-45 Ethernet
  • 1x Kensington lock slot
  • Optional Smart Card reader
• Docking Support: HP USB-C Dock G5 compatible, HP Elite USB-C/AI Dock compatible
• Thunderbolt: Not available on standard configurations (available on some EliteBook models)

Audio

• Audio System: Audio by Bang & Olufsen
• Speakers: Dual stereo speakers with HP Audio Boost
• Speaker Power: 2W per speaker
• Audio Codec: Realtek ALC3247
• Microphone: Dual array digital microphones
• Audio Features: HP Noise Cancellation Software, DTS:X Ultra
• 3.5mm Jack: Headphone/microphone combo with headphone amplifier

Camera & Communication

• Webcam: HP Wide Vision HD camera (720p) with temporal noise reduction
• Camera Options: Optional 5MP IR camera with Windows Hello facial recognition
• Camera Features: Privacy shutter (manual), low-light enhancement
• Microphone: Dual array digital microphones with AI-based noise reduction
• Video Conferencing: Optimized for Microsoft Teams, Zoom, Cisco Webex

Keyboard & Input

• Keyboard: Full-size spill-resistant keyboard with numeric keypad
• Key Travel: 1.5mm
• Backlight: White LED backlight (standard on most configurations)
• Pointing Device: Precision touchpad with multi-touch gesture support
• Touchpad Size: 105 x 70 mm
• Touchpad Features: Microsoft Precision drivers, palm rejection technology
• Optional: Fingerprint reader integrated into keyboard deck

Power & Battery

• Battery Type: 3-cell, 45Wh Li-ion polymer (standard)
• Battery Options: Optional 3-cell, 56Wh long life battery
• Battery Life: Up to 13 hours (MobileMark 2018) with standard battery
• Power Adapter: 65W Smart AC adapter (USB Type-C)
• Fast Charging: HP Fast Charge (50% in 30 minutes when powered off)
• Battery Care: Adaptive Battery Optimizer in HP Support Assistant
• Power Features: Modern Standby (instant on/off), USB-C charging

Security Features

• TPM: TPM 2.0 embedded security chip (discrete or firmware)
• Fingerprint Reader: Optional integrated fingerprint reader
• Smart Card Reader: Optional contact smart card reader
• BIOS Security: HP Sure Start Gen6, Secure Boot, BIOS passwords
• HP Security Features: HP Sure Sense, HP Sure Click, HP Sure Recover, HP Sure Admin
• Intel Security: Optional Intel vPro with Hardware Shield
• Physical Security: Kensington lock slot, webcam privacy shutter

Software & Management

• Pre-installed Software: HP Support Assistant, HP Client Security Manager, HP Connection Optimizer
• Management: HP Manageability Integration Kit, optional Intel vPro with AMT
• Remote Management: Compatible with HP Manageability Center, Microsoft Endpoint Manager
• Cloud Management: HP Device as a Service (DaaS) ready
• HP Wolf Security: Includes HP Wolf Pro Security Edition on business models

Durability & Build Quality

• Military Standard: MIL-STD 810H tested for drops, vibration, humidity, altitude, temperature extremes
• Spill Protection: Spill-resistant keyboard with drainage channels
• Construction: Aluminum cover, plastic base, reinforced corners
• Hinge Design: 180-degree hinge for lay-flat presentation mode
• Display Protection: Corning Gorilla Glass optional on touchscreen models

Environmental Specifications

• Operating Temperature: 32°F to 95°F (0°C to 35°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Relative Humidity: 10% to 90% (non-condensing)
• Altitude: Up to 15,000 feet (4,572 meters)
• Acoustic Noise: 28 dBA typical (idle), 35 dBA under load

Warranty & Support

• Standard Warranty: 3-year limited warranty (parts, labor, and onsite service)
• Support Hours: 24/7 for critical issues, business hours for others
• Onsite Service: Next business day (in supported locations)
• Extended Warranty: Available up to 5 years
• Accidental Damage Protection: Optional HP Care Pack

Certifications & Compliance

• ENERGY STAR 8.0 certified
• EPEAT Silver or Gold (depending on configuration)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified for Windows 10/11

What's in the Box

• HP ProBook 650 G8 laptop
• 65W USB-C Smart AC adapter
• USB-C charging cable
• Documentation kit
• Warranty card

Performance & Business Use

• Target Use: Business productivity, office applications, enterprise computing, remote work
• Recommended For: Business professionals, corporate users, students, remote workers
• CPU Performance: Excellent for office applications, multitasking, web browsing, video conferencing
• Memory Capacity: 8GB is adequate for most business applications; 16GB recommended for heavy multitasking
• Storage Performance: 256GB NVMe SSD provides fast boot times and application loading
• Graphics Performance: Iris Xe Graphics suitable for business applications, 4K video playback, light photo editing

Upgrade Potential

• RAM Upgrade: Easy access panel, supports up to 64GB (2x32GB DDR4)
• Storage Upgrade: Can upgrade to larger NVMe SSD (up to 2TB typically)
• Wi-Fi Upgrade: M.2 Wi-Fi card replaceable with newer standards (Wi-Fi 6E)
• Battery Upgrade: Can upgrade to higher capacity battery
• Limitations: CPU is soldered, not upgradeable

Important Notes & Recommendations

• Memory Configuration: Consider upgrading to 16GB for better multitasking and future-proofing
• Storage: 256GB SSD may fill quickly with Windows updates and business applications; consider 512GB or cloud storage
• Display: 250 nits brightness is adequate for indoor use; consider 400 nits for brighter environments
• Windows 11: Fully compatible and ready for Windows 11 Pro
• Connectivity: USB-C supports charging, data, and display output - consider USB-C docking station
• Compared to 650 G7: G8 has 11th Gen processors, Wi-Fi 6, improved graphics, and newer security features
• Compared to EliteBook 850 G8: ProBook is mainstream business, EliteBook is premium with more features
• Video Conferencing: Consider optional IR camera for Windows Hello and better video call quality
• Battery Life: Actual battery life varies based on usage, display brightness, and power settings
• Value Proposition: Modern business laptop with 11th Gen performance, security features, and enterprise manageability
