Executive Summary

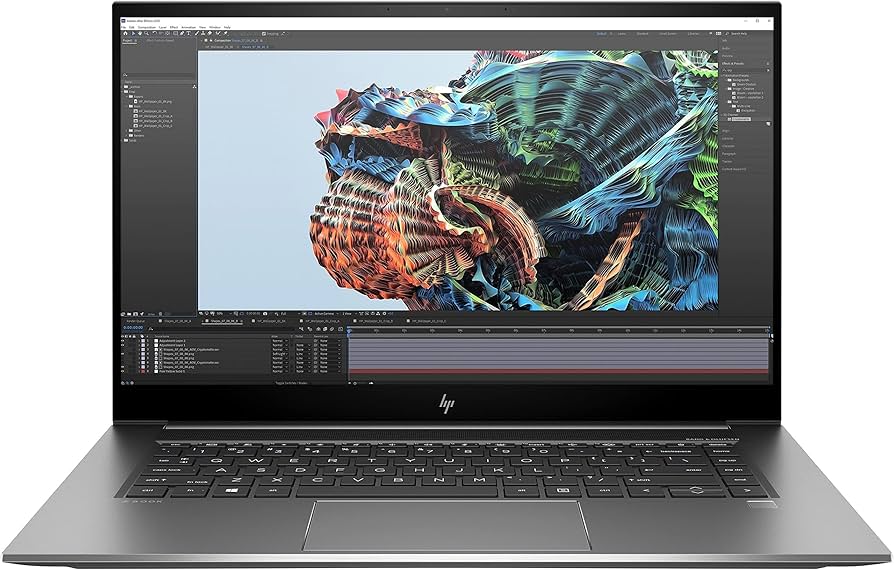

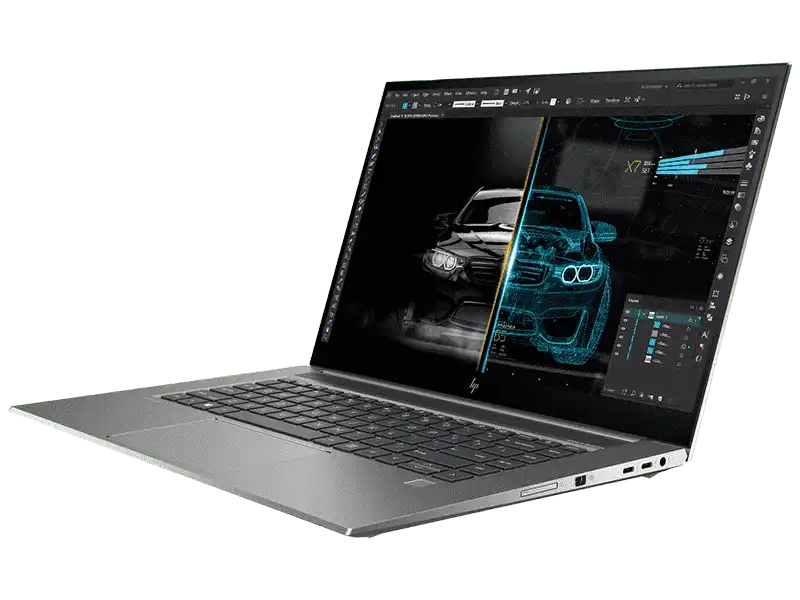

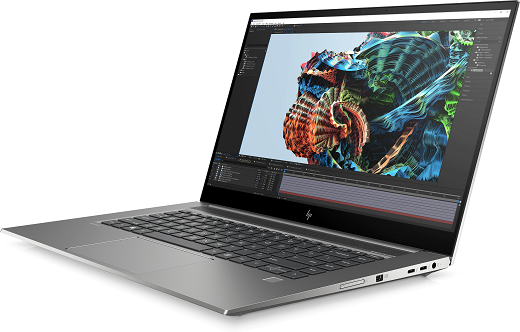

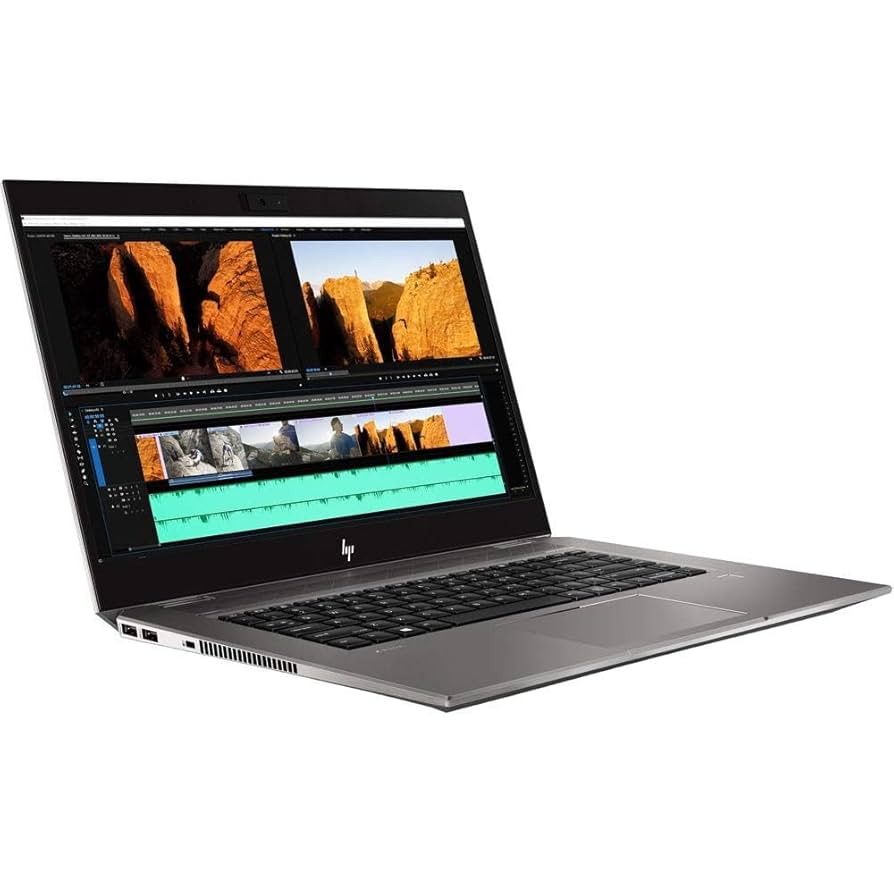

The HP ZBook Studio G8 represents the pinnacle of mobile workstation engineering, combining desktop-class performance with unprecedented portability in a sleek, professional-grade package. As the world's lightest 15-inch mobile workstation at just 1.79kg, this machine defies conventional limitations by packing Intel 11th Gen H-series processors and professional NVIDIA RTX graphics into an ultra-thin CNC-machined aluminum chassis. Designed for demanding professionals in architecture, engineering, content creation, data science, and entertainment, the ZBook Studio G8 balances raw computational power with elegant design. Its crown jewel is the optional 4K DreamColor display with 100% DCI-P3 color accuracy and HDR 400 certification, making it a reference-grade tool for color-critical work. With dual Thunderbolt 4 ports, comprehensive ISV certifications for professional applications, military-grade durability testing, and HP's advanced security suite, this mobile workstation delivers uncompromising performance for creators and engineers who refuse to sacrifice capability for portability.

Detailed Specifications

1. Display Technology (Professional-Grade Options)

• Screen Size: 15.6-inch diagonal with ultra-thin bezels (84% screen-to-body ratio)
• Available Resolutions:
  • FHD (1920 x 1080) IPS Anti-Glare, 400 nits, 100% sRGB
  • 4K UHD (3840 x 2160) IPS Anti-Glare, 400 nits, 100% DCI-P3
  • 4K UHD (3840 x 2160) DreamColor, HDR 400, 100% DCI-P3
• DreamColor Display Features (Premium Option):
  • Factory-calibrated with Delta-E < 2 color accuracy
  • HDR 400 certified with 400 nits brightness
  • 100% DCI-P3 and 100% Adobe RGB coverage
  • Pantone Validated for color accuracy
  • Low Blue Light mode with Eyesafe certification
  • HP DreamColor Utility for color management
• Common Display Specifications:
  • Panel Type: IPS (In-Plane Switching) with wide viewing angles
  • Refresh Rate: 60Hz (standard), some models with 120Hz option
  • Touch Options: Available with Corning Gorilla Glass 5
  • Privacy Screen: Optional HP Sure View integrated privacy

2. Processor Options (11th Gen Intel H-Series)

• Base Configuration: Intel Core i7-11800H (2.3GHz, up to 4.6GHz)
• Available Processors:
  • Intel Core i7-11850H (2.5GHz, up to 4.8GHz)
  • Intel Core i9-11950H (2.6GHz, up to 5.0GHz) - Top configuration
• Microarchitecture: Tiger Lake H45 (11th Generation)
• Cores/Threads:
  • i7-11800H: 8 Cores, 16 Threads
  • i9-11950H: 8 Cores, 16 Threads
• Cache:
  • L3 Cache: 24MB (shared)
  • L2 Cache: 10MB
  • L1 Cache: 640KB
• TDP: 45W base (configurable up to 65W in performance mode)
• Manufacturing Process: 10nm SuperFin
• Performance Features:
  • Intel Turbo Boost Max Technology 3.0
  • Intel Hyper-Threading Technology
  • Intel Thermal Velocity Boost (i9 models)
  • Intel Deep Learning Boost (AI acceleration)
  • AVX-512 instruction set support
  • PCIe Gen 4.0 support (20 lanes)

3. Memory Configuration

• Standard Configurations: 16GB, 32GB, 64GB DDR4
• Memory Architecture: 2 x DDR4 SO-DIMM slots (both user-accessible)
• Memory Specifications:
  • Type: DDR4-3200 (runs at 3200MHz)
  • Max Supported: 64GB (2x32GB)
  • Dual-channel architecture (recommend identical modules)
  • ECC memory not supported (non-ECC only)
• Performance Impact:
  • 3200MHz provides excellent bandwidth for CPU and integrated graphics
  • Dual-channel essential for optimal performance
  • Memory upgradable without replacing entire motherboard
• Recommended Configurations:
  • 32GB (2x16GB) for most professional workloads
  • 64GB (2x32GB) for large datasets, virtualization, complex simulations
  • Avoid single-channel configurations for best performance

4. Storage Options (PCIe Gen4 Performance)

• Storage Architecture: 2 x M.2 PCIe Gen4 slots
  • Both slots support PCIe Gen4 x4 NVMe SSDs
  • Can be configured in RAID 0 or RAID 1 (via BIOS)
  • Thermal pads and heatsinks included for optimal cooling
• Available Configurations:
  • 512GB PCIe Gen4 NVMe SSD (base)
  • 1TB PCIe Gen4 NVMe SSD (recommended)
  • 2TB PCIe Gen4 NVMe SSD (high-end)
  • 4TB total (2x2TB in RAID 0) - Maximum
• Storage Performance:
  • Sequential Read: Up to 7,000 MB/s (PCIe Gen4)
  • Sequential Write: Up to 5,000 MB/s (PCIe Gen4)
  • 4KB Random Read: Up to 1,000,000 IOPS
  • 4KB Random Write: Up to 1,000,000 IOPS
  • Approximately 2x faster than PCIe Gen3 in previous generation
• Storage Features:
  • HP Z Turbo Drive technology for optimized performance
  • Self-Encrypting Drive (SED) options for security
  • Hardware RAID support (0, 1) via Intel VMD controller
  • Easy access via bottom panel for upgrades

5. Graphics Options (NVIDIA RTX Professional)

• Available GPU Configurations:
  • NVIDIA RTX A2000 (4GB GDDR6) - Entry professional
  • NVIDIA RTX A3000 (6GB GDDR6) - Mainstream
  • NVIDIA RTX A4000 (8GB GDDR6) - Performance
  • NVIDIA RTX A5000 (16GB GDDR6) - Ultimate
• NVIDIA RTX A5000 (Top Configuration) Specifications:
  • Architecture: Ampere (GA104)
  • CUDA Cores: 6,144
  • RT Cores: 48 (2nd Generation)
  • Tensor Cores: 192 (3rd Generation)
  • Memory: 16GB GDDR6 with ECC
  • Memory Interface: 256-bit
  • Memory Bandwidth: 448 GB/s
  • TGP: 80-115W (dynamic boost)
  • Professional Features: ECC memory, ISV certifications
• Professional Advantages:
  • ISV Certified for AutoCAD, Revit, SolidWorks, etc.
  • ECC memory for computational accuracy
  • NVIDIA RTX Enterprise Drivers for stability
  • CUDA, RTX, Tensor cores for various workloads
• External Display Support:
  • Up to 4 external displays via Thunderbolt 4/HDMI
  • 8K @ 60Hz or 4K @ 120Hz support
  • NVIDIA Mosaic for multi-display management
  • VR Ready (Oculus Rift, HTC Vive Pro)

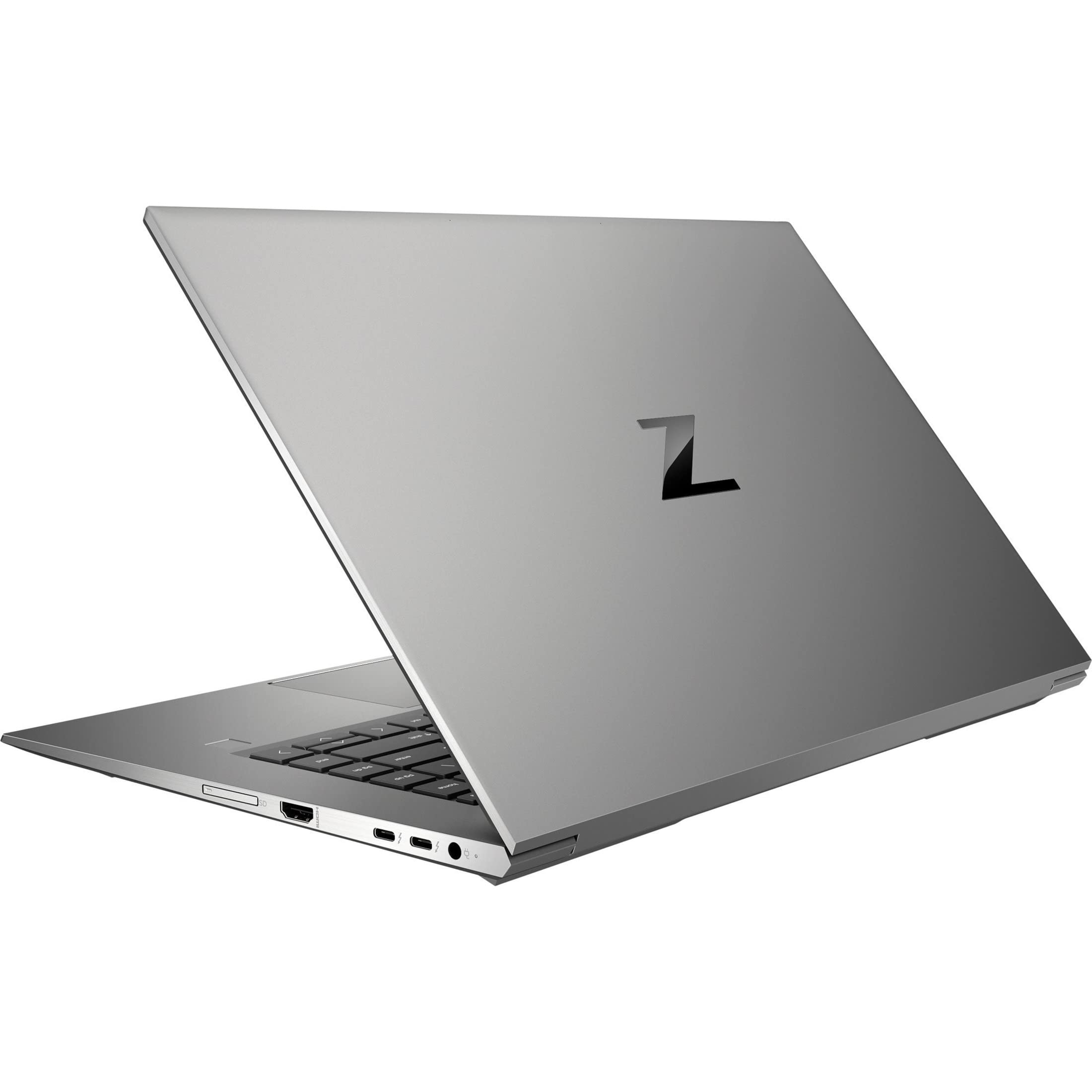

6. Design & Build Quality

• Materials: CNC-machined aluminum unibody
  • Aerospace-grade aluminum alloy
  • Sandblasted anodized finish
  • Minimalist professional design
• Dimensions:
  • Height: 18.0 mm (0.71 inches)
  • Width: 354.0 mm (13.94 inches)
  • Depth: 234.5 mm (9.23 inches)
• Weight:
  • Starting at 1.79 kg (3.95 lbs) - Lightest 15" workstation
  • Typical configuration: 1.9-2.0 kg (4.2-4.4 lbs)
• Color: Natural Silver (aluminum) with dark gray accents
• Durability Testing: MIL-STD 810H certified
  • 21 specific tests including drop, shock, vibration
  • Operating temperature: 0°C to 35°C
  • Altitude: -15m to 3,048m
  • Humidity: 10% to 90% non-condensing
• Keyboard & Touchpad:
  • Backlit spill-resistant keyboard (1.5mm travel)
  • Optional Number Pad (with larger touchpad)
  • Glass touchpad with Windows Precision drivers
  • Optional pointing stick (similar to ThinkPad TrackPoint)

7. Connectivity & Ports

• Left Side:
  1. 2 x Thunderbolt 4 / USB4 ports (40Gbps, Power Delivery, DisplayPort 1.4)
  2. 1 x HDMI 2.0b port (supports 4K @ 60Hz)
  3. 1 x 3.5mm headphone/microphone combo jack
• Right Side:
  1. 2 x USB 3.2 Gen 1 Type-A ports (5Gbps)
  2. 1 x SD card reader (UHS-II, supports SDXC)
  3. Kensington lock slot
• Wireless Connectivity:
  • Wi-Fi 6E (Intel AX210) - 6GHz band support
  • Bluetooth 5.2 with dual antennas
  • Optional: 4G LTE or 5G WWAN (Fibocom or Quectel modules)
• Thunderbolt 4 Advantages:
  • 40Gbps bandwidth (same as Thunderbolt 3 but with stricter requirements)
  • PCIe tunneling for eGPUs and storage
  • Daisy-chain up to 6 devices
  • Universal 100W charging capability

8. Thermal Management

• Cooling System: HP Advanced Thermal Solution
  • Dual fans with ultra-thin blades (0.15mm)
  • Vapor chamber cooling for CPU and GPU
  • Four heat pipes for efficient heat distribution
  • Dual air intake and exhaust vents
• Performance Modes:
  • Performance Mode: Maximum cooling and performance (noisy)
  • Balanced Mode: Optimal balance of noise and performance
  • Cool Mode: Prioritizes quiet operation
  • Eco Mode: Maximizes battery life
• Thermal Innovations:
  • HP Dynamic Power Technology allocates power between CPU/GPU
  • Phase-change thermal compound on CPU/GPU
  • Perforated keyboard deck for additional airflow
  • Intelligent fan control based on component temperatures

9. Audio & Video

• Audio System: Bang & Olufsen quad speakers
  • Two upward-firing tweeters
  • Two downward-firing woofers
  • HP Audio Boost with dual amplifiers
  • Noise cancellation via dual array microphones
• Webcam: 5MP IR camera with temporal noise reduction
  • 1080p resolution at 30fps
  • IR sensor for Windows Hello facial recognition
  • Physical privacy shutter (manual slide)
  • Low light enhancement technology
• Audio Features:
  • DTS:X Ultra for 3D spatial audio
  • AI-based noise reduction for calls
  • Quad array microphones with beamforming
  • Support for high-impedance headphones

10. Security Features

• Hardware Security:
  • HP Sure Start (self-healing BIOS)
  • Discrete TPM 2.0 chip
  • HP Sure View (integrated privacy screen option)
  • Kensington lock slot
• Biometric Authentication:
  • Fingerprint reader (power button integrated)
  • IR camera with Windows Hello facial recognition
  • Optional smart card reader
• Software Security:
  • HP Sure Sense (AI-based malware protection)
  • HP Sure Click (browser isolation)
  • HP Sure Recover (remote recovery)
  • HP Client Security Manager

Performance Benchmarks

CPU Performance (Cinebench R23):

• Core i7-11800H:
  • Single-Core: 1,500-1,550
  • Multi-Core: 11,000-12,000
• Core i9-11950H:
  • Single-Core: 1,550-1,600
  • Multi-Core: 12,500-13,500

GPU Performance (SPECviewperf 2020):

• RTX A3000 (6GB):
  • Solidworks: 180-200
  • CATIA: 140-160
  • Creo: 160-180
• RTX A5000 (16GB):
  • Solidworks: 280-320
  • CATIA: 220-250
  • Maya: 200-230

Target Professionals

Primary Industries:

• Architecture & Engineering: CAD, BIM, simulation
• Media & Entertainment: 3D animation, video editing, VFX
• Data Science: Machine learning, data visualization
• Product Design: Industrial design, prototyping
• Scientific Research: Computational analysis, simulations

Comparison with Competitors

vs. Dell Precision 5560:

• ZBook Advantages: Better cooling, more GPU options, lighter weight
• Precision Advantages: Slightly better display options, Thunderbolt 4 on both sides

vs. Lenovo ThinkPad P1 Gen 4:

• ZBook Advantages: Better thermal design, more durable, comprehensive ISV certs
• P1 Advantages: Lighter (1.81kg), Carbon fiber construction, better keyboard

Upgradeability

• User-Upgradeable: RAM, Storage (2x M.2), Wi-Fi card
• Serviceable: Battery, fans, keyboard (moderate difficulty)
• Non-Upgradeable: CPU, GPU, display (factory only)

Pros & Cons Summary

Advantages:

• World's lightest 15" mobile workstation
• Desktop-class performance in thin form factor
• Excellent 4K DreamColor display option
• Comprehensive ISV certifications
• Robust security features
• Good thermal design for thickness
• Dual Thunderbolt 4 ports

Disadvantages:

• Expensive (premium pricing)
• Limited serviceability compared to thicker workstations
• No Ethernet port (dongle required)
• Battery life modest under heavy loads
• Can get warm under sustained load

Final Recommendation

9.5/10 for Professional Mobile Workstation Users

The HP ZBook Studio G8 represents an exceptional achievement in mobile workstation design, successfully balancing professional-grade performance with unprecedented portability. For architects, engineers, content creators, and data scientists who need uncompromising computational power in a package that can actually travel, this workstation delivers where others compromise. The DreamColor display option alone justifies the premium for color-critical work, while the NVIDIA RTX professional graphics provide certified performance for industry-standard applications.

While certainly an investment, the ZBook Studio G8 offers tangible professional advantages: ISV certifications ensure stability in critical applications, the security suite protects intellectual property, and the build quality withstands rigorous professional use. For those who need professional graphics performance without sacrificing portability, this is arguably the best balanced mobile workstation on the market.
