Executive Summary

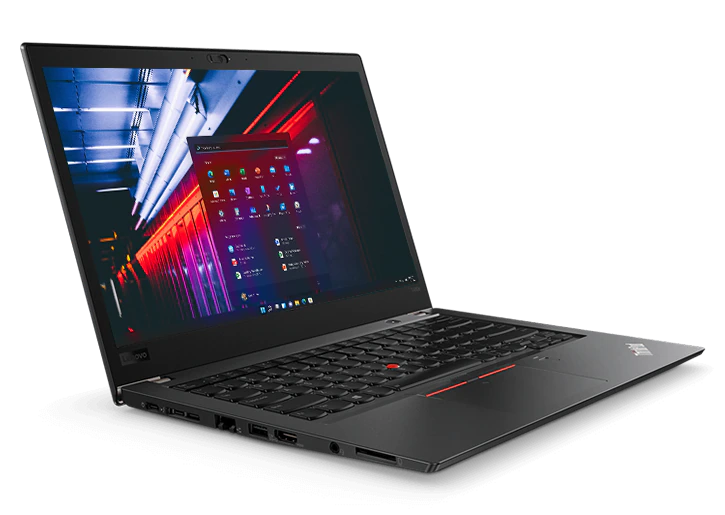

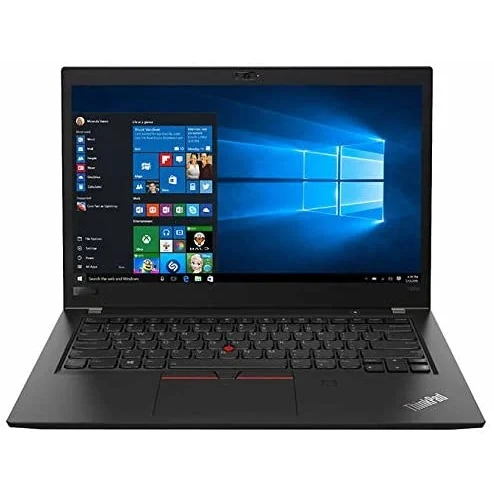

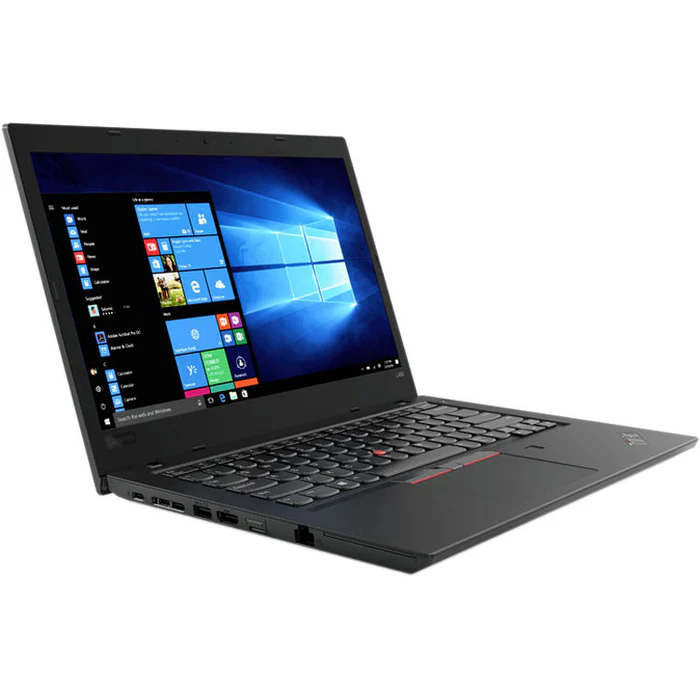

The Lenovo ThinkPad T480s represents the premium, slimmed-down evolution of the iconic T-series, offering a sophisticated balance of portability, performance, and build quality that appeals to mobile professionals who demand both style and substance. As the "s" variant of the popular T480, this model sheds some modularity for superior materials and a thinner profile while retaining core ThinkPad virtues.

Detailed Specifications

1. Display Options

• Screen Size: 14.0-inch diagonal with slimmer bezels than T480
• Available Resolutions:
  • FHD (1920 x 1080) IPS Anti-Glare - Most Common
  • FHD (1920 x 1080) IPS Touchscreen - Optional
  • WQHD (2560 x 1440) IPS Anti-Glare - Premium Option
  • WQHD (2560 x 1440) IPS HDR Dolby Vision - Rare Premium
• FHD IPS Display Specifications:
  • Resolution: 1920 x 1080 pixels (157 PPI)
  • Panel Type: IPS (In-Plane Switching)
  • Brightness: 250 nits (standard), 300 nits (low-power option)
  • Color Gamut: 72% NTSC (sRGB ~100%) - Significant improvement over T480
  • Contrast Ratio: 700:1 (typical)
  • Viewing Angles: 170°/160° (horizontal/vertical)
  • Surface: Anti-glare matte finish (standard), glossy (touchscreen)
• WQHD Display Option (Premium):
  • Resolution: 2560 x 1440 pixels (210 PPI)
  • Brightness: 300 nits
  • Color Gamut: 72% NTSC, some units with 95% sRGB
  • Optional HDR with Dolby Vision (500 nits brightness)
  • Significantly sharper than FHD, excellent for productivity

2. Processor Options

• Base Configuration: Intel Core i5-8250U (1.6GHz, up to 3.4GHz)
• Available Processors:
  • Intel Core i5-8350U (1.7GHz, up to 3.6GHz)
  • Intel Core i7-8550U (1.8GHz, up to 4.0GHz)
  • Intel Core i7-8650U (1.9GHz, up to 4.2GHz)
• Microarchitecture: Kaby Lake R (8th Generation)
• Cores/Threads: 4 Cores, 8 Threads (all configurations)
• Cache:
  • i5: 6MB L3 Cache
  • i7: 8MB L3 Cache
• TDP: 15W (configurable up to 25W)
• Manufacturing Process: 14nm++
• Performance Features:
  • Intel Turbo Boost Technology 2.0
  • Intel Hyper-Threading Technology
  • Intel Virtualization Technology (VT-x, VT-d)
  • AVX2 instruction set support
  • Hardware acceleration for 4K H.265/HEVC encoding/decoding
• vPro Options: Available with i5-8350U and i7-8650U for enterprise management

3. Memory Configuration

• Standard Configurations:
  • 8GB DDR4 2400MHz (8GB soldered + empty slot)
  • 16GB DDR4 2400MHz (8GB soldered + 8GB SODIMM)
  • 24GB DDR4 2400MHz (8GB soldered + 16GB SODIMM) - Max
• Memory Architecture: Hybrid design with one soldered module
  • One channel: 8GB soldered to motherboard
  • One channel: DDR4 SODIMM slot (user accessible)
  • Dual-channel works with matched capacities
• Memory Specifications:
  • Type: DDR4-2400 (officially supports 2400MHz)
  • Max Supported: 24GB (8GB soldered + 16GB SODIMM)
  • Dual-channel with matched capacities (8+8, 8+16 runs in flex mode)
  • ECC memory not supported
• Upgrade Considerations:
  • 8GB soldered cannot be upgraded
  • SODIMM slot easily accessible for upgrades
  • Most common upgrade: Add 8GB SODIMM for 16GB total
  • Maximum practical: 24GB with 16GB SODIMM
• Performance Impact:
  • 8GB: Adequate for office work, light multitasking
  • 16GB: Recommended for professional use, developers
  • 24GB: For heavy virtualization, large datasets, future-proofing

4. Storage Options

• Storage Interface: M.2 PCIe NVMe 3.0 x4
• Form Factor: M.2 2280 (80mm length)
• Available Configurations:
  • 128GB NVMe SSD (base, rare)
  • 256GB NVMe SSD (common)
  • 512GB NVMe SSD (recommended)
  • 1TB NVMe SSD (premium)
• Storage Performance:
  • Read speeds: Up to 3,500 MB/s (with high-end NVMe drives)
  • Write speeds: Up to 3,000 MB/s (with high-end NVMe drives)
  • 4KB random read: Up to 500,000 IOPS
  • 4KB random write: Up to 480,000 IOPS
  • Faster than T480's optional SATA interface
• Storage Upgradeability: Excellent
  • Single M.2 slot easily accessible
  • Supports both NVMe and SATA M.2 drives (but not both simultaneously)
  • No 2.5" bay (unlike T480) - trade-off for slim design
  • Can upgrade to larger/faster NVMe drives
• Recommended Configuration: 512GB NVMe SSD minimum for professional use

5. Graphics Options

• Integrated Graphics (Standard): Intel UHD Graphics 620
  • Execution Units: 24 EUs
  • Base Frequency: 300 MHz
  • Max Dynamic Frequency: 1.15 GHz
  • Memory: Shared system memory (dual-channel improves performance)
  • DirectX 12, OpenGL 4.6 support
  • Supports 4K H.265/HEVC hardware decoding
• Discrete Graphics (Very Rare Option): NVIDIA GeForce MX150 2GB GDDR5
  • Extremely uncommon in T480s (more common in T480)
  • If present: 25W full version (not Max-Q)
  • Performance: 3-4x faster than UHD 620 in GPU tasks
  • Adds heat and reduces battery life
• External Display Support:
  • Up to two external 4K displays @ 60Hz via Thunderbolt 3
  • One external 5K display @ 60Hz via Thunderbolt 3
  • HDMI 1.4b supports 4K @ 30Hz
  • Native support for Lenovo docks and monitors
• Real-World Performance:
  • UHD 620: Excellent for business applications, 4K video, light photo editing
  • MX150: Good for light gaming, CAD, video editing acceleration
  • Most T480s units have integrated graphics only

6. Battery & Power Management

• Battery Configuration: Internal 57Wh lithium-polymer
  • Non-removable (unlike T480's hot-swappable design)
  • Higher energy density than T480's batteries
  • Located beneath palm rest area
• Battery Life Estimates:
  • General office use: 8-12 hours
  • Web browsing: 7-10 hours
  • Video playback: 6-8 hours
  • Heavy workloads: 4-6 hours
  • Varies based on display brightness, workload, and battery health
• Rapid Charge Technology:
  • 80% charge in approximately 1 hour
  • Full charge in approximately 2 hours
  • Uses 65W USB-C charger (included)
• Power Adapter: 65W USB-C Power Adapter
  • Compact and lightweight design
  • Can charge from either Thunderbolt 3 port
  • Supports charging other USB-C devices
  • Optional 45W travel charger available
• Battery Conservation: Lenovo Vantage software allows setting charging thresholds (e.g., stop at 80%) to prolong battery lifespan

7. Connectivity & Ports

• Left Side:
  1. 2 x Thunderbolt 3 / USB-C ports (40Gbps, Power Delivery, DisplayPort)
  2. 1 x USB 3.1 Gen 1 Type-A (always-on charging)
  3. 1 x HDMI 1.4b
  4. Headphone/Microphone combo jack
• Right Side:
  1. 1 x USB 3.1 Gen 1 Type-A
  2. Kensington lock slot
  3. Optional Smart Card reader (enterprise configurations)
  4. MicroSD card reader (SDXC supported)
• Unique Feature: Ethernet Extension Connector
  • Proprietary port for optional Ethernet extension dongle
  • Included in box: USB-C to Ethernet adapter
  • Alternative: Use any USB-C to Ethernet adapter
  • Keeps chassis thin while providing Ethernet option
• Wireless Connectivity:
  • Wi-Fi: Intel 8265 AC (2x2) 867Mbps or optional Intel AC 9260
  • Bluetooth: 4.2 (upgradable to 5.0 with Wi-Fi card swap)
  • WWAN: Optional 4G LTE with nano-SIM slot (Fibocom L850-GL)

8. Keyboard, TrackPoint & Input

• Keyboard: Legendary ThinkPad keyboard (slightly refined)
  • Layout: Spill-resistant, 6-row with dedicated media keys
  • Key Travel: 1.8mm (same as T480, excellent tactile feedback)
  • Backlighting: Optional white LED (single or two-level)
  • Key Features: Concave keycaps, perfect key spacing, excellent durability
  • Difference from T480: Slightly different key shape and texture
• TrackPoint: The iconic red pointing stick
  • Located between G, H, B keys
  • Classic three-button design above touchpad
  • UltraNav technology for precise control
  • Preferred by many for ergonomics (hands stay on home row)
• Touchpad: Precision glass touchpad
  • Larger than previous generations
  • Glass surface with smooth gliding
  • Windows Precision drivers with multi-touch gestures
  • Integrated physical buttons for TrackPoint
• Biometric Security:
  • Fingerprint reader (optional, on palm rest)
  • IR camera with Windows Hello facial recognition (optional)
  • Often both included on higher-end configurations
• Webcam: 720p HD camera with ThinkShutter privacy cover

9. Design, Materials & Build Quality

• Materials: Premium construction
  • Top Cover: Carbon fiber hybrid (lightweight yet strong)
  • Bottom Cover: Magnesium alloy
  • Display Cover: Magnesium alloy
  • Palm Rest: Glass-fiber reinforced plastic with soft-touch coating
• Dimensions:
  • Height: 18.45 mm (0.73 inches) - 8% thinner than T480
  • Width: 331.0 mm (13.03 inches)
  • Depth: 226.8 mm (8.93 inches)
• Weight:
  • Starting at 1.32 kg (2.91 lbs) - 16% lighter than T480
  • Typical configuration: 1.35-1.40 kg (2.98-3.09 lbs)
• Color: Classic ThinkPad black with subtle texture
• Build Quality:
  • Rigid magnesium roll cage
  • Carbon fiber top cover for strength and lightness
  • Reinforced ports and hinges
  • Minimal flex in keyboard deck
• Durability Testing: MIL-STD 810G certified
  • Same rigorous testing as T480
  • Withstands extreme temperatures, humidity, vibration, shock
  • Spill-resistant keyboard with drainage channels

10. Security Features

• Hardware Security:
  • dTPM 2.0 (discrete Trusted Platform Module)
  • Kensington lock slot
  • Webcam shutter (ThinkShutter - manual slide cover)
• Biometric Authentication:
  • Fingerprint reader (Match-on-Chip technology)
  • IR camera with Windows Hello facial recognition
  • Often configured together for multi-factor authentication
• Enterprise Security:
  • Intel vPro available on select configurations
  • Smart Card reader option
  • Computrace support for asset tracking
  • Self-Encrypting Drive (SED) options
• Privacy Features:
  • ThinkShutter camera cover
  • Optional PrivacyGuard display (limits viewing angles)
  • Microphone mute button (on some configurations)

Performance Characteristics

Thermal Design & Performance:

• Cooling System: Single heat pipe, single fan
  • More sophisticated than T480's cooling
  • Better thermal compound application
  • Quieter operation under load
• Thermal Performance:
  • Better sustained performance than T480 due to improved cooling
  • Less thermal throttling in extended workloads
  • Quieter fan profile (more refined acoustic tuning)
• Performance Tweaks:
  • Undervolting possible via ThrottleStop or Intel XTU
  • Repasting with quality thermal compound yields good results
  • Power limits can be adjusted in BIOS (advanced menu)

Real-World Performance (Geekbench 5):

• Core i5-8250U:
  • Single-Core: 800-850
  • Multi-Core: 2,900-3,200
• Core i7-8550U:
  • Single-Core: 900-950
  • Multi-Core: 3,200-3,500
• Performance Context:
  • Similar to T480 (same processors)
  • Better sustained performance due to thermal design
  • Adequate for most business and development tasks
  • May struggle with heavy, sustained all-core workloads

Comparison: T480s vs T480

T480s Advantages:

• 16% lighter (1.32kg vs 1.58kg)
• 8% thinner (18.45mm vs 19.95mm)
• Premium materials (magnesium + carbon fiber vs plastic)
• Better display options (higher color gamut available)
• Better thermal performance (quieter, less throttling)
• More refined design (slimmer bezels, cleaner lines)
• No battery bump (cleaner profile)

T480 Advantages:

• Dual storage (M.2 + 2.5" bay vs single M.2)
• Dual RAM slots (both upgradable vs 1 soldered + 1 slot)
• Hot-swappable battery (internal + external vs internal only)
• Dedicated Ethernet port (no dongle needed)
• Potentially longer battery life (with 72Wh external)
• Often cheaper on used market
• Maximum upgradability (RAM, storage, battery)

Decision Guide:

• Choose T480s if: Portability, premium feel, and display quality are priorities
• Choose T480 if: Maximum upgradability, hot-swap battery, and budget are priorities

Upgrade Guide

Easy Upgrades:

1. RAM: Add 8GB or 16GB DDR4-2400 SODIMM (max 24GB total)
2. Storage: Replace M.2 NVMe SSD with larger/faster drive
3. Wi-Fi: Upgrade to Intel AX200/AX210 for Wi-Fi 6/6E
4. Thermal: Repaste CPU with quality thermal compound

Moderate Upgrades:

• Display: Possible but complex (requires panel, cable, brackets)
• Keyboard: Can replace with backlit version if not equipped
• Battery: Replacement requires disassembly (not user-friendly)

Tools Required:

• Phillips #00 screwdriver
• Plastic spudger or guitar pick
• Anti-static precautions recommended

Common Issues & Solutions

1. Thunderbolt 3 Firmware:

• Issue: Same Thunderbolt controller as T480 with potential firmware bugs
• Solution: Ensure latest Thunderbolt firmware is installed
• Check: Use Lenovo Vantage to update all drivers

2. Display Cable:

• Issue: Thin cable can wear from repeated opening/closing
• Symptom: Flickering or artifacts when adjusting screen angle
• Solution: Replace display cable (inexpensive part)

3. Battery Degradation:

• Issue: Non-removable battery may have degraded after 5+ years
• Check: Use Lenovo Vantage to check battery health
• Solution: Battery replacement requires disassembly (moderate difficulty)

4. Palm Rest Wear:

• Issue: Soft-touch coating can wear on palm rest over time
• Prevention: Use laptop sleeve, clean with mild detergent
• Solution: Palm rest replacement possible but requires full disassembly

Target Market & Use Cases

Ideal Users:

• Mobile Professionals: Consultants, executives, salespeople who travel frequently
• Developers & Engineers: Who value keyboard quality and portability
• Designers & Creatives: Who appreciate better display options
• Enterprise Users: Needing corporate management features (vPro)
• Students in Technical Fields: Who need durability and performance

Recommended Configurations:

• Mobile Executive: i5, 16GB, 512GB SSD, FHD, IR camera, fingerprint
• Developer: i7, 24GB, 1TB SSD, WQHD display
• Student: i5, 8GB+8GB, 512GB SSD, FHD (upgrade RAM yourself)
• Creative Professional: i7, 16GB, 1TB SSD, WQHD HDR display

Long-Term Reliability

Build Quality:

• Expected Lifespan: 5-7 years with normal use
• Repairability: Good (7/10 iFixit score)
• Parts Availability: Excellent (widespread aftermarket support)
• Community Support: Strong ThinkPad community

Software Support:

• Windows: Fully compatible with Windows 10/11
• Linux: Excellent compatibility (Ubuntu, Fedora, etc.)
• Driver Support: Long-term support from Lenovo

Environmental Impact

Sustainability:

• Longevity: Designed for long service life
• Materials: Recyclable magnesium and plastics
• Energy Efficiency: ENERGY STAR certified
• Packaging: Minimal, recyclable materials

Cost Analysis & Market Value

Original Pricing (2018):

• Base Model: $1,200-$1,400
• Mid-range: $1,500-$1,800
• High-end: $2,000-$2,500

Current Market Value (2024):

• Base (i5, 8GB, 256GB): $250-$350
• Mid (i5, 16GB, 512GB, FHD): $350-$500
• High (i7, 16GB, 1TB, WQHD): $500-$700
• Factors: Display type, battery health, physical condition

Pros & Cons Summary

Advantages:

• Exceptional build quality (magnesium + carbon fiber)
• Lightweight and portable (1.32kg starting weight)
• Excellent keyboard with TrackPoint
• Good display options (72% NTSC FHD, WQHD available)
• Comprehensive port selection (Thunderbolt 3, USB-A, HDMI)
• Good performance with 8th-gen quad-core CPUs
• Strong security features (fingerprint, IR camera, dTPM)
• Good Linux compatibility
• Refined design with slim bezels
• Good thermal performance (quieter than T480)

Disadvantages:

• Hybrid RAM (8GB soldered + 1 slot) limits max RAM to 24GB
• No 2.5" storage bay (single M.2 only)
• Non-removable battery (requires disassembly to replace)
• Ethernet requires dongle (included but easy to lose)
• Thunderbolt 3 firmware issues on early units
• 720p webcam (standard for era but dated now)
• More expensive than T480 on used market
• Battery life good but not exceptional (no extended battery option)

Final Recommendation

Buy the ThinkPad T480s If:

• You prioritize portability and premium build quality
• You want the best ThinkPad keyboard experience
• You value display quality (good color gamut options)
• You travel frequently and need a lightweight professional laptop
• Your budget is $400-$600 for a premium used business laptop
• You appreciate refined design and attention to detail
• 16GB-24GB RAM is sufficient for your needs

Consider Alternatives If:

• You need 32GB+ RAM (consider T480 or newer models)
• You require dual storage drives (T480 has M.2 + 2.5")
• You need hot-swappable batteries for all-day use
• You want dedicated Ethernet without a dongle
• Your budget is under $300 (T480 offers better value)
• You need maximum upgradability above all else

Best Value Configuration:

• Core i5-8350U (best balance of performance and value)
• 16GB RAM (8GB soldered + 8GB SODIMM)
• 512GB NVMe SSD
• FHD IPS 72% NTSC display (look for LP140WF6-SPB1 panel)
• Backlit keyboard + Fingerprint reader
• Good battery health (check with Lenovo Vantage)

Overall Assessment:

9.2/10 for Mobile Professionals in 2024

The ThinkPad T480s represents perhaps the perfect balance in the ThinkPad lineup - offering enough of the T480's capability in a significantly more portable and premium package. Its magnesium and carbon fiber construction provides a feeling of quality that surpasses both the T480 and many contemporary laptops, while maintaining the legendary keyboard and TrackPoint experience that defines ThinkPads.
