Executive Summary

The Lenovo ThinkPad X1 Yoga (4th Generation) represents the pinnacle of business convertible design, merging the legendary ThinkPad durability and keyboard excellence with versatile 2-in-1 functionality. This configuration featuring an 8th Gen Intel Core i5 processor, 8GB of RAM, and a generous 512GB SSD strikes an ideal balance for executive users and mobile professionals who demand both laptop productivity and tablet flexibility.

Detailed Specifications

1. Performance Configuration

• Processor: Intel Core i5-8265U (Whiskey Lake, 14nm++)
  • 4 cores, 8 threads with Intel Hyper-Threading
  • Base frequency: 1.6 GHz, Turbo Boost up to 3.9 GHz
  • 6MB Intel Smart Cache
  • 15W TDP (optimized for ultraportable performance)
• Memory Configuration:
  • 8GB LPDDR3-2133MHz (low-power DDR3)
  • Soldered to motherboard (not user-upgradable)
  • Dual-channel configuration for optimal performance
  • Adequate for business applications, but fixed at 8GB
• Storage System:
  • 512GB NVMe PCIe SSD (M.2 2280)
  • Read speeds: ~2,000-3,000 MB/s
  • Write speeds: ~1,000-2,000 MB/s
  • User-upgradable to larger capacity NVMe drives (up to 2TB)
• Graphics: Intel UHD Graphics 620
  • 24 execution units, 300-1100 MHz
  • Supports 4K video playback at 60Hz
  • Hardware acceleration for modern codecs
  • Capable of driving external 4K displays via Thunderbolt 3

2. Display & Touch Experience

• Panel Specifications:
  • 14" Full HD (1920x1080) IPS Touchscreen
  • 300 nits brightness (400 nits optional on some models)
  • Dolby Vision HDR support for enhanced contrast and color
  • 72% NTSC color gamut (100% sRGB equivalent)
  • Corning Gorilla Glass protection
• Touch & Pen Features:
  • 10-point multi-touch capacitive touchscreen
  • ThinkPad Precision Pen (included, garaged in chassis)
  • 2,048 levels of pressure sensitivity
  • Palm rejection technology
  • Wacom AES 2.0 pen technology
• Display Options (Other Available):
  • WQHD (2560x1440) IPS with Dolby Vision, 300 nits
  • 4K UHD (3840x2160) IPS with Dolby Vision, 400 nits, HDR400
  • PrivacyGuard display with integrated privacy filter

3. Innovative Convertible Design

• 360-Degree Hinge:
  • Precision-engineered watchband hinge
  • Smooth transition between modes without wobble
  • Tested for 25,000+ open/close cycles
  • Auto-locks in tablet mode for stability

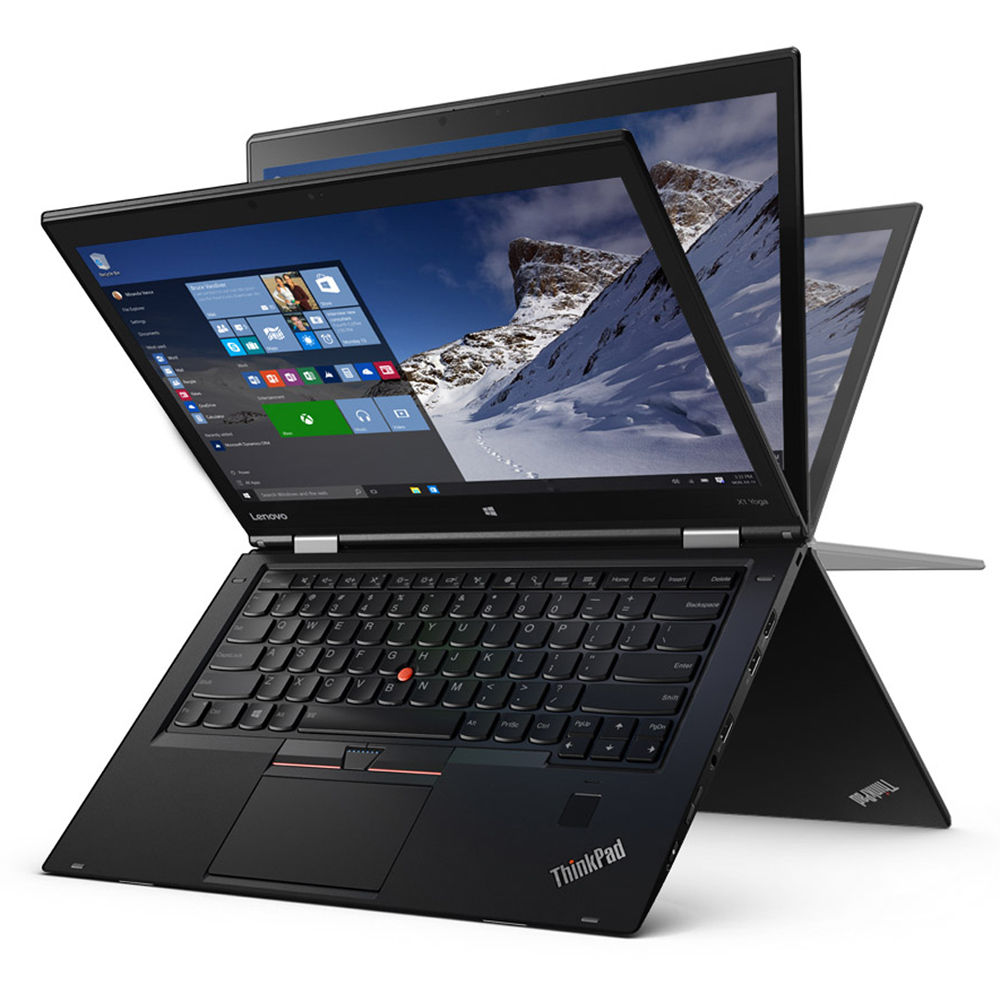

• Usage Modes:
  • Laptop Mode: Traditional clamshell for productivity
  • Tablet Mode: Screen folded flat for touch/pen use
  • Tent Mode: Inverted V for presentations/kiosk use
  • Stand Mode: Display facing outwards for media consumption
• Pen Garage:
  • Integrated silo for ThinkPad Precision Pen
  • Pen charges while garaged (battery-free operation)
  • Prevents loss during transport
  • Automatically detected when removed/replaced

4. Premium Materials & Build Quality

• Chassis Construction:
  • Top cover: Aluminum with carbon fiber hybrid
  • Bottom cover: Magnesium alloy
  • Display cover: Aluminum
  • Palm rest: Glass-fiber reinforced plastic
• Durability Features:
  • Military-grade testing (multiple MIL-STD-810G tests)
  • Spill-resistant keyboard with drainage channels
  • Reinforced corners and edges
  • Corrosion-resistant materials
• Dimensions & Weight:
  • Height: 0.57" (14.5 mm) - remarkably thin
  • Width: 12.7" (323.5 mm)
  • Depth: 8.6" (218.5 mm)
  • Weight: 2.99 lbs (1.36 kg) - extremely light for 14" convertible
• Color Options:
  • ThinkPad Black (classic matte finish)
  • Silver (optional on some models)

5. Legendary ThinkPad Input Devices

• Keyboard Excellence:
  • Legendary ThinkPad keyboard with 1.8mm key travel
  • Spill-resistant design with drainage system
  • White LED backlight (two-level illumination)
  • Auto-disables in tablet mode for palm rejection
  • Excellent tactile feedback for extended typing
• TrackPoint & Trackpad:
  • Classic red TrackPoint pointing stick
  • Three dedicated physical buttons for TrackPoint
  • Precision glass trackpad with multi-touch gestures
  • Microsoft Precision Touchpad certified
• ThinkPad Precision Pen:
  • Garaged in chassis (prevents loss)
  • 2,048 pressure levels for precise input
  • Battery-free operation (charges in garage)
  • Two programmable buttons

6. Connectivity & Business Features

• Port Selection:
  • 2x Thunderbolt 3 (USB-C, 40Gbps, Power Delivery, DisplayPort)
  • 2x USB-A 3.1 Gen 1 (5Gbps)
  • HDMI 1.4b
  • Headphone/microphone combo jack
  • MicroSD card reader (optional on some models)
• Wireless Connectivity:
  • Wi-Fi 5 (802.11ac) 2x2 with dual-band support
  • Bluetooth 5.0
  • Optional: 4G LTE WWAN with eSIM support
  • Optional: Intel vPro with AMT for remote management
• Audio System:
  • Dolby Atmos Speaker System
  • Four 360-degree far-field microphones
  • Noise-canceling technology for voice calls
  • Dolby Audio for enhanced multimedia experience

7. Security & Manageability

• Hardware Security:
  • Discrete TPM 2.0 chip
  • Fingerprint reader (fast, reliable authentication)
  • IR camera with Windows Hello facial recognition
  • Camera privacy shutter (ThinkShutter physical cover)
  • Kensington lock slot
• Software Security:
  • ThinkShield security suite
  • Lenovo Vantage for system management
  • Compatible with enterprise management solutions
  • Secure boot with measured launch technology
• Webcam Features:
  • 720p HD webcam with ThinkShutter privacy cover
  • IR camera for Windows Hello (optional)
  • Dual microphones with noise reduction

8. Battery & Power Management

• Battery System:
  • Integrated 51Wh lithium-polymer battery
  • Battery life: 8-10 hours typical business use
  • Rapid Charge: 80% in 1 hour
  • Battery conservation mode for extended lifespan
• Power Management:
  • Lenovo Vantage power optimization
  • Intelligent cooling for different usage modes
  • Power adapter: 65W USB-C (works with either Thunderbolt port)
  • Can charge via any Thunderbolt 3 port

Performance Analysis

Business Application Performance

• Office Productivity: Excellent for business suites
  • Microsoft Office 365 applications run smoothly
  • Handles large Excel spreadsheets and PowerPoint presentations
  • Email and calendar applications responsive
• Multitasking Capability:
  • 8GB RAM sufficient for typical business multitasking
  • Can handle 15-20 browser tabs with Office applications
  • 4-core processor provides good parallel task handling
• Creative & Note-Taking:
  • Excellent for digital note-taking with Precision Pen
  • Good for light photo editing and graphic design
  • Capable of 1080p video editing with optimization

Benchmark Performance

• CPU Performance (Geekbench 5):
  • Single-core: 900-1,000 points
  • Multi-core: 2,800-3,200 points
  • Competent performance for business applications
• Storage Performance:
  • NVMe SSD: ~2,500 MB/s read, ~1,800 MB/s write
  • Fast boot and application loading times
  • Responsive system feel despite soldered RAM

Unique Features & Innovations

Standout Characteristics

• Garaged Pen System:
  • Integrated silo prevents pen loss
  • Automatic charging while stored
  • Seamless transition between laptop and tablet modes
• Watchband Hinge:
  • Unique aesthetic with functional benefits
  • Smooth operation with precise positioning
  • Durable construction for frequent mode changes
• Dolby Vision Display:
  • Enhanced HDR for better contrast and color
  • Excellent for media consumption and creative work
  • Better viewing experience than standard IPS panels

Comparison with Competitors

vs. HP EliteBook x360

• X1 Yoga Advantages: Better keyboard, TrackPoint, garaged pen, ThinkPad durability
• EliteBook Advantages: Often better pricing, more configuration options

vs. Dell Latitude 7400 2-in-1

• X1 Yoga Advantages: Thinner/lighter, better materials, garaged pen
• Latitude Advantages: Better enterprise management tools, often better battery

vs. Microsoft Surface Laptop Studio

• X1 Yoga Advantages: Better keyboard, more ports, traditional 2-in-1 design
• Surface Advantages: More innovative form factor, better pen experience, newer hardware

Pros & Cons

Advantages

• Exceptional build quality with premium materials
• Legendary ThinkPad keyboard with excellent typing experience
• Garaged pen system prevents loss and charges automatically
• Thin and light design for a 14" convertible
• Dual Thunderbolt 3 ports for future-proof connectivity
• Dolby Vision display with good color accuracy
• Comprehensive security features (ThinkShield suite)
• Excellent 2-in-1 implementation with stable hinge

Limitations

• Soldered RAM (fixed at 8GB, not upgradable)
• Battery life average for class (8-10 hours)
• Display brightness only 300 nits (dim for outdoor use)
• Integrated graphics only (not for gaming/3D work)
• Fan noise can be noticeable under load
• Price premium over non-ThinkPad convertibles
• No SD card reader on most models

Target User Profiles

Ideal Users

• Executives & Business Leaders: Premium design, presentation capabilities
• Consultants & Presenters: Tablet mode for client interactions
• Note-takers & Students: Excellent pen experience for digital notes
• Creative Professionals: Good display for light creative work
• Frequent Travelers: Lightweight, versatile form factor
• ThinkPad Enthusiasts: Want 2-in-1 functionality with ThinkPad quality

Current Market Value (2024)

• Original Price (2019): $1,500-$1,800 for this configuration
• 2024 Market Price: $450-$650
  • Base condition: $450-550
  • Good condition with pen: $500-600
  • Excellent condition with accessories: $550-650
• Value Assessment:
  • Good value for premium convertible features
  • Soldered RAM limits future-proofing
  • Premium build quality maintains value

Final Recommendation

Rating: 8.0/10 for Convertible Users | 7.0/10 for Traditional Laptop Users

The ThinkPad X1 Yoga (4th Gen) represents one of the most refined business convertibles ever created, successfully merging ThinkPad's legendary keyboard and build quality with versatile 2-in-1 functionality. This specific configuration with Core i5, 8GB RAM, and 512GB SSD offers a balanced combination for professionals who genuinely need convertible capabilities.

Bottom line: Buy this if you need a premium convertible for presentations, note-taking, or creative work and value ThinkPad build quality. Consider alternatives if you primarily need a traditional laptop or require more than 8GB of RAM for future-proofing.
