Detailed Technical Specifications

Product Information

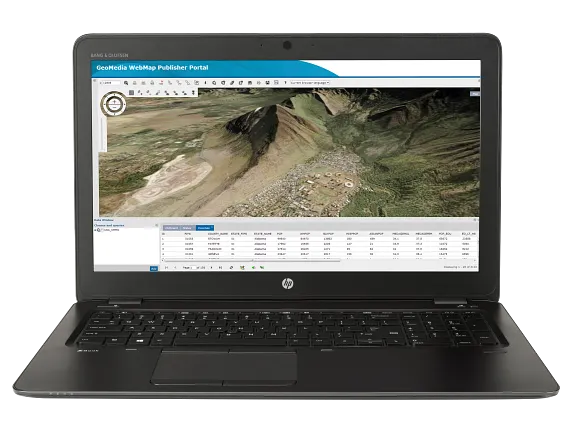

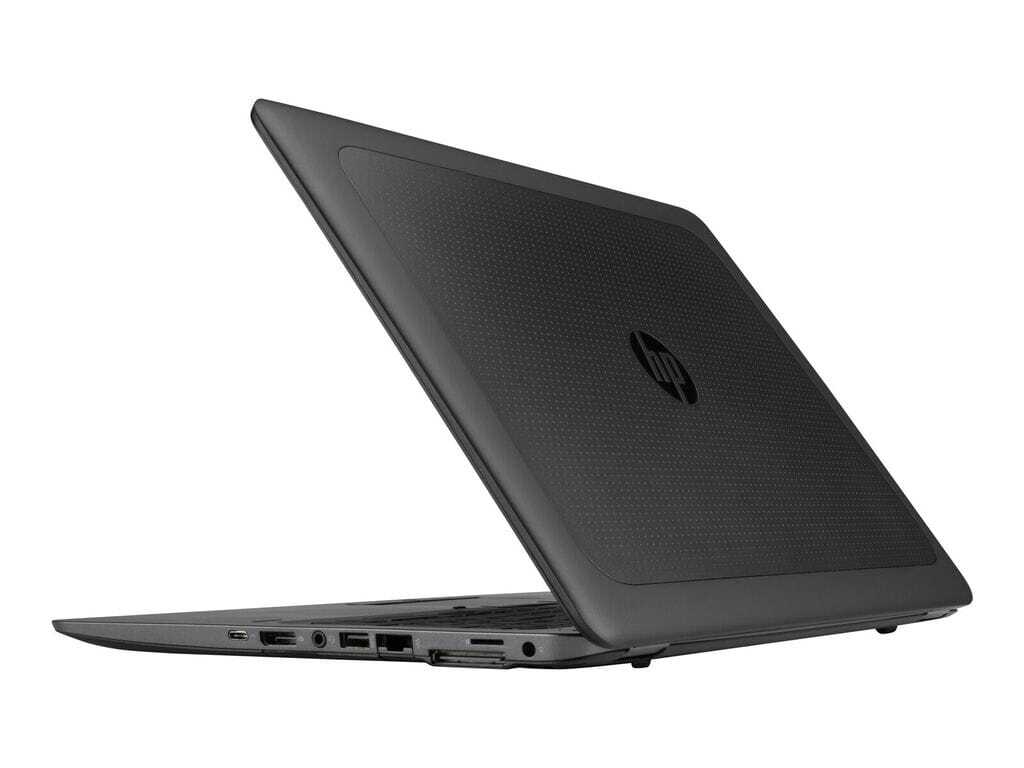

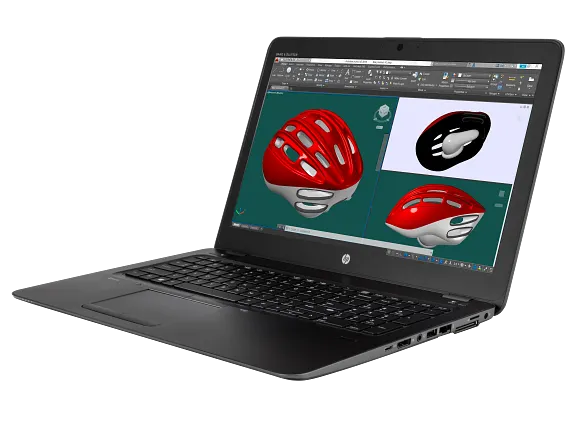

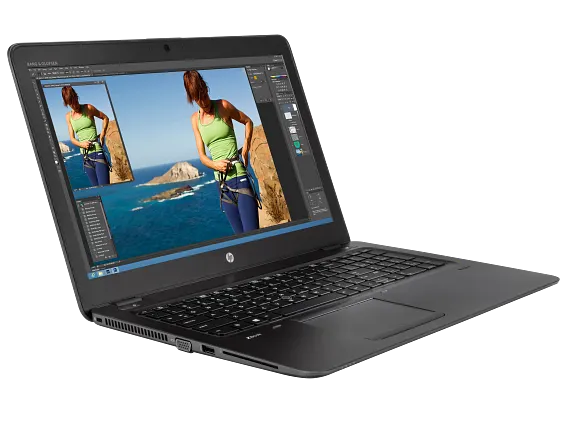

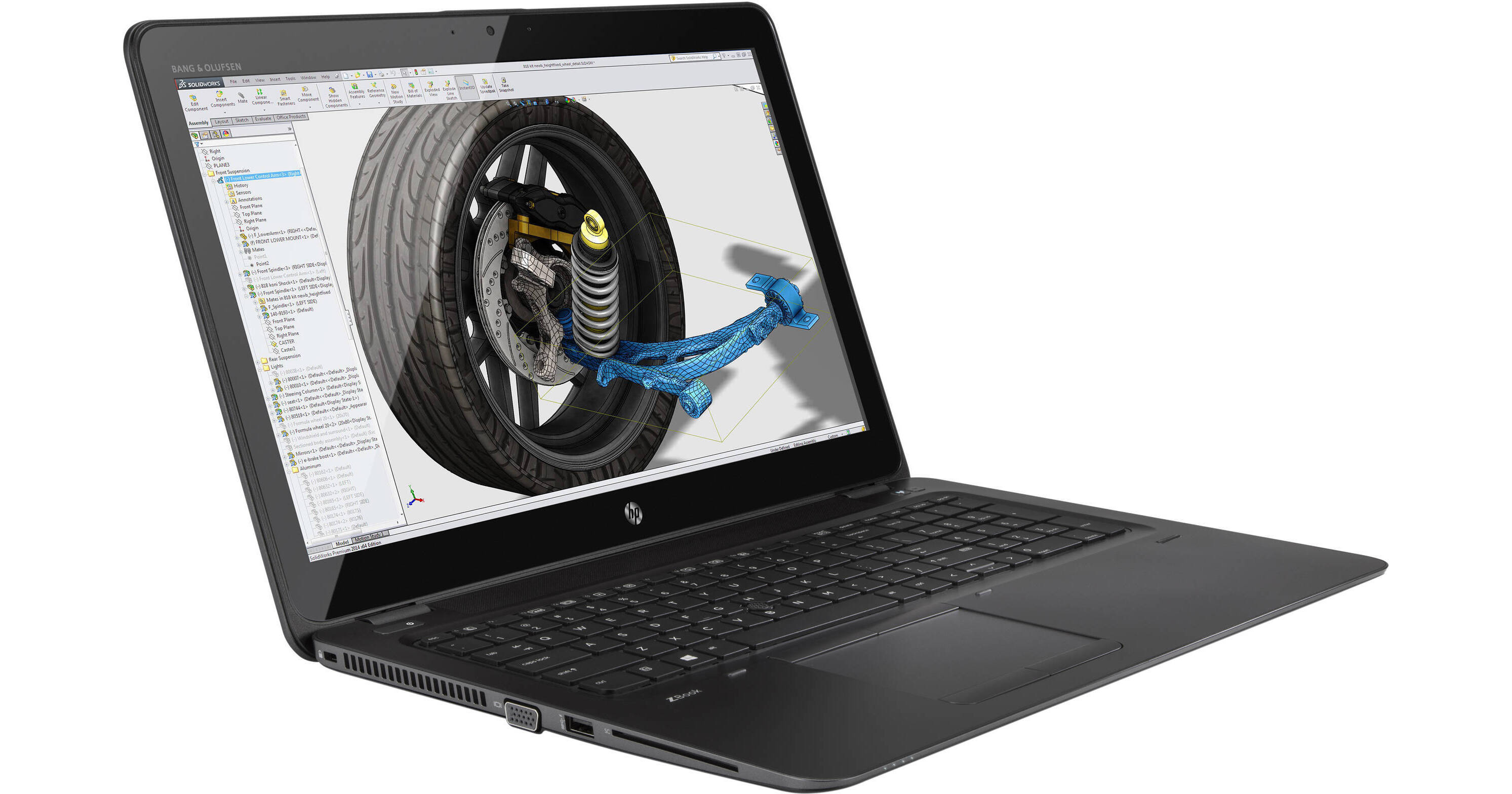

• Product Name: HP ZBook 15u G3 Mobile Workstation (Slim)
• Model: ZBook 15u G3
• Brand: HP
• Series: ZBook (Professional Workstation Series)
• Category: Slim Mobile Workstation
• Release Year: 2016
• Form Factor: 15.6-inch Laptop (slim design)
• Dimensions: 14.88 x 10.08 x 0.78 inches (378 x 256 x 19.8 mm)
• Weight: Starting at 4.14 lbs (1.88 kg)
• Color: Dark Ash Silver or Silver

Processor (CPU)

• Model: Intel Core i7-6500U (most likely for 6th Gen configuration)
• Generation: 6th Generation (Skylake)
• Cores/Threads: 2 cores, 4 threads (with Hyper-Threading)
• Base Frequency: 2.5 GHz
• Max Turbo Frequency: 3.1 GHz (single core)
• Cache: 4MB Intel Smart Cache
• Socket: BGA (soldered to motherboard)
• TDP: 15W (low-power U-series)
• Architecture: 14nm
• Intel Technologies: Intel Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, AES-NI
• Other Possible CPUs: i5-6200U, i7-6600U, i5-6300U
• Note: U-series processors are optimized for power efficiency in thin/light designs

Display

• Size: 15.6-inch diagonal
• Resolution: Full HD 1920x1080 (most common configuration)
• Panel Type: IPS Anti-Glare (typical for ZBook series)
• Touch Option: Available but not typical for this configuration
• Brightness: 250-300 nits typical
• Color Gamut: 45% NTSC (standard) or 72% NTSC (optional DreamColor display)
• Viewing Angles: 178° horizontal and vertical (IPS technology)
• Optional Displays: 4K UHD (3840x2160) available on higher-end configurations

Graphics

• Dedicated Graphics: 2GB dedicated GPU (most likely AMD Radeon R5 M430 or similar)
• Integrated Graphics: Intel HD Graphics 520 (on the i7-6500U CPU)
• AMD Radeon R5 M430 Specifications:
  • GPU Cores: 384 stream processors
  • Memory: 2GB DDR3 or GDDR5
  • Memory Interface: 64-bit
  • Core Clock: 1030 MHz (typical)
  • DirectX Support: 12
  • OpenGL Support: 4.5
• Other Possible GPUs: AMD Radeon R7 M440, AMD FirePro W4190M (2GB)
• Graphics Switching: Supports AMD Enduro or similar technology for switching between integrated and discrete graphics
• ISV Certifications: Certified for professional applications (may vary by exact GPU model)

Memory (RAM)

• Capacity: 32GB DDR4 (maximum supported configuration)
• Type: DDR4-2133 (non-ECC, unbuffered)
• Slots: 2x SO-DIMM slots (user accessible)
• Configuration: Likely 2x16GB modules for dual-channel operation
• Maximum Supported: 32GB (2x16GB) - this is the maximum for 6th Gen Intel platforms
• Memory Technology: Dual-channel architecture (when using 2 identical modules)
• Speed: 2133MHz (standard for Skylake processors)
• Note: 32GB is excellent for virtualization, large datasets, and demanding applications

Storage Configuration

• Primary Storage (SSD): 128GB Solid State Drive
• Secondary Storage (HDD): 1TB Hard Disk Drive (7200RPM likely)
• SSD Interface: M.2 SATA or PCIe NVMe (depending on exact configuration)
• SSD Form Factor: M.2 2280
• HDD Interface: SATA 6Gb/s
• HDD Form Factor: 2.5-inch
• Storage Bays:
  • 1x M.2 slot (occupied by 128GB SSD)
  • 1x 2.5-inch drive bay (occupied by 1TB HDD)
• Storage Strategy: SSD for OS and applications, HDD for data storage
• RAID Support: Not available in this dual-drive configuration

Operating System

• Pre-installed: Windows 10 Pro 64-bit (most likely)
• Downgrade Option: Windows 7 Professional 64-bit (available at time of release)
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: BitLocker, Remote Desktop, Group Policy, Domain Join
• Windows 11 Compatibility: Not officially supported (6th Gen CPU, though may work with workarounds)
• Linux Options: Certified for certain Linux distributions (RHEL, Ubuntu)

Connectivity

• Ethernet: Realtek Gigabit Ethernet (10/100/1000)
• Wireless: Intel Dual Band Wireless-AC 8260 (802.11ac, 2x2) + Bluetooth 4.2
• Wi-Fi Speed: Up to 867 Mbps (5GHz) or 300 Mbps (2.4GHz)
• Bluetooth: Bluetooth 4.2 with A2DP, LE support
• Optional: Mobile broadband (LTE) available as option

Ports & Connectors

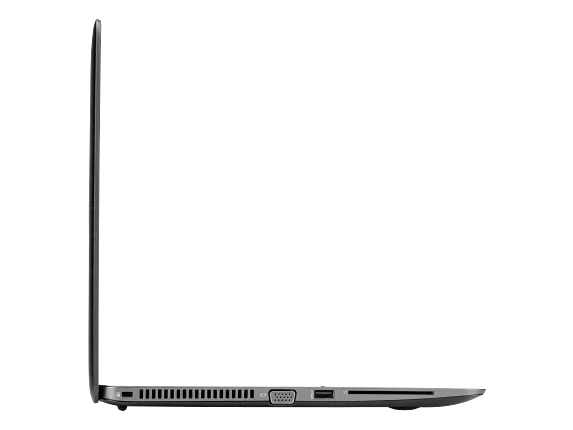

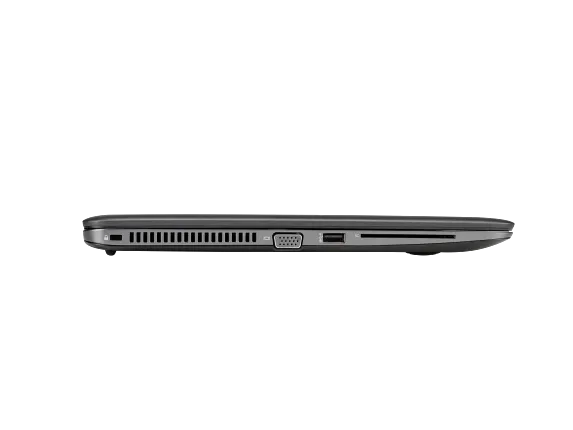

• Left Side:
  • 1x USB 3.0 Type-C (with DisplayPort 1.2)
  • 1x USB 3.0 Type-A (with charging)
  • 1x HDMI 1.4b
  • 1x VGA port
  • 1x 3.5mm headphone/microphone combo jack
  • Smart Card reader (optional)
• Right Side:
  • 2x USB 3.0 Type-A
  • 1x RJ-45 Ethernet
  • 1x AC power connector
  • Kensington lock slot
• Docking Support: HP USB-C Dock G5 compatible, traditional docking port (optional)

Audio

• Audio System: Audio by Bang & Olufsen
• Speakers: Dual stereo speakers
• Audio Codec: Realtek ALC3246
• Microphone: Dual array digital microphones
• Audio Features: HP Noise Cancellation Software, DTS Studio Sound

Camera & Communication

• Webcam: HP Wide Vision HD camera (720p)
• Camera Features: Temporal noise reduction, low-light enhancement
• Optional: IR camera for Windows Hello facial recognition

Keyboard & Input

• Keyboard: Full-size spill-resistant keyboard with numeric keypad
• Key Travel: 1.5mm
• Backlight: White LED backlight (standard on most configurations)
• Pointing Device: HP ImagePad with multi-touch gesture support
• Touchpad Size: 105 x 70 mm

Power & Battery

• Battery Type: 3-cell, 56Wh Li-ion polymer
• Battery Options: Optional 6-cell, 83Wh extended battery
• Battery Life: Up to 10 hours (MobileMark 2014) with standard battery
• Power Adapter: 65W Smart AC adapter
• Fast Charging: Supports fast charging (90% in 90 minutes)

Security Features

• TPM: TPM 2.0 embedded security chip
• Fingerprint Reader: Optional integrated fingerprint reader
• Smart Card Reader: Optional contact smart card reader
• BIOS Security: HP Sure Start Gen4, Secure Boot, BIOS passwords
• HP Security Features: HP DriveLock, HP BIOS Configuration Utility

Software & Management

• Pre-installed Software: HP Support Assistant, HP Performance Advisor, HP Client Security Manager
• Management: HP Manageability Integration Kit
• Workstation Software: HP Remote Graphics Software (RGS) optional

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Relative Humidity: 10% to 90% (non-condensing)

Warranty & Support

• Standard Warranty: 3-year limited warranty (parts, labor, and onsite service)
• Support Hours: 24/7 for critical issues
• Onsite Service: Next business day (in supported locations)

Certifications & Compliance

• ISV Certified (for professional applications)
• MIL-STD 810G tested
• ENERGY STAR certified
• EPEAT Gold (depending on configuration)

Performance & Professional Use

• Target Use: Professional CAD, engineering, architecture, financial analysis
• Recommended For: Engineers, architects, designers, analysts requiring ISV-certified hardware
• Graphics Performance: Entry-level workstation graphics suitable for 2D CAD and light 3D
• CPU Performance: Good for general productivity and moderate multitasking
• Memory Advantage: 32GB RAM allows extensive multitasking and virtualization

Upgrade Potential

• RAM: Already at maximum capacity (32GB)
• Storage: Can upgrade both SSD (to larger capacity) and HDD (to SSD or larger HDD)
• Wi-Fi: M.2 Wi-Fi card upgradeable to newer standards
• Battery: Can upgrade to extended capacity battery

Important Notes & Recommendations

• Storage Configuration: 128GB SSD is small for modern applications; consider upgrading to 512GB or 1TB SSD
• Graphics: 2GB dedicated GPU is entry-level; suitable for 2D CAD but limited for complex 3D
• Memory: 32GB is excellent for virtualization and large datasets
• CPU Limitation: Dual-core processor may limit heavy multitasking and rendering performance
• Windows 11: Not officially supported; consider staying with Windows 10
• Professional Use: Verify ISV certifications for your specific software requirements
