Executive Summary

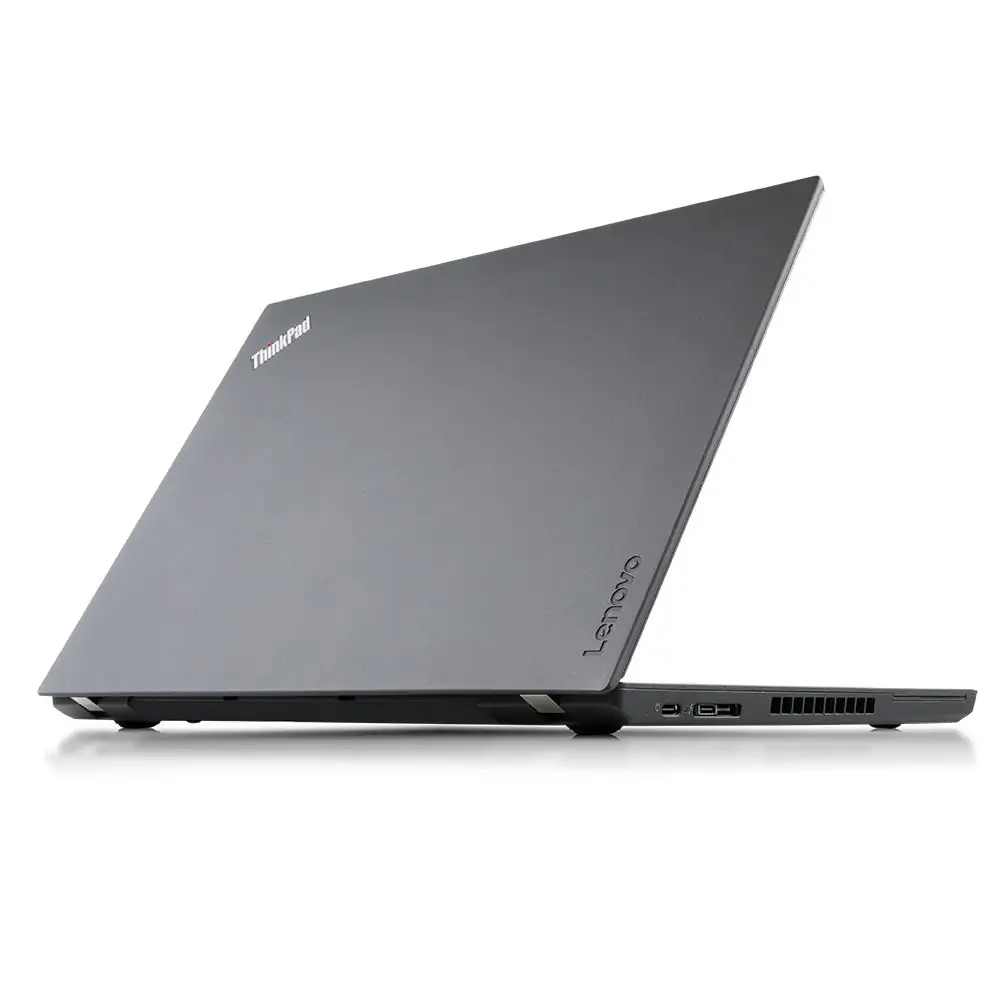

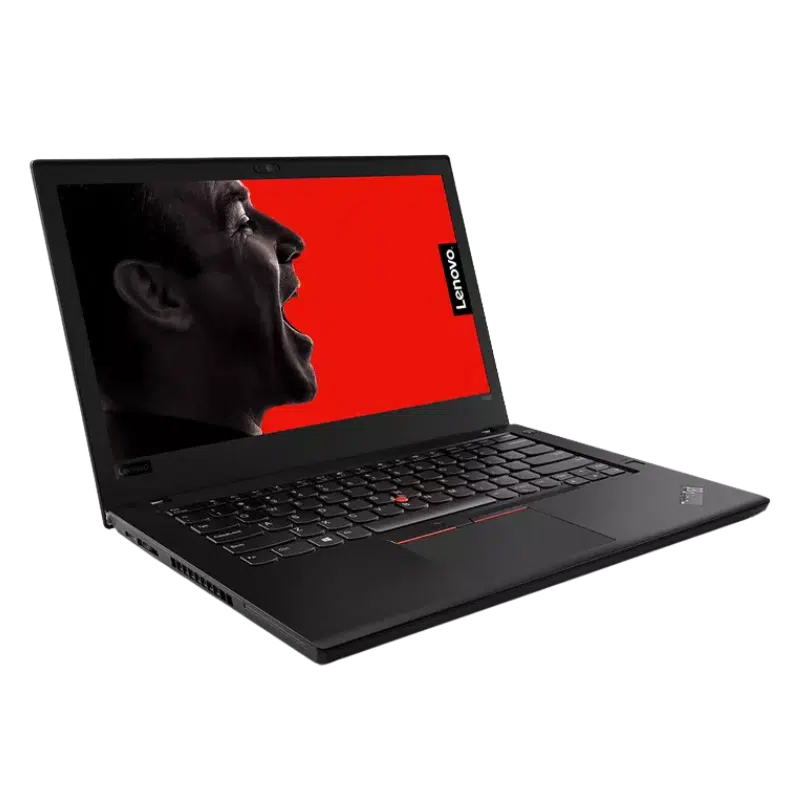

The Lenovo ThinkPad T480 represents the pinnacle of modular, serviceable business laptop design, offering an exceptional balance of performance, durability, and upgradability that has made it legendary among IT professionals and power users.

Detailed Specifications

1. Display Options

• Screen Size: 14.0-inch diagonal
• Available Resolutions:
  • HD (1366 x 768) TN panel (base model)
  • FHD (1920 x 1080) IPS Anti-Glare (recommended)
  • FHD (1920 x 1080) IPS Touchscreen (optional)
  • WQHD (2560 x 1440) IPS (rare, special configuration)
• FHD IPS Display Specifications:
  • Resolution: 1920 x 1080 pixels
  • Panel Type: IPS (In-Plane Switching)
  • Brightness: 250 nits (standard), 300 nits (optional low-power)
  • Color Gamut: 45% NTSC (standard), 72% NTSC (optional)
  • Viewing Angles: 170°/160° (horizontal/vertical)
  • Surface: Anti-glare matte finish
  • Touch Options: Available with 10-point multi-touch
• Display Features:
  • Optional Privacy Guard (screen darkens at angles)
  • Optional Dolby Vision HDR support
  • 180° hinge opening
  • Webcam shutter (ThinkShutter)

2. Processor Options

• Base Configuration: Intel Core i5-8250U (1.6GHz, up to 3.4GHz)
• Available Processors:
  • Intel Core i5-8350U (1.7GHz, up to 3.6GHz)
  • Intel Core i7-8550U (1.8GHz, up to 4.0GHz)
  • Intel Core i7-8650U (1.9GHz, up to 4.2GHz)
• Microarchitecture: Kaby Lake R (8th Generation)
• Cores/Threads: 4 Cores, 8 Threads (all configurations)
• Cache:
  • i5: 6MB L3 Cache
  • i7: 8MB L3 Cache
• TDP: 15W (configurable up to 25W)
• Manufacturing Process: 14nm++
• Key Innovation: First generation with quad-core U-series processors
  • Double the cores of previous 7th-gen dual-core U-series
  • Significant multi-threaded performance improvement
  • Maintains same power envelope as dual-core predecessors

3. Memory Configuration

• Standard Configuration: 8GB DDR4 2400MHz (single module)
• Available Configurations: 16GB, 32GB, 64GB (maximum)
• Memory Slots: 2 x DDR4 SODIMM slots (both user-accessible)
• Memory Specifications:
  • Type: DDR4-2400 (supports DDR4-2666 with compatible modules)
  • Max Supported: 64GB (2x32GB)
  • Dual-channel support (when using 2 identical modules)
  • ECC memory not supported
• Upgrade Process:
  • Remove bottom cover (single screw holds cover)
  • Both RAM slots immediately accessible
  • No special tools required (standard Phillips screwdriver)
  • Can mix capacities but dual-channel requires matched pairs
• Recommended Configurations:
  • 16GB (2x8GB) for most professional users
  • 32GB (2x16GB) for virtualization, development, data analysis
  • 64GB (2x32GB) for extreme workloads (rare but possible)

4. Storage Options

• Primary Storage (M.2 Slot):
  • Interface: PCIe NVMe 3.0 x4 or SATA III
  • Form Factor: M.2 2280
  • Supported: NVMe SSDs (recommended) or SATA M.2 SSDs
  • Speeds: Up to 3,500 MB/s read (NVMe), 550 MB/s (SATA)
• Secondary Storage (2.5" Bay):
  • Interface: SATA III
  • Form Factor: 2.5" 7mm height
  • Supported: SSD or HDD
  • Caddy required (included with 2.5" drive configurations)
  • Can be populated even if M.2 slot is used
• Dual Storage Capability: Yes - both M.2 and 2.5" can be used simultaneously
• Recommended Configurations:
  • 512GB NVMe SSD (primary) + 1TB 2.5" SSD (secondary) - Ideal
  • 256GB NVMe SSD + 2TB 2.5" HDD - Budget capacity option
  • 1TB NVMe SSD only - Simplicity with maximum speed
• Storage Upgrade Ease:
  • Both storage bays accessible after removing bottom cover
  • No cables to disconnect (2.5" bay uses direct connector)
  • M.2 secured with single screw

5. Graphics Options

• Integrated Graphics (Standard): Intel UHD Graphics 620
  • Execution Units: 24 EUs
  • Base Frequency: 300 MHz
  • Max Dynamic Frequency: 1.15 GHz
  • Memory: Shared system memory
  • DirectX 12, OpenGL 4.6 support
• Discrete Graphics (Optional): NVIDIA GeForce MX150 2GB GDDR5
  • Architecture: Pascal (GP108)
  • CUDA Cores: 384
  • Core Clock: 937-1038 MHz (Base-Boost)
  • Memory: 2GB GDDR5 @ 6008 MHz
  • Memory Interface: 64-bit
  • Memory Bandwidth: 48.1 GB/s
  • TDP: 25W (full version, not the 8W "Max-Q")
• Graphics Switching: NVIDIA Optimus technology
  • Automatically switches between integrated and discrete GPU
  • Conserves battery when high performance not needed
  • Seamless to user (no reboot required)
• Performance Comparison:
  • Intel UHD 620: Suitable for business applications, 4K video playback
  • MX150: 3-4x faster, can handle light gaming, CAD, video editing

6. Battery System (Dual-Battery Design)

• Internal Battery: 24Wh lithium-ion (non-removable)
• External Battery Options:
  • 24Wh (3-cell) - Standard
  • 48Wh (6-cell) - Extended (extends out back)
  • 72Wh (6-cell) - High capacity (extends out back)
• Total Capacity Options:
  • 48Wh (24Wh internal + 24Wh external)
  • 72Wh (24Wh internal + 48Wh external)
  • 96Wh (24Wh internal + 72Wh external) - Maximum
• Hot-Swappable: Yes - external battery can be replaced without shutting down
  • Internal battery provides backup power during swap
  • Critical for mission-critical applications
• Battery Life Estimates:
  • Standard 48Wh: 8-10 hours (general use)
  • Extended 72Wh: 12-15 hours (general use)
  • Maximum 96Wh: 16-20+ hours (general use)
• Charging:
  • Supports rapid charge (80% in 1 hour)
  • Can charge via USB-C (65W adapter recommended)
  • Optional 135W adapter for faster charging with GPU models

7. Connectivity & Ports

• Left Side:
  1. 2 x USB-C/Thunderbolt 3 ports (Power Delivery, DisplayPort)
  2. 1 x USB 3.1 Gen 1 (always-on charging)
  3. 1 x HDMI 1.4b
  4. 1 x Ethernet (RJ-45)
  5. Headphone/Microphone combo jack
• Right Side:
  1. 1 x USB 3.1 Gen 1
  2. Kensington lock slot
  3. Smart Card reader (optional)
  4. MicroSD card reader (SDXC supported)
• Rear: External battery compartment (for extended batteries)
• Wireless Connectivity:
  • Wi-Fi: Intel 8265 AC (2x2) or optional AX200 Wi-Fi 6
  • Bluetooth: 4.2 or 5.0 with newer Wi-Fi cards
  • WWAN: Optional 4G LTE with SIM slot (Fibocom L850-GL or similar)
• Port Advantages:
  • Dual Thunderbolt 3 for docking/charging
  • Dedicated Ethernet (no dongle needed)
  • Full-size HDMI for presentations
  • MicroSD for camera cards (with adapter)
  • Legacy USB-A ports for existing peripherals

8. Keyboard, TrackPoint & Input

• Keyboard: Legendary ThinkPad keyboard
  • Layout: Spill-resistant, 6-row with dedicated media keys
  • Key Travel: 1.8mm (excellent for a laptop)
  • Backlighting: Optional white LED (single-color)
  • Durability: Rated for 10 million keystrokes
  • Features: Drain holes for liquid spills, concave keycaps
• TrackPoint: The iconic red pointing stick
  • Located between G, H, B keys
  • Three buttons above touchpad
  • Pressure-sensitive for precise cursor control
  • Beloved by many ThinkPad users for ergonomics
• Touchpad: Precision touchpad with physical buttons
  • Glass surface with multi-touch gestures
  • Integrated with TrackPoint buttons
  • Windows Precision drivers
• Biometric Security:
  • Fingerprint reader (optional, on palm rest)
  • IR camera with Windows Hello facial recognition (optional)
  • Smart Card reader (optional, for corporate authentication)
• Webcam: 720p HD camera with ThinkShutter privacy cover

9. Design & Durability

• Materials: Glass-fiber reinforced plastic with magnesium roll cage
• Dimensions:
  • With 24Wh battery: 336.6 x 232.5 x 19.95 mm
  • With 48Wh/72Wh battery: 336.6 x 238.5 x 19.95 mm (extends out back)
• Weight:
  • Starting at 1.58 kg (3.48 lbs) with 24Wh battery
  • Approx. 1.67 kg (3.68 lbs) with 48Wh battery
  • Approx. 1.79 kg (3.95 lbs) with 72Wh battery
• Color: Classic ThinkPad black with matte finish
• Build Quality:
  • Magnesium alloy roll cage for structural rigidity
  • Glass-fiber reinforced plastic case
  • Spill-resistant keyboard with drainage channels
  • Reinforced ports and hinges
• Durability Testing: MIL-STD 810G certified
  • Temperature: -20°C to 60°C operating
  • Humidity: 10% to 90% non-condensing
  • Vibration: 0.3 Grms, 5-500 Hz, 30 min/axis
  • Shock: 40G operational, 60G non-operational

10. Security Features

• Hardware Security:
  • dTPM 2.0 (discrete Trusted Platform Module)
  • Kensington lock slot
  • Privacy filter options
• Biometric Authentication:
  • Fingerprint reader (Match-on-Chip technology)
  • IR camera with Windows Hello facial recognition
• Privacy Features:
  • ThinkShutter camera cover (manual slide)
  • Optional PrivacyGuard display
  • Microphone mute button (optional)
• Software Security:
  • Lenovo BIOS with secure boot
  • Intel vPro available on some configurations
  • Computrace support for asset tracking

Performance & Upgradability

CPU Performance (8th Gen Quad-Core Advantage):

• Core i5-8250U vs Previous Gen i5-7300U:
  • Single-core: Similar performance
  • Multi-core: 70-90% improvement (4 cores vs 2 cores)
• Real-World Impact:
  • Much better multitasking capability
  • Faster compilation for developers
  • Better performance in multi-threaded applications
  • Improved responsiveness with multiple applications open
• Thermal Considerations:
  • Can be configured for higher TDP (up to 25W) in BIOS
  • Thermal paste replacement recommended for optimal performance
  • Undervolting possible for better thermals and battery

Upgrade Paths (Exceptional for a Business Laptop):

• RAM: Up to 64GB DDR4 (2x32GB) - Massive upgrade from base 8GB
• Storage: Dual storage capability (NVMe + 2.5" SATA)
  • Can start with small SSD and add large HDD later
  • Can upgrade NVMe SSD to faster/larger model
  • Can convert from HDD to SSD in 2.5" bay
• Wi-Fi: Can upgrade to Intel AX200/AX210 for Wi-Fi 6/6E
• Battery: External battery easily replaceable
• Display: Can upgrade from HD to FHD IPS (requires new panel and cable)

Thermal Management:

• Cooling System: Single heat pipe, single fan design
  • Adequate for U-series processors
  • Can be upgraded with dual heat pipe from T490 (with modification)
  • Fan replacement is straightforward
• Thermal Improvements:
  • Thermal paste replacement (Arctic MX-4 or similar recommended)
  • Dust cleaning from heatsink fins
  • Undervolting via ThrottleStop or Intel XTU

Target Market & Use Cases

Ideal Users:

• IT Professionals: Who value repairability and standardization
• Business Users: Needing all-day battery life and durability
• Developers: Appreciating the keyboard and upgradability
• Students: In technical fields needing a reliable machine
• Field Workers: Requiring durability and connectivity options
• Enterprise Deployments: Standardized corporate fleets

Recommended Configurations:

• Base Business User: i5, 16GB RAM, 256GB NVMe SSD, FHD IPS, 72Wh battery
• Developer: i7, 32GB RAM, 512GB NVMe + 1TB 2.5" SSD, FHD IPS
• Field Technician: i5, 16GB RAM, 512GB SSD, WWAN, 72Wh battery, MX150 optional
• Student: i5, 8GB RAM (upgradable), 256GB SSD (with empty 2.5" bay for expansion)

Comparison with Other ThinkPads

vs. ThinkPad T480s (Slim version):

• T480 Advantages: Dual storage, dual RAM slots, hot-swappable battery, Ethernet port
• T480s Advantages: Lighter (1.32 kg), thinner, better materials (carbon fiber), faster RAM
• Verdict: T480 for maximum upgradability, T480s for portability

vs. ThinkPad T490 (Successor):

• T480 Advantages: Dual storage, hot-swappable battery, two RAM slots (vs one soldered in T490)
• T490 Advantages: Lighter, newer CPU (10th gen), better display options, Wi-Fi 6 optional
• Verdict: T480 better for upgradability, T490 better for out-of-box experience

vs. ThinkPad X1 Carbon (Premium):

• T480 Advantages: Much more upgradable, cheaper, Ethernet port, hot-swappable battery
• X1 Carbon Advantages: Much lighter (1.13 kg), premium materials, better display options
• Verdict: T480 for practicality and value, X1 Carbon for premium portability

Common Issues & Solutions

1. Thunderbolt 3 Firmware Issues:

• Symptoms: Charging issues, docking station problems, port failure
• Cause: Early firmware had bugs, could lead to hardware failure
• Solution:
  • Update Thunderbolt firmware to latest version
  • Lenovo released repair program for affected units
  • Check if unit was already repaired under warranty

2. Display Cable Wear (Similar to Flexgate):

• Symptoms: Flickering display, artifacts, backlight issues when opening/closing lid
• Cause: Thin display cable wears from repeated flexing
• Solution:
  • Replace display cable (inexpensive part)
  • Be gentle when opening/closing lid

3. Battery Threshold Management:

• Issue: Batteries may not charge to 100% or discharge properly
• Solution:
  • Use Lenovo Vantage software to set charging thresholds
  • Reset battery gauge (disconnect both batteries, hold power button)
  • Update power management driver

4. Thermal Performance:

• Symptoms: Thermal throttling, fan constantly running
• Solutions:
  • Repaste CPU with quality thermal compound
  • Clean heatsink and fan
  • Undervolt CPU using ThrottleStop
  • Ensure BIOS is updated

Upgrade Guide

Essential Upgrades:

1. RAM: Upgrade to 16GB or 32GB (2x8GB or 2x16GB DDR4-2400)
2. Storage: Add NVMe SSD (Samsung 970 EVO, WD SN750) and/or 2.5" SSD
3. Display: Upgrade to FHD IPS if not already equipped (requires panel and cable)
4. Wi-Fi: Upgrade to Intel AX200 for Wi-Fi 6 (massive improvement)

Optional Upgrades:

• Backlit Keyboard: If not already equipped
• IR Camera: For Windows Hello facial recognition
• WWAN: Add 4G LTE module (requires antenna installation)
• Thermal: Replace thermal paste, consider T490 heatsink upgrade

Tools Needed:

• Phillips #00 screwdriver
• Plastic spudger or guitar pick
• Anti-static wrist strap (recommended)
• Small container for screws

Long-Term Reliability & Support

Build Quality:

• Expected Lifespan: 5-7 years with proper maintenance
• Repairability: Excellent - most components user-replaceable
• Parts Availability: Good - widespread aftermarket support
• Community Support: Excellent - large ThinkPad enthusiast community

Software Support:

• Windows: Officially supports Windows 10, compatible with Windows 11
• Linux: Excellent compatibility - Ubuntu, Fedora, etc.
• Drivers: Long-term driver support from Lenovo
• BIOS Updates: Regular updates for security and compatibility

Environmental Impact

Sustainability Features:

• Longevity: Designed for long service life
• Repairability: Easy repair reduces e-waste
• Recyclability: Materials labeled for recycling
• Packaging: Recyclable materials

Energy Efficiency:

• ENERGY STAR certified
• EPEAT Silver rating (varies by configuration)
• Power-efficient components
• Configurable power management

Cost Analysis & Current Market Value

Original Pricing (2018):

• Base Model (i5, 8GB, 256GB HDD): $900-$1,100
• Mid-range (i5, 16GB, 512GB SSD, FHD): $1,200-$1,500
• High-end (i7, 16GB, 1TB SSD, MX150, FHD): $1,600-$2,000

Current Market Value (Used, 2024):

• Base Model (i5, 8GB, HDD): $200-$300
• Mid-range (i5, 16GB, SSD, FHD): $300-$450
• High-end (i7, 16GB, SSD, MX150): $400-$600
• Factors Affecting Value:
  • Battery health (external battery condition)
  • Display type (FHD IPS adds significant value)
  • SSD vs HDD (SSD strongly preferred)
  • Physical condition (keyboard wear, chassis scratches)
  • Included accessories (charger, dock)

Pros & Cons Summary

Advantages:

• Exceptional upgradability (RAM, dual storage, Wi-Fi, battery)
• Legendary ThinkPad keyboard with TrackPoint
• Dual-battery system with hot-swap capability
• Comprehensive port selection (Ethernet, HDMI, USB-A, Thunderbolt 3)
• MIL-STD 810G durability
• Excellent Linux compatibility
• Good performance with 8th-gen quad-core CPUs
• Easy to repair and maintain
• Strong community support
• Good value on used market

Disadvantages:

• Thicker and heavier than modern ultrabooks
• Display options limited (color gamut not great)
• Thunderbolt 3 firmware issues on early units
• Battery bump with extended batteries
• Plastic build feels less premium than competitors
• Webcam only 720p
• Thermal limitations with sustained loads
• No USB-C charging on right side (only left)
• NVIDIA MX150 is entry-level discrete GPU

Final Recommendation & Verdict

Buy the ThinkPad T480 If:

• You value upgradability and repairability above all else
• You need all-day battery life with hot-swap capability
• You appreciate the ThinkPad keyboard and TrackPoint
• You want a durable business laptop that will last years
• You're comfortable with upgrades and maintenance
• Your budget is $300-$500 for a capable business laptop
• You need Ethernet and legacy ports without dongles
• You plan to run Linux

Consider Alternatives If:

• You prioritize thinness and light weight above all
• You need excellent display quality (color accuracy, brightness)
• You want modern premium materials (aluminum, carbon fiber)
• Your budget allows for newer models with better performance
• You need high-performance graphics for gaming or 3D work
• You prefer a laptop that works perfectly out of the box with no upgrades
• You want the latest connectivity (Wi-Fi 6E, Thunderbolt 4)

Best Value Configuration to Look For:

• Core i5-8250U or i5-8350U (i7 not worth premium for most users)
• 16GB RAM (or 8GB with empty second slot for upgrade)
• 256GB or 512GB NVMe SSD
• FHD IPS display (essential upgrade over HD TN)
• 72Wh external battery (for maximum battery life)
• Backlit keyboard (nice to have)
• Fingerprint reader (for convenience)

Overall Assessment:

9.0/10 for Practicality and Long-Term Value in 2024

The ThinkPad T480 represents perhaps the last great truly upgradable business laptop before the industry shift toward soldered, non-repairable designs. Its combination of 8th-gen quad-core performance, exceptional upgradability (dual storage, dual RAM, replaceable batteries), comprehensive port selection, and legendary ThinkPad build quality make it an outstanding value in today's used market.
