Executive Summary

The HP EliteBook x360 1030 G4 is a premium business convertible laptop that combines enterprise-grade security with versatile 360-degree hinge functionality. Designed for executives and mobile professionals who require both tablet flexibility and laptop productivity, this device features robust security measures including HP Sure Start Gen5 BIOS protection and optional HP Sure View privacy screen. With its 8th Generation Intel processors, all-day battery life, and MIL-STD durability certification, the x360 1030 G4 represents HP's commitment to creating secure, reliable, and adaptable computing solutions for the modern business environment.

Detailed Specifications

1. Processor (CPU)

Generation: 8th Generation Intel Core (Whiskey Lake-U)

Available Configurations:

• Intel Core i5-8265U: 4 cores, 8 threads, 1.6-3.9 GHz (Most Common)
• Intel Core i5-8365U: 4 cores, 8 threads, 1.6-4.1 GHz (vPro available)
• Intel Core i7-8565U: 4 cores, 8 threads, 1.8-4.6 GHz
• Intel Core i7-8665U: 4 cores, 8 threads, 1.9-4.8 GHz (vPro available)

Key Features:

• Intel vPro Technology: Available on select configurations for enterprise management
• Thermal Design Power: 15W U-series processors optimized for ultrabook form factor
• Manufacturing Process: 14nm++ refined process for improved efficiency

2. Graphics

• Integrated: Intel UHD Graphics 620
• Execution Units: 24 EUs
• Graphics Clock: Up to 1150 MHz
• Display Support: Up to 3 external displays via Thunderbolt docking
• Video Outputs: DisplayPort 1.2 via Thunderbolt 3, HDMI 1.4b

Graphics Capabilities:

• Business Applications: Smooth 4K video playback, Office 365 animations
• Touch Interface: Optimized for Windows Ink and touch interactions
• External Display Support: Dual 4K displays at 60Hz via Thunderbolt dock

3. Display

• Size: 13.3-inch diagonal
• Resolution Options:
  • FHD (1920 x 1080) IPS touchscreen, 400 nits (Standard)
  • FHD (1920 x 1080) HP Sure View privacy screen, 1000 nits
  • 4K UHD (3840 x 2160) IPS touchscreen, 400 nits (Premium)
  • 4K UHD (3840 x 2160) HP Sure View privacy screen, 1000 nits
• Panel Technology: IPS, LED-backlit, 10-point multi-touch
• Color Coverage:
  • FHD: 72% NTSC (approximately 100% sRGB)
  • 4K: 72% NTSC (approximately 100% sRGB)
• Features:
  • Corning Gorilla Glass 5 with anti-smudge coating
  • Support for HP Active Pen (tilt support, 4096 pressure levels)
  • Wide viewing angles (178°/178°)

4. Memory & Storage

Memory (RAM):

• Type: LPDDR3 SDRAM
• Speed: 2133 MHz
• Configuration: Soldered on motherboard (not upgradeable)
• Maximum Capacity: 16GB
• Standard Configurations: 8GB or 16GB

Storage:

• Type: PCIe NVMe M.2 SSD
• Form Factor: M.2 2280 single-sided
• Interface: PCIe 3.0 x4
• Capacity Options: 256GB, 512GB, 1TB, 2TB
• Security Options:
  • Self-Encrypting Drive (SED) with OPAL 2.0
  • HP Drive Encryption
  • Microsoft BitLocker support

5. Design & Build Quality

• Dimensions: 308.5 x 220 x 15.9 mm (12.15 x 8.66 x 0.63 inches)
• Weight: Starting at 1.29 kg (2.84 lbs)

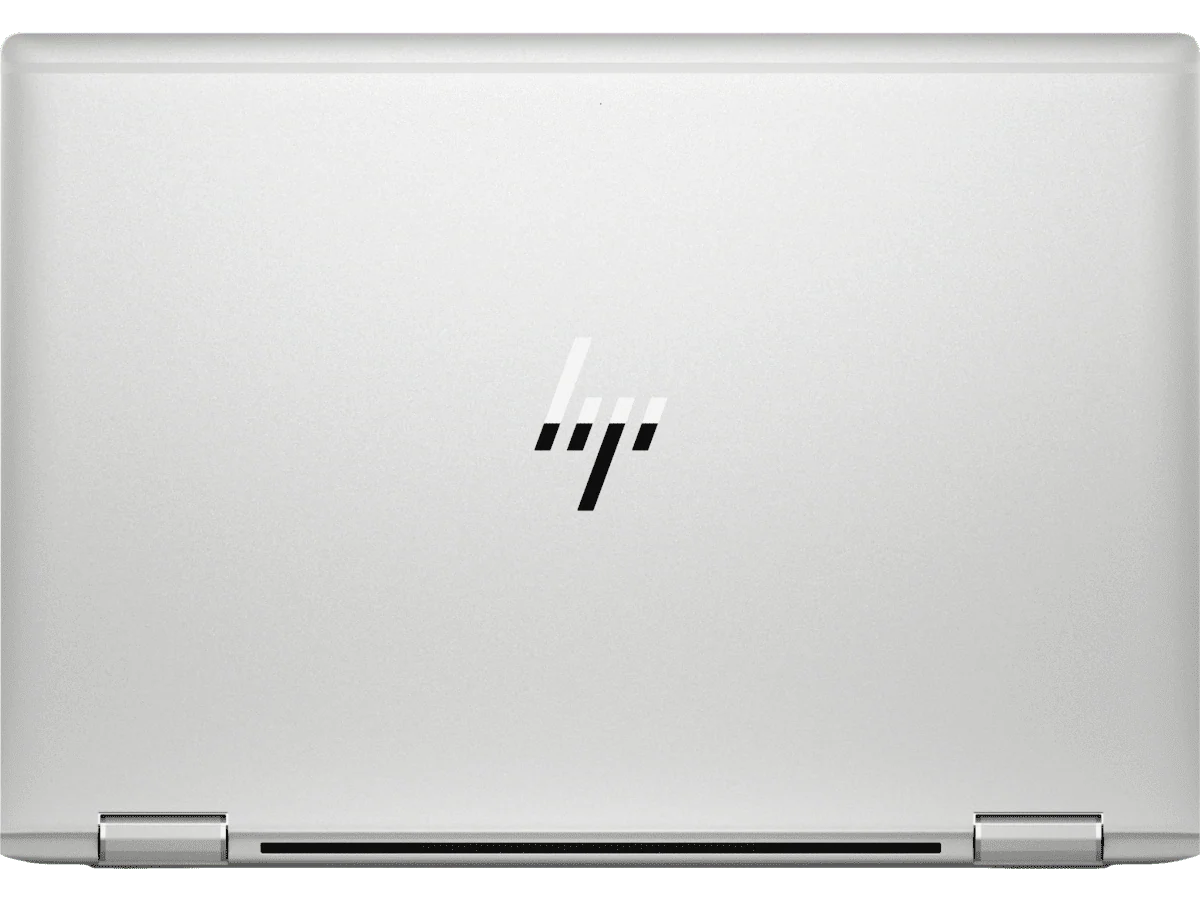

• Materials: CNC machined aluminum unibody, magnesium alloy internal frame
• Color: Natural silver
• Durability:
  • MIL-STD 810G certified (13 tests including shock, vibration, humidity)
  • HP DuraKeys and spill-resistant keyboard
  • Reinforced 360-degree hinge rated for 25,000 open/close cycles

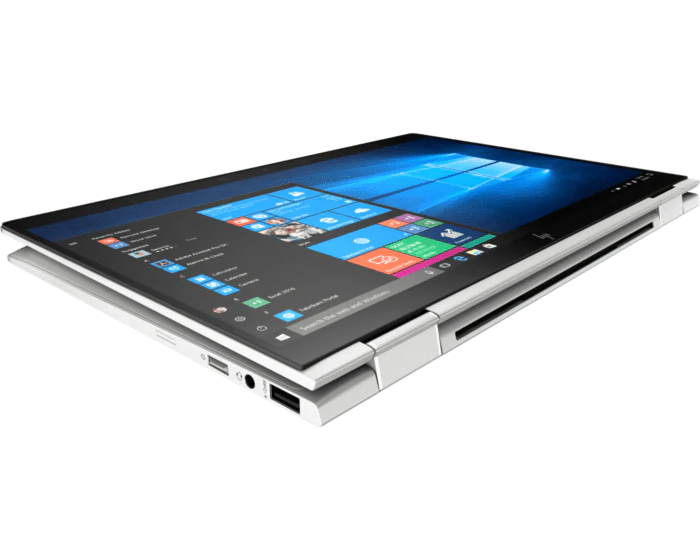

• Convertible Design: Four usage modes: laptop, tablet, tent, and stand

6. Security Features

• HP Sure Start Gen5: Self-healing BIOS with intrusion detection
• HP Sure View: Integrated privacy screen (optional)
• HP Privacy Camera: Webcam with physical shutter
• HP Sure Click: Isolated browsing environment
• HP Client Security Manager: Centralized security management

Authentication Options:

• Fingerprint reader (power button integrated)
• IR camera for Windows Hello facial recognition
• Smart Card reader (optional, NFC capable)
• Camera privacy shutter (physical, manual)
• Kensington lock slot

7. Connectivity & Ports

Left Side:

• 2 x Thunderbolt 3 (USB-C, 40 Gbps, DisplayPort, Power Delivery)
• 1 x HDMI 1.4b
• 1 x 3.5mm headphone/microphone combo jack
• 1 x Nano SIM slot (WWAN models only)

Right Side:

• 1 x USB 3.1 Gen 1 Type-A (5 Gbps)
• Optional Smart Card reader

Wireless Connectivity:

• Wi-Fi: Intel Dual Band Wireless-AC 9560 (802.11ac 2x2)
• Bluetooth: 5.0
• WWAN: Optional 4G LTE with eSIM support
• Location: GPS on WWAN models

8. Audio & Video Conferencing

• Webcam: HP Wide Vision 720p HD camera
• Camera Features:
  • Physical privacy shutter
  • IR sensor for Windows Hello (optional)
  • Wide field of view (78° diagonal)
• Microphones: Quad array digital microphones with noise reduction
• Speakers: Quad speakers by Bang & Olufsen (front-firing)
• Audio Features:
  • HP Audio Boost
  • HP Noise Cancellation software
  • DTS Studio Sound

9. Battery & Power

• Battery Capacity: 56 Wh Li-ion polymer (3-cell)
• Power Adapter: 65W USB-C slim tip adapter
• Battery Life (HP Testing):
  • Up to 16 hours (MobileMark 2014)
  • Up to 10 hours video playback
• Fast Charging: 50% charge in approximately 30 minutes
• Power Management: HP Battery Health Manager for extended battery lifespan

10. Software & Management

• Operating System: Windows 10 Pro 64-bit
• Pre-installed Software:
  • HP Client Security Manager
  • HP Sure Click
  • HP Connection Optimizer
  • HP Pen Control for Active Pen management
  • HP Privacy Camera software
• Management:
  • HP Manageability Integration Kit
  • Intel Active Management Technology (AMT) on vPro models
  • Microsoft Azure IoT Edge compatible
• Warranty: 3-year limited warranty, optional HP Care Pack services

Performance & Use Cases

Business Application Performance:

• Office Productivity: Excellent performance for Microsoft 365 applications
• Multitasking: Capable of handling multiple browser tabs and office applications
• Video Conferencing: Smooth 720p video calls with background noise reduction
• Digital Inking: Responsive pen input for note-taking and annotations

Convertible Mode Functionality:

• Tablet Mode: Full Windows tablet experience with touch and pen input
• Tent Mode: Ideal for presentations and media consumption
• Stand Mode: Useful for touch interactions without holding the device
• Laptop Mode: Traditional clamshell for productivity tasks

Key Features & Target Audience

Unique Selling Points:

• 360-Degree Convertible Design: Versatile form factor for multiple usage scenarios
• Enterprise Security: HP Sure Start Gen5 with comprehensive protection suite
• Privacy Screen Option: HP Sure View for confidential work in public spaces
• Premium Build Quality: All-metal construction with MIL-STD durability
• Pen Support: HP Active Pen with tilt recognition and palm rejection

Ideal For:

• Corporate executives and business leaders
• Consultants and frequent travelers
• Finance and legal professionals (privacy requirements)
• Educators and presenters
• Healthcare professionals for mobile charting

Limitations:

• Soldered RAM: Not upgradeable after purchase
• Graphics Performance: Integrated graphics only, not for demanding applications
• Processor Generation: 8th Gen now several generations behind
• Wi-Fi 5: Lacks Wi-Fi 6 support of newer models
• Limited Ports: Only one traditional USB-A port

Security Implementation:

• Multi-Layer Protection: Hardware, BIOS, and software security integration
• Privacy Controls: Physical camera shutter and optional privacy screen
• Enterprise Integration: Compatible with major enterprise management solutions
• Data Protection: Full disk encryption and secure boot capabilities

Modern Use Assessment (2024):

• Windows 11 Compatibility: Eligible for upgrade with TPM 2.0 and 8th Gen CPU
• Performance Today: Still capable for business applications and productivity
• Battery Degradation: May require battery replacement after 4-5 years
• Security Relevance: Enterprise security features maintain value
• Refurbished Market: Good value in enterprise refurbished space

Accessory Ecosystem:

• HP Active Pen: Tilt support, 4096 pressure levels, magnetic attachment
• Docking Solutions: Compatible with HP Thunderbolt Dock G2 and USB-C docks
• Cases & Sleeves: HP Premier Sleeve and other protective options
• Privacy Filters: Additional screen privacy accessories available

Comparison with Contemporaries:

• vs. Dell Latitude 7400 2-in-1: Comparable convertible with different security approach
• vs. Lenovo ThinkPad X1 Yoga Gen 4: Similar convertible with ThinkPad keyboard
• vs. HP EliteBook x360 1040 G5: Larger 14-inch sibling with similar features
• vs. Microsoft Surface Laptop 3: Different approach to premium business convertible

Final Verdict:

The HP EliteBook x360 1030 G4 remains a compelling business convertible laptop, particularly for organizations prioritizing security and versatility. Its combination of enterprise-grade security features (HP Sure Start Gen5, optional privacy screen), premium all-metal construction, and flexible 360-degree hinge design makes it ideal for professionals who need both laptop productivity and tablet convenience.
