Executive Summary

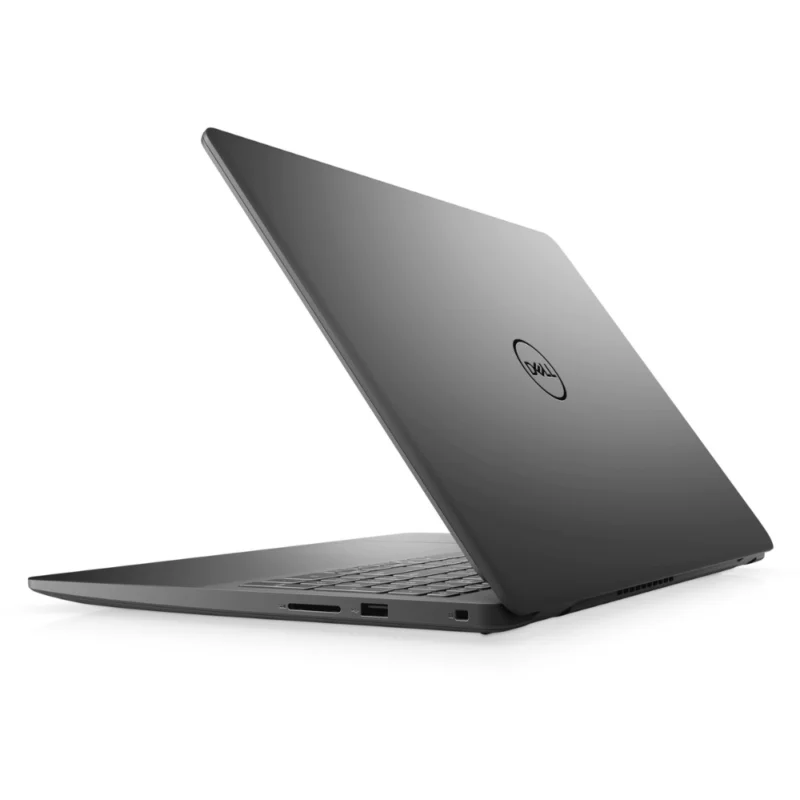

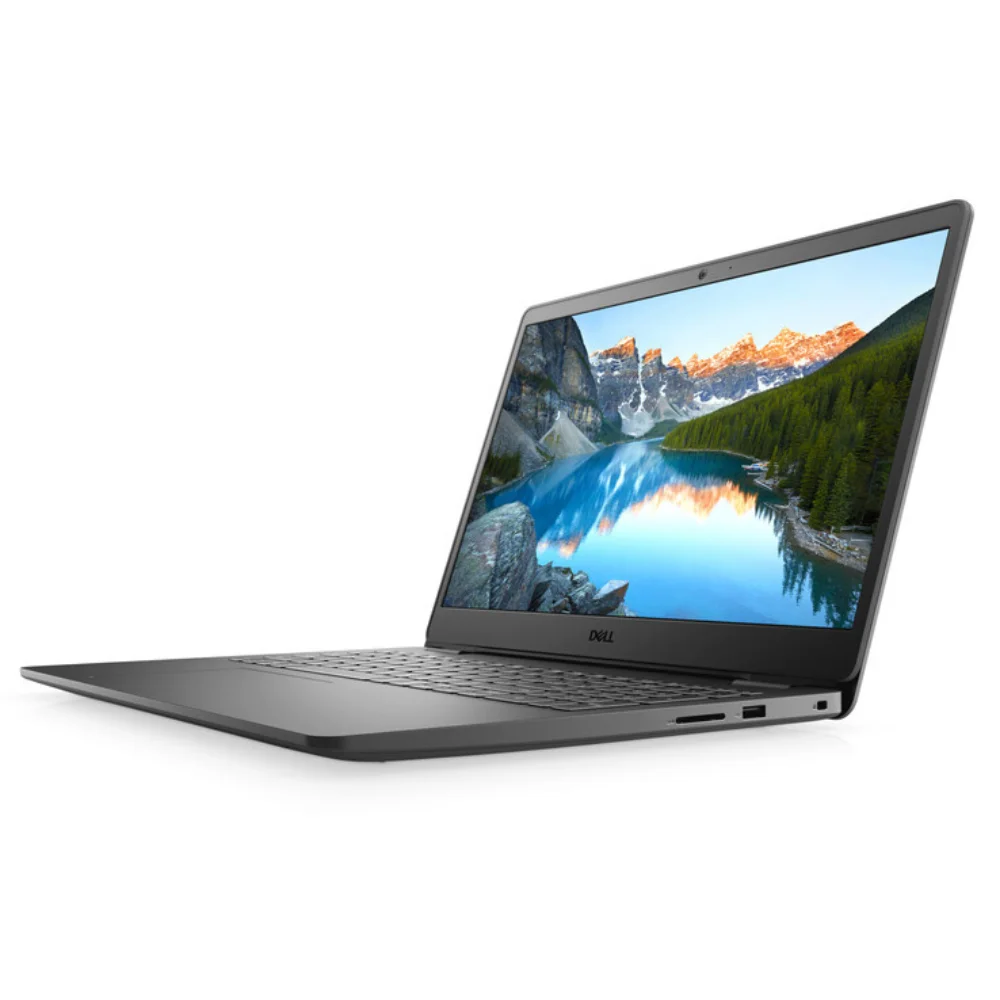

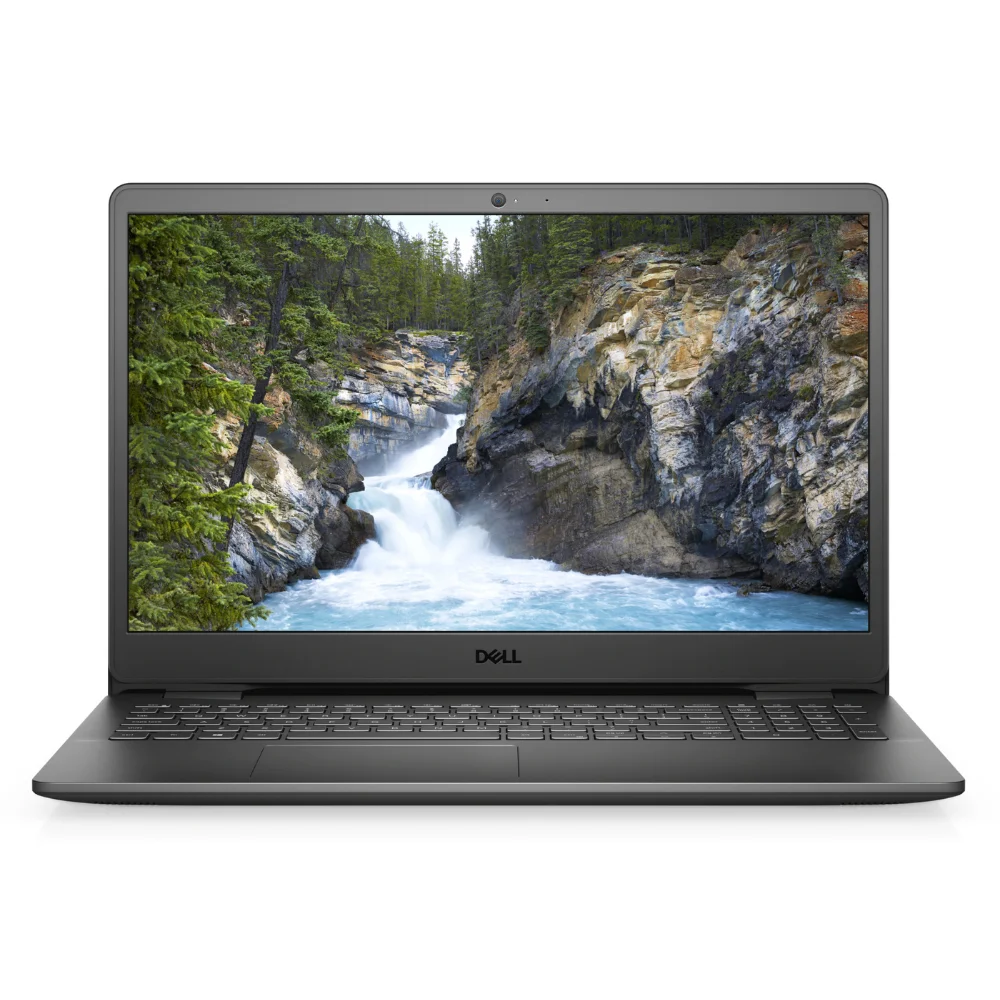

The Dell Inspiron 15 3501 is a mainstream consumer laptop that balances performance, features, and value in a familiar 15.6-inch form factor. Featuring 11th Generation Intel Tiger Lake processors with optional NVIDIA discrete graphics, this model represents Dell's entry-level to mid-range offering for students, home users, and small businesses.

Detailed Specifications

1. Processor (CPU)

Generation: 11th Generation Intel Core (Tiger Lake)

Available Configurations:

• Intel Core i3-1115G4: 2 cores, 4 threads, 3.0-4.1 GHz (Entry Level)
• Intel Core i5-1135G7: 4 cores, 8 threads, 2.4-4.2 GHz (Most Common)
• Intel Core i7-1165G7: 4 cores, 8 threads, 2.8-4.7 GHz (Performance)

Architecture Features:

• Manufacturing Process: 10nm SuperFin
• Core Architecture: Willow Cove
• Thermal Design Power: 12-28W configurable
• Integrated Graphics: Intel Iris Xe Graphics (on i5/i7 models)

2. Graphics

• Integrated: Intel UHD Graphics (i3) / Intel Iris Xe Graphics (i5/i7)
• Discrete Options:
  • NVIDIA GeForce MX330 (2GB GDDR5)
  • NVIDIA GeForce MX350 (2GB GDDR5)
• Iris Xe Specifications (i5/i7):
  • 80 execution units (i5) / 96 execution units (i7)
  • Up to 1.3 GHz clock speed
• Display Support: Up to 4 displays via HDMI/USB-C/DisplayPort

Graphics Performance:

• Integrated (UHD Graphics): Basic display output, 1080p video playback
• Integrated (Iris Xe): 2x performance over previous gen, light gaming, photo editing
• Discrete (MX330/350): Entry-level gaming, accelerated creative applications

3. Display

• Size: 15.6-inch diagonal
• Standard Configuration: FHD (1920 x 1080) IPS Anti-Glare
• Optional Configurations:
  • HD (1366 x 768) TN Anti-Glare (Entry-level models)
  • FHD (1920 x 1080) IPS Touchscreen
• Panel Technology: IPS (FHD models) / TN (HD models)
• Brightness:
  • HD TN: 220 nits
  • FHD IPS: 250 nits
• Color Coverage:
  • HD TN: 45% NTSC
  • FHD IPS: 45% NTSC (some panels may be 72% NTSC)
• Features: Anti-glare coating, WVA (Wide Viewing Angle) on IPS models

4. Memory & Storage

Memory (RAM):

• Type: DDR4 SDRAM
• Speed: 3200 MHz
• Configuration: 2 x SO-DIMM slots (both user-accessible)
• Maximum Capacity: 16GB (2x8GB)
• Standard Configurations: 4GB, 8GB, 16GB
• Dual Channel: Supported for optimal performance

Storage:

• Primary Storage: M.2 PCIe NVMe SSD
• Secondary Storage: Optional 2.5-inch SATA HDD/SSD
• Standard Configurations:
  • 256GB PCIe NVMe SSD
  • 512GB PCIe NVMe SSD
  • 256GB SSD + 1TB HDD (dual storage)
• Interface:
  • M.2: PCIe 3.0 x4 (up to 3500 MB/s)
  • 2.5-inch: SATA III (6 Gbps)

5. Design & Build

• Dimensions: 362 x 249 x 19.9 mm (14.25" x 9.80" x 0.78")
• Weight: Starting at 1.83 kg (4.03 lbs)
• Materials: Plastic chassis with textured finish
• Color: Black or Platinum silver
• Keyboard: Full-size with numeric keypad, optional backlight
• Key Travel: 1.3-1.5mm
• Touchpad: Precision touchpad, 105 x 70 mm
• Webcam: 720p HD camera with dual microphones

6. Connectivity & Ports

Left Side:

• 1 x Power adapter port
• 1 x HDMI 1.4
• 1 x USB 3.2 Gen 1 Type-A (5 Gbps)
• 1 x USB 3.2 Gen 1 Type-C (5 Gbps, DisplayPort)
• 1 x 3.5mm headphone/microphone combo jack

Right Side:

• 1 x USB 2.0 Type-A
• 1 x SD card reader
• Kensington lock slot

Back Edge:

• 1 x RJ-45 Gigabit Ethernet

Wireless Connectivity:

• Wi-Fi: Intel Wi-Fi 6 AX201 (802.11ax 2x2) or Realtek 8821CE (802.11ac 1x1)
• Bluetooth: 5.1

7. Audio & Multimedia

• Speakers: Dual stereo speakers
• Audio Technology: Waves MaxxAudio Pro
• Speaker Power: 2W x 2
• Microphones: Dual array digital microphones
• Audio Features:
  • MaxxAudio Pro software enhancement
  • Audio streaming via Bluetooth 5.1

8. Battery & Power

• Battery Options:
  • 3-cell, 42 Wh lithium-ion (Standard)
  • 4-cell, 54 Wh lithium-ion (Optional, longer battery life)
• Power Adapter: 65W AC adapter
• Battery Life (Dell Testing):
  • 42 Wh: Up to 7 hours (video playback)
  • 54 Wh: Up to 9 hours (video playback)
• Real-World Battery: 4-6 hours mixed usage (42Wh), 5-7 hours (54Wh)

9. Software & Support

• Operating System: Windows 10 Home 64-bit (Windows 11 upgrade ready)
• Pre-installed Software:
  • Dell Mobile Connect
  • SupportAssist
  • MyDell
  • McAfee LiveSafe (trial)
• Warranty: 1-year limited hardware warranty (optional extensions available)
• Support: Dell SupportAssist automated support

Performance Characteristics

CPU Performance:

• Core i3-1115G4: Suitable for basic computing, web browsing, office applications
• Core i5-1135G7: Balanced performance for multitasking, productivity, light creative work
• Core i7-1165G7: Best performance for demanding applications, faster rendering/encoding

Graphics Performance Tiers:

• Integrated UHD Graphics (i3): Basic display, video playback up to 1080p
• Integrated Iris Xe (i5/i7): Light gaming (esports titles), photo editing, 4K video playback
• Discrete MX330/350: Entry-level gaming, accelerated video editing, CAD applications

Modern Use Assessment (2024)

Still Capable For:

• General Productivity: Office applications, web browsing, email
• Student Use: Research, document writing, online learning
• Media Consumption: Video streaming, music, photo viewing
• Light Creative Work: Photo editing, basic video editing, graphic design
• Casual Gaming: Esports titles, older games, indie titles

Limitations in 2024:

• Display Quality: Base HD TN panel is poor by modern standards
• Battery Life: Moderate at best, especially with 42Wh battery
• Build Quality: Plastic construction feels less premium
• Thermal Performance: Can get warm under sustained load
• Performance Ceiling: Limited by 4-core CPU design

Essential Configuration for 2024:

• Minimum Recommended: i5-1135G7, 8GB RAM, 256GB SSD, FHD IPS display
• Ideal Configuration: i5-1135G7, 16GB RAM, 512GB SSD, FHD IPS, MX350

Upgrade Potential

User-Upgradeable Components:

• Memory: Two accessible SO-DIMM slots (easy upgrade)
• Storage: M.2 slot and 2.5-inch bay accessible via bottom panel
• Wireless Card: M.2 slot for Wi-Fi card replacement
• Battery: User-replaceable with proper tools

Recommended Upgrades:

• RAM Upgrade: From 4GB/8GB to 16GB for better multitasking
• Storage Upgrade: Add secondary HDD/SSD or replace primary with larger NVMe
• Wi-Fi Card: Upgrade to Intel AX210 for Wi-Fi 6E support
• Operating System: Windows 11 upgrade for latest features

Comparison with Competitors

vs. HP Pavilion 15:

• HP Advantages: Often better speakers, different design aesthetic
• Dell Advantages: Better upgradeability, Ethernet port, SD card reader

vs. Lenovo IdeaPad 5:

• Lenovo Advantages: Often better keyboards, different design
• Dell Advantages: More comprehensive port selection, easier upgrades

vs. Acer Aspire 5:

• Acer Advantages: Often better pricing, similar performance
• Dell Advantages: Dell support ecosystem, build quality

Target Audience

Ideal For:

• Students: Affordable, capable of handling coursework
• Home Users: General computing, media consumption, web browsing
• Small Businesses: Basic productivity, customer service, point-of-sale
• Budget-Conscious Buyers: Good value for performance
• First-Time Laptop Owners: Easy to use, reliable performance

Not Ideal For:

• Gamers: Limited by entry-level graphics (except casual gaming)
• Creative Professionals: Display color accuracy may be insufficient
• Frequent Travelers: Relatively heavy, moderate battery life
• Performance Enthusiasts: Limited to 4-core CPUs

Market Value & Buying Advice (2024)

Current Market Prices (Used/Refurbished):

• i3/4GB/256GB/HD: $200-250 (Basic configurations, limited usefulness)
• i5/8GB/256GB/FHD: $250-350 (Most common, good value)
• i5/16GB/512GB/FHD/MX350: $350-450 (Premium configuration)
• i7/16GB/512GB/FHD/MX350: $400-500 (High-end configuration)

What to Check Before Buying:

• Display Type: Ensure FHD IPS, avoid HD TN panels
• Battery Health: Check cycle count and remaining capacity
• Keyboard Condition: Test all keys, check backlight if present
• Port Functionality: Test all USB ports, HDMI, Ethernet
• Thermal Performance: Listen for fan noise, check for overheating

Bottom Line: The Inspiron 15 3501 is a capable, value-oriented laptop that serves well for basic to moderate computing needs. Buy it if you find a well-configured model at a good price and value upgradeability. Consider alternatives if you prioritize premium build quality, exceptional battery life, or higher performance for demanding applications.
