Executive Summary

The 2017 15-inch MacBook Pro represents Apple's second iteration of their controversial redesign that began in 2016, marking a pivotal moment in professional laptop evolution with both significant improvements and persistent compromises. This model embraces the all-USB-C future with four Thunderbolt 3 ports, introduces the innovative but divisive Touch Bar, and incorporates True Tone display technology for more natural color rendering. Powered by 7th-generation Kaby Lake processors with improved integrated graphics and more capable AMD Radeon Pro discrete GPUs, it delivers meaningful performance gains over its 2016 predecessor while maintaining the sleek, minimalist design that polarized professionals. The 2017 model addresses some early complaints with increased base storage options and better battery life, yet inherits the controversial butterfly keyboard that would plague this generation with reliability issues. As the last 15-inch MacBook Pro before the 2018 redesign with 8-core processors and before Apple Silicon, this machine occupies a transitional space - offering modern connectivity and display technology while constrained by Intel's stagnant quad-core mobile processor lineup and Apple's keyboard design missteps.

Detailed Specifications

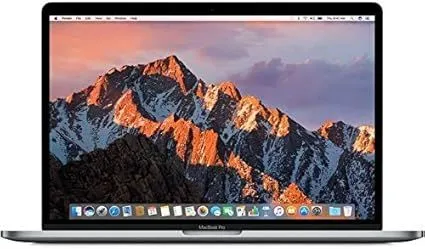

1. Display Technology

• Screen Size: 15.4-inch diagonal (active area)
• Resolution: 2880 x 1800 pixels (Retina)
• Pixel Density: 220 pixels per inch (PPI)
• Aspect Ratio: 16:10 (productivity optimized)
• Display Technology: IPS (In-Plane Switching) LED-backlit
• Brightness: 500 nits (25% brighter than 2015 model)
• Color Gamut: P3 wide color gamut (first in 15-inch MacBook Pro)
• Contrast Ratio: 1300:1 (improved from 900:1 in 2015)
• Viewing Angles: 178° horizontal and vertical
• Refresh Rate: 60Hz
• True Tone Technology: Yes - automatically adjusts white balance to ambient light
• Anti-reflective Coating: Improved coating with reduced reflectivity
• Key Improvements over 2015:
  • 25% brighter (500 nits vs 300 nits)
  • P3 wide color gamut vs sRGB
  • True Tone automatic white balance
  • Higher contrast ratio (1300:1 vs 900:1)
  • Better anti-reflective coating

2. Processor Options

• Base Configuration: Intel Core i7-7700HQ (2.8GHz, turbo up to 3.8GHz)
• High-end Configuration: Intel Core i7-7920HQ (3.1GHz, turbo up to 4.1GHz)
• Microarchitecture: Kaby Lake (7th Generation)
• Cores/Threads: 4 Cores, 8 Threads (both configurations)
• Cache:
  • L3 Cache: 6MB (7700HQ) / 8MB (7920HQ) shared
  • L2 Cache: 1MB (256KB per core)
  • L1 Cache: 256KB (64KB per core)
• TDP: 45W
• Manufacturing Process: 14nm+ (optimized 14nm process)
• Integrated Graphics: Intel HD Graphics 630
• Performance Features:
  • Intel Turbo Boost Technology 2.0
  • Intel Hyper-Threading Technology
  • Intel Virtualization Technology (VT-x, VT-d)
  • AVX2 instruction set support
  • Hardware acceleration for 4K H.265/HEVC encoding/decoding
  • Improved power efficiency over Skylake
• Performance vs 2015: 10-15% faster single-core, 15-20% faster multi-core

3. Memory Configuration

• Standard Configuration: 16GB 2133MHz LPDDR3 (soldered)
• Memory Type: LPDDR3 (Low Power DDR3)
• Memory Speed: 2133MHz (faster than 1600MHz in 2015)
• Memory Channels: Dual-channel
• Upgradeability: NOT user-upgradeable (soldered to logic board)
• Maximum Supported: 16GB (no 32GB option until 2018 models)
• LPDDR3 Advantages:
  • Lower power consumption than standard DDR4
  • Higher bandwidth than 2015's DDR3L
  • Better for integrated graphics performance
• Limitations:
  • No upgrade path
  • 16GB may be limiting for heavy multitasking in 2024
  • Not as fast as DDR4 in contemporary Windows laptops

4. Storage Options & Performance

• Available Configurations:
  1. 256GB PCIe-based SSD (base model)
  2. 512GB PCIe-based SSD
  3. 1TB PCIe-based SSD
  4. 2TB PCIe-based SSD (high-end configuration)
  5. 4TB PCIe-based SSD (special order only)
• SSD Interface: Proprietary Apple PCIe 3.0 x4
• SSD Performance:
  • Read speeds: Up to 3,100 MB/s (2TB model)
  • Write speeds: Up to 2,100 MB/s (2TB model)
  • 4KB random read: Up to 380,000 IOPS
  • 4KB random write: Up to 370,000 IOPS
  • Approximately 70% faster than 2015 model's SSD
• Storage Upgradeability: NOT user-upgradeable (soldered)
  • Unlike 2015 model, SSD is soldered to logic board
  • Data recovery requires specialized tools
  • No storage expansion possible
  • External Thunderbolt 3 storage recommended for expansion
• Recommended Configuration: 512GB SSD minimum for professional use

5. Graphics Performance (Dual Graphics System)

• Integrated Graphics: Intel HD Graphics 630
  • Execution Units: 24 EUs
  • Base Frequency: 350 MHz
  • Max Dynamic Frequency: 1.1 GHz
  • Used for light tasks to save battery
  • Supports 4K H.265/HEVC hardware decoding
• Discrete Graphics Options:
  • Radeon Pro 555 with 2GB GDDR5 (base model)
  • Radeon Pro 560 with 4GB GDDR5 (upgraded model)
• Radeon Pro 560 Specifications:
  • Architecture: Polaris 21 (GCN 4.0)
  • Stream Processors: 1,024
  • Core Clock: 907 MHz
  • Memory: 4GB GDDR5 @ 5,000 MHz
  • Memory Interface: 128-bit
  • Memory Bandwidth: 80 GB/s
  • Compute Performance: 1.86 TFLOPS
  • Supports VR content creation (minimum spec)
• Automatic Graphics Switching:
  • Intelligently switches between integrated and discrete GPU
  • Can be manually controlled in Energy Saver preferences
  • Better power management than 2015 model
• External Display Support:
  • Up to two 5K displays @ 60Hz via Thunderbolt 3
  • Up to four 4K displays @ 60Hz
  • Native support for LG UltraFine 5K Display
  • USB-C to HDMI/DisplayPort adapters required for legacy displays

6. Connectivity & Ports (All USB-C Era)

• Left Side:
  1. 2 x Thunderbolt 3 (USB-C) ports (40 Gbps each)
  2. Headphone/optical digital audio output (3.5mm)
• Right Side:
  1. 2 x Thunderbolt 3 (USB-C) ports (40 Gbps each)
• Wireless Connectivity:
  • Wi-Fi: 802.11a/b/g/n/ac (Wi-Fi 5, 3x3 MIMO)
  • Bluetooth: 4.2
• Thunderbolt 3 Capabilities:
  • 40 Gbps bandwidth per port (2x Thunderbolt 2)
  • Supports USB 3.1 Gen 2 (10 Gbps)
  • DisplayPort 1.2 (can drive 5K displays)
  • Power Delivery (up to 100W charging)
  • Daisy-chain up to 6 devices
  • External GPU enclosures fully supported
• Port Controversy:
  • No MagSafe (safety feature removed)
  • No USB-A ports (dongles required for most peripherals)
  • No HDMI port (adapter needed for monitors/projectors)
  • No SD card slot (problematic for photographers)
  • All four ports support charging

7. Keyboard, Trackpad & Touch Bar

• Keyboard: Second-generation butterfly mechanism
  • Key travel: 0.7mm (less than 2015's 1mm)
  • Individual LED backlighting
  • Butterfly mechanism prone to failure from dust/debris
  • Apple initiated keyboard service program for this model
  • Feels less satisfying than traditional scissor switches
• Trackpad: Force Touch trackpad (enlarged)
  • Glass surface with force sensors
  • Haptic feedback simulates click (no physical mechanism)
  • Pressure sensitivity for "Force Click" features
  • 40% larger than 2015 model's trackpad
  • Multi-touch gesture support
• Touch Bar: Dynamic OLED touchstrip
  • Replaces physical function keys (F1-F12)
  • Context-sensitive controls change based on active application
  • Touch ID sensor integrated at right end
  • Customizable with user-defined shortcuts
  • Divisive feature - some love it, others prefer physical keys
• Touch ID: Integrated fingerprint sensor
  • Fast, secure authentication
  • Apple Pay support for online purchases
  • Password autofill in Safari and apps
  • User switching support
• Webcam: FaceTime HD camera (720p resolution) - unchanged from 2015
• Speakers: Stereo speakers with improved dynamic range

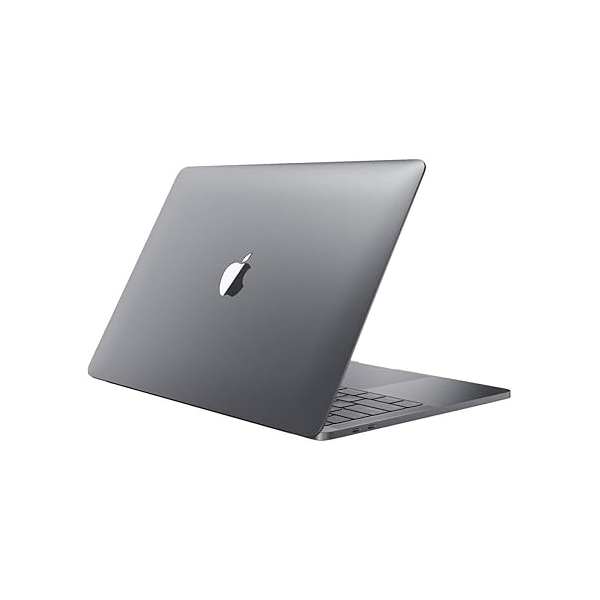

8. Design & Build Quality

• Materials: Aluminum unibody construction
• Dimensions:
  • Height: 1.55 cm (0.61 inch) - 14% thinner than 2015
  • Width: 34.93 cm (13.75 inches)
  • Depth: 24.07 cm (9.48 inches)
• Weight: 1.83 kg (4.02 lbs) - 10% lighter than 2015
• Colors: Space Gray or Silver
• Apple Logo: NOT illuminated (mirror-finish only)
• Construction Improvements:
  • More rigid unibody design
  • Improved hinge mechanism
  • Redesigned cooling system
  • Space Gray anodization more durable
• Environmental Features:
  • 100% recycled aluminum in enclosure (some models)
  • Arsenic-free display glass
  • Mercury-free LED backlighting
  • BFR-free and PVC-free internal components

9. Battery & Power

• Battery Type: Built-in 76-watt-hour lithium-polymer
• Battery Design: Terraced battery cells for space efficiency
• Charge Cycles: Designed for 1,000 cycles before reaching 80% capacity
• Battery Life (Apple claimed):
  • Wireless web: Up to 10 hours
  • iTunes movie playback: Up to 10 hours
  • Standby time: Up to 30 days
• Real-world Battery Life (2024):
  • Light use: 6-8 hours (if battery healthy)
  • Moderate use: 4-6 hours
  • Heavy use (video editing, gaming): 2-3 hours
  • Varies significantly with battery health and usage patterns
• Power Adapter: 87W USB-C Power Adapter
  • USB-C connection (no MagSafe safety feature)
  • Can charge from any Thunderbolt 3 port
  • Supports fast charging
  • Can charge iPhone/iPad (with appropriate cable)

10. Software & Operating System

• Original OS: macOS 10.12 Sierra
• Latest Officially Supported macOS: macOS 14 Sonoma (as of 2024)
• Expected Last macOS: Likely macOS 15 (2025) or 16 (2026)
• Boot Camp: Officially supports Windows 10 (64-bit)
• Touch Bar Integration:
  • Native support in Apple apps (Final Cut, Logic, etc.)
  • Third-party app support varies
  • Can be customized with BetterTouchTool (third-party)
• Professional Software Compatibility:
  • Adobe Creative Cloud 2024 runs well (except latest AI features)
  • Final Cut Pro X optimized for hardware acceleration
  • Most development tools fully compatible
  • May struggle with very latest versions of intensive applications

Performance Benchmarks & Real-World Use

CPU Performance (Geekbench 5):

• Core i7-7700HQ (2.8GHz):
  • Single-Core: 850-900 points
  • Multi-Core: 3,300-3,500 points
• Core i7-7920HQ (3.1GHz):
  • Single-Core: 900-950 points
  • Multi-Core: 3,600-3,800 points
• Improvement over 2015:
  • 15-20% faster single-core
  • 15-25% faster multi-core
  • Better thermal management for sustained performance

GPU Performance:

• Intel HD Graphics 630:
  • Geekbench 5 Metal: 4,000-5,000 points
  • Adequate for basic tasks and video playback
  • Supports 4K H.265/HEVC hardware decoding
• AMD Radeon Pro 560 (4GB):
  • Geekbench 5 Metal: 18,000-22,000 points
  • Good for moderate gaming (2017 titles at medium-high settings)
  • Capable of 4K video editing in Final Cut Pro (optimized)
  • VR capable (minimum spec for Oculus Rift)
  • Approximately 50% faster than 2015's R9 M370X

Storage Performance:

• 512GB PCIe SSD:
  • Sequential Read: 2,500-2,800 MB/s
  • Sequential Write: 1,800-2,100 MB/s
  • Boot Time: 10-15 seconds
  • Application Launch: Near-instant for most applications
  • Significantly faster than 2015 model

The Touch Bar: Innovation or Gimmick?

Touch Bar Features:

• Contextual Controls: Changes based on active application
  • Safari: Bookmarks, search, tab controls
  • Photos: Editing tools, filters, rotate/crop
  • Final Cut Pro: Timeline controls, editing tools
  • Microsoft Office: Formatting options, slide controls
• Touch ID Integration: Fingerprint sensor at right end
• Customization: System Preferences allows some customization
• Esc Key: Virtual key (controversial for developers/typists)

User Reception:

• Positive Aspects:
  • Innovative contextual interface
  • Touch ID convenience
  • Useful in specific applications (video editing, music production)
  • Customizable with third-party tools
• Negative Aspects:
  • No physical function keys (problematic for developers, gamers)
  • No tactile feedback
  • Requires looking down from screen
  • Not all applications support it well
  • Can be accidentally triggered

Target Market & Use Cases

Ideal Users in 2024:

• Creative Professionals: Who appreciate P3 display and Thunderbolt 3
• Developers: Who can work around Touch Bar limitations
• Students: Needing a portable Mac with modern connectivity
• Business Users: Who value Touch ID and thin design
• Photographers/Videographers: Who can benefit from P3 color gamut
• Those Transitioning to USB-C: Wanting to future-proof peripherals

Recommended Workloads:

• 4K video editing (optimized codecs like ProRes)
• Photo editing with P3 color accuracy
• Software development (except heavy compilation)
• Music production with moderate track counts
• Data analysis and scientific computing
• Business applications and presentations
• Moderate gaming (2017 and earlier titles)

Comparison with Other MacBook Pros

vs. MacBook Pro 2015:

• 2017 Advantages: Thinner/lighter, P3 display, True Tone, faster SSD, Thunderbolt 3, Touch ID
• 2015 Advantages: More ports, better keyboard, MagSafe, user-replaceable SSD, no Touch Bar
• Performance Difference: 2017 is 15-25% faster in most tasks

vs. MacBook Pro 2016:

• 2017 Advantages: Faster CPU/GPU, larger base storage, improved keyboard (slightly), better battery
• 2016 Advantages: Essentially identical except for minor spec bumps
• Key Point: 2017 is essentially a refined 2016 model

vs. MacBook Pro 2018:

• 2017 Advantages: More reliable keyboard (relatively), lower cost
• 2018 Advantages: 6-core CPU, 32GB RAM option, True Tone display, T2 chip, third-gen keyboard
• Performance Difference: 2018 is 40-60% faster in multi-core tasks

vs. MacBook Pro M1 Pro (2021):

• 2017 Advantages: Boot Camp for Windows, lower cost, Intel compatibility
• M1 Pro Advantages: Much faster CPU/GPU, better battery, cooler operation, longer support
• Verdict: M1 Pro is significantly better in every way except specific Intel compatibility needs

Common Issues & Known Problems

1. Butterfly Keyboard Failures:

• Symptoms: Sticky keys, repeated letters, unresponsive keys
• Causes: Dust/debris entering butterfly mechanism
• Apple Service Program: Keyboard Service Program for 2017 models
  • Covers repairs for 4 years from original purchase
  • May have expired for early 2017 purchases
  • Includes top case replacement (keyboard, battery, trackpad)
• Third-party Solutions: Keyboard covers, compressed air cleaning

2. Flexgate (Display Cable Issue):

• Symptoms: Stage light effect at bottom of display, backlight failure
• Causes: Thin display cable wears out from repeated opening/closing
• Apple Service Program: Backlight Service Program (covers 2016-2017 models for 5 years)
• Repair Cost: $500+ if out of warranty/program

3. Battery Swelling:

• Symptoms: Trackpad clicking issues, bottom case bulging, keyboard raised
• Causes: Age, heat, charge cycles, manufacturing defects
• Apple Response: May replace for free if swelling poses safety risk
• Repair: Requires full top case replacement (keyboard, battery, trackpad together)

4. Thermal Throttling:

• Symptoms: Performance drops under sustained load, fan noise
• Causes: Thin design limits cooling capacity
• Solutions:
  • Use cooling pad
  • Clean dust from vents
  • Adjust power settings
  • Undervolt CPU (advanced users)

Upgrade Paths & Long-Term Viability

Upgrade Limitations:

• RAM: Not upgradeable (soldered)
• Storage: Not upgradeable (soldered)
• Battery: Can be replaced but requires full top case replacement
• Conclusion: What you buy is what you keep - no upgrades possible

External Upgrades (Via Thunderbolt 3):

• External GPU: Full support for eGPU enclosures
  • Significant gaming/rendering performance boost
  • Cost: $300-500 for enclosure + GPU cost
  • Best for desktop replacement scenarios
• External Storage: Thunderbolt 3 SSDs offer 2,800+ MB/s speeds
• Docking Stations: Single cable for multiple peripherals/displays

macOS Support Timeline:

• Current Support: macOS 14 Sonoma (2023)
• Expected Last macOS: Likely macOS 16 (2026)
• Security Updates: Likely through 2027-2028
• Application Support: Most apps will support Intel through 2026+

Environmental Impact & Sustainability

Green Design Features:

• Energy Efficiency: ENERGY STAR 7.0 certified
• Materials:
  • 100% recycled aluminum in some components
  • Arsenic-free display glass
  • Mercury-free LED backlighting
  • BFR-free and PVC-free internal components
• Repairability Concerns:
  • Low repairability due to soldered components
  • Keyboard/battery replacement requires full top case
  • Display repairs expensive

iFixit Repairability Score:

• Score: 1/10 (extremely difficult to repair)
• Reasons: Everything soldered, proprietary screws, glued battery
• Professional Repair: Possible but requires specialized tools and training

Cost Analysis & Current Market Value

Original Pricing (2017):

• Base Model (2.8GHz, 256GB, Radeon Pro 555): $2,399
• Mid-range (2.8GHz, 512GB, Radeon Pro 560): $2,799
• High-end (3.1GHz, 1TB, Radeon Pro 560): $3,399
• Fully Loaded (3.1GHz, 2TB, Radeon Pro 560): $4,299

Current Market Value (Used, 2024):

• Base Model (2.8GHz, 256GB): $400-$550
• Mid-range (2.8GHz, 512GB, Radeon Pro 560): $500-$700
• High-end (3.1GHz, 1TB, Radeon Pro 560): $600-$800
• Factors Affecting Value:
  • Battery health and cycle count
  • Keyboard condition (any issues reduce value)
  • Display condition (Flexgate issues significant)
  • Physical condition (dents, scratches)
  • Original accessories and box

Value Proposition:

• For Professionals: Good value if you need P3 display and Thunderbolt 3
• For Students: Decent value but consider keyboard reliability risks
• Compared to 2015: More modern but less reliable and repairable
• Compared to M1 MacBook Air: M1 Air is better value for most users

Pros & Cons Summary

Advantages:

• Beautiful P3 wide color display with True Tone
• Modern Thunderbolt 3 connectivity (4 ports)
• Thin and light design (for a 15-inch laptop)
• Touch ID for convenient authentication
• Fast PCIe SSD storage
• Good performance for most tasks
• Still receiving macOS updates
• Large Force Touch trackpad
• Touch Bar (some users appreciate it)

Disadvantages:

• Notorious butterfly keyboard reliability issues
• Flexgate display cable problem common
• No traditional ports (USB-A, HDMI, SD card)
• No MagSafe charging safety feature
• Touch Bar replaces physical function keys
• Soldered RAM and storage (no upgrades)
• Thermal throttling under sustained load
• 720p webcam (dated by 2024 standards)
• Keyboard service program may have expired

Final Recommendation & Verdict

Buy the MacBook Pro 15" (2017) If:

• You specifically need a P3 display for color-critical work
• You want Thunderbolt 3 for modern peripherals
• You appreciate Touch ID convenience
• You find one with excellent battery health and no keyboard issues
• Your budget is $500-$700 and you need 15-inch screen
• You're comfortable with potential keyboard repairs
• You don't mind dongles for legacy peripherals

Consider Alternatives If:

• Keyboard reliability is a major concern (avoid all 2016-2019 models)
• You need physical function keys for development/workflows
• You want traditional ports without dongles
• Your budget allows for M1 MacBook Air (much better performance)
• You prioritize repairability and longevity
• You work in dusty environments (butterfly keyboards vulnerable)
• You need maximum performance for demanding applications

Best Configurations to Look For:

1. 3.1GHz i7, 512GB/1TB SSD, Radeon Pro 560, low battery cycles - Best performance
2. Any configuration with recently replaced top case - Means new keyboard and battery
3. Models with AppleCare+ remaining - For keyboard repair coverage

Important Checks Before Buying:

1. Test EVERY key on keyboard (type full alphabet and numbers)
2. Check for Flexgate (look for backlight issues at bottom of display)
3. Check battery cycle count (under 500 ideal, under 800 acceptable)
4. Test all Thunderbolt 3 ports with a device
5. Check Touch Bar functionality (all buttons responsive)
6. Verify Touch ID works properly

Overall Assessment:

7.0/10 for Specific Use Cases in 2024 (With Major Caveats)

The 2017 15-inch MacBook Pro is a machine of contradictions. On one hand, it offers a beautiful P3 display, modern Thunderbolt 3 connectivity, Touch ID convenience, and respectable performance for most tasks. On the other hand, it's plagued by the notorious butterfly keyboard reliability issues, potential Flexgate display problems, and the controversial Touch Bar that eliminated physical function keys.

For creative professionals who specifically need a P3 color-accurate display and can benefit from Thunderbolt 3's capabilities, this machine can represent good value at current used prices—provided you find one with a healthy battery and no existing keyboard issues. The display alone makes it compelling for photographers and video editors who need color accuracy.

However, for most users in 2024, the reliability risks outweigh the benefits. The butterfly keyboard issues are not trivial—they can render the laptop unusable and repairs are expensive if Apple's service program has expired. The M1 MacBook Air, while having a smaller screen, offers dramatically better performance, battery life, reliability, and longer software support for similar used prices
