Detailed Technical Specifications

Product Information

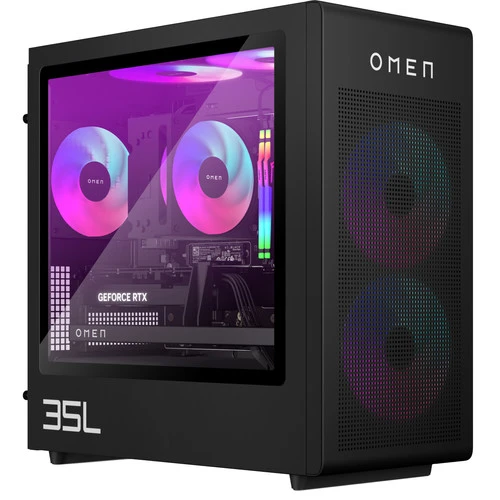

• Product Name: HP OMEN 35L Gaming Desktop PC
• Model: TG16 (OMEN 35L series)
• Brand: HP
• Series: OMEN 35L Series (2023-2024 Gaming Desktop)
• Category: Gaming Desktop PC
• Release Year: 2023-2024
• Form Factor: Mid-Tower
• Dimensions: 16.3 x 7.1 x 16.9 inches (414 x 180 x 429 mm)
• Weight: 25.1 lbs (11.4 kg)
• Color: Mica Silver with tempered glass side panel

Processor (CPU)

• Model: Intel Core i7-14700 / i7-14700K / i7-14700KF (exact variant depends on configuration)
• Generation: 14th Generation (Raptor Lake Refresh)
• Core Configuration: 8 Performance cores + 12 Efficiency cores = 20 total cores
• Threads: 28 threads (8P cores with Hyper-Threading = 16 threads + 12E cores = 28 total)
• Base Frequency: P-cores: 2.1-3.4 GHz, E-cores: 1.5-2.5 GHz (varies by specific model)
• Max Turbo Frequency: Up to 5.6 GHz (on i7-14700K/KF)
• Cache: 33MB Intel Smart Cache (28MB L3 + 5MB L2)
• Socket: LGA 1700
• TDP: 65W (non-K) / 125W (K/KF variants, Base) up to 253W (Max Turbo Power)
• Architecture: Intel 7 (10nm Enhanced SuperFin)
• Intel Technologies: Intel Turbo Boost Max 3.0, Thermal Velocity Boost, PCIe 5.0 & 4.0, DDR5/DDR4, VT-x, VT-d, AES-NI
• Integrated Graphics: Intel UHD Graphics 770 (on non-F models, F models have no iGPU)
• Overclocking: Unlocked on K/KF variants

Graphics (GPU)

• Model: NVIDIA GeForce RTX 4060 (OEM variant)
• Memory: 8GB GDDR6
• Memory Interface: 128-bit
• CUDA Cores: 3072
• Base Clock: 1830 MHz
• Boost Clock: 2460 MHz (typical, varies by OEM cooling solution)
• Ray Tracing Cores: 3rd Generation
• Tensor Cores: 4th Generation (with DLSS 3 and Frame Generation)
• PCIe Interface: PCIe 4.0 x8 (Note: x8 interface, not full x16)
• Power Connector: 1x 8-pin PCIe or 1x 16-pin 12VHPWR (depends on OEM design)
• Outputs: 3x DisplayPort 1.4a, 1x HDMI 2.1a
• Max Resolution: 7680x4320 @ 60Hz (8K) with DSC
• NVIDIA Technologies: DLSS 3 (with Frame Generation), Ray Tracing, NVIDIA Reflex, NVIDIA Broadcast
• VR Ready: Yes

Memory (RAM)

• Capacity: 16GB DDR5 (as configured)
• Type: DDR5-5200 or DDR5-5600 (non-ECC, unbuffered)
• Slots: 4x DIMM slots (typically 1x16GB or 2x8GB configuration)
• Maximum Supported: Up to 128GB (4x32GB) DDR5
• Memory Technology: Dual-channel architecture (install in pairs for best performance)
• Speed: 5200MHz or 5600MHz (JEDEC, not XMP)
• Upgrade Note: For best performance, use identical RAM modules in slots A2 and B2

Storage

• Primary Storage: 512GB PCIe NVMe SSD (Gen 4.0)
• Secondary Storage: 1TB 7200RPM SATA HDD (3.5-inch)
• SSD Interface: PCIe Gen 4.0 x4 (NVMe)
• SSD Form Factor: M.2 2280
• HDD Interface: SATA 6Gb/s
• Storage Bays:
  • 2x M.2 slots (Gen 4.0 x4) - one occupied
  • 2x 3.5-inch internal bays (one occupied by HDD)
  • 2x 2.5-inch internal bays (available, share space with 3.5-inch bays)
• Storage Expansion: Excellent - supports up to 2x M.2 + 2x 3.5-inch/2.5-inch drives
• RAID Support: RAID 0, 1 (for NVMe SSDs via BIOS, if chipset supports)

Operating System

• Pre-installed: Windows 11 Home 64-bit
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: DirectX 12 Ultimate, Auto HDR, DirectStorage 1.2, Windows Subsystem for Android
• Gaming Features: Game Mode, Windows Game Bar, Xbox Game Pass integration
• Upgrade Path: Eligible for Windows 11 Pro upgrade (purchase required)

Connectivity

• Ethernet: 2.5 Gigabit Ethernet (Realtek RTL8125BG or Intel I225-V)
• Wireless: Intel Wi-Fi 6E AX211 (802.11ax, 2x2) + Bluetooth 5.3
• Wi-Fi Speed: Up to 2.4 Gbps (6GHz band support for Wi-Fi 6E)
• Bluetooth: Bluetooth 5.3 with LE Audio support
• Wake-on-LAN: Supported
• LAN Features: Wake on LAN, PXE boot, Energy Efficient Ethernet

Front Panel Ports

• USB 3.2 Gen 2 Type-C: 1x (10 Gbps, with charging support)
• USB 3.2 Gen 1 Type-A: 2x (5 Gbps)
• Headphone Jack: 1x 3.5mm (with headset support)
• Microphone Jack: 1x 3.5mm
• Power Button: With RGB LED indicator
• SD Card Reader: Not available on this model

Rear Panel Ports

• USB 3.2 Gen 2x2 Type-C: 1x (20 Gbps)
• USB 3.2 Gen 2 Type-A: 2x (10 Gbps)
• USB 3.2 Gen 1 Type-A: 4x (5 Gbps)
• USB 2.0: 2x (Type-A, 480 Mbps)
• Ethernet: 1x RJ-45 (2.5 Gigabit)
• Audio: 5x 3.5mm jacks + 1x Optical S/PDIF out
• Display Outputs (from GPU):
  • 3x DisplayPort 1.4a (with DSC)
  • 1x HDMI 2.1a
• Antenna Connectors: 2x for Wi-Fi/Bluetooth antennas

Expansion Slots

• PCIe Slots:
  • 1x PCIe x16 (Gen 5.0) - occupied by RTX 4060 (running at Gen 4.0 x8)
  • 1x PCIe x16 (Gen 4.0, electrical x4) - available
  • 2x PCIe x1 (Gen 4.0) - available
• M.2 Slots:
  • 2x M.2 2280 (PCIe Gen 4.0 x4) - one occupied
  • 1x M.2 2230 (for Wi-Fi card) - occupied
• Drive Bays:
  • 2x 3.5-inch internal (one occupied)
  • 2x 2.5-inch internal (available)

Audio

• Audio Codec: Realtek ALC897 or ALC1220
• Channels: 7.1 channel surround sound support
• Audio Technologies: DTS:X Ultra, HP Audio Boost, Nahimic Audio
• Front Panel Audio: Dedicated headphone amplifier with high-impedance support
• Noise Cancellation: AI noise cancellation for microphone and speakers

Cooling System

• CPU Cooler: OMEN Cryo Chamber 240mm AIO liquid cooler (top-mounted)
• Case Fans:
  • Front: 3x 120mm intake fans with RGB lighting
  • Rear: 1x 120mm exhaust fan
• Cooling Technology: OMEN Cryo Chamber separates CPU cooling loop from case airflow
• Fan Control: OMEN Gaming Hub software with custom fan curves
• Thermal Design: Mesh front panel, optimized airflow with positive pressure

Power Supply

• Type: Internal power supply
• Wattage: 600W 80 PLUS Gold certified
• Efficiency: 80 PLUS Gold (90% efficiency at 50% load)
• Input Voltage: 100-240V AC, 50-60Hz
• Modular: Non-modular or semi-modular (depends on exact configuration)
• Power Connectors:
  • 1x 24-pin ATX motherboard
  • 2x 8-pin CPU (EPS)
  • 2x PCIe 8-pin (6+2) for GPU
  • Multiple SATA power connectors

Chassis & Design

• Chassis Type: Mid-Tower with full tempered glass side panel
• Tool-less Design: Thumb screws for side panels, tool-less drive bays
• Ventilation: Full mesh front panel for maximum airflow
• Color: Mica Silver with black accents
• Lighting: Addressable RGB on front fans, CPU cooler, and interior accents, controllable via OMEN Gaming Hub
• Build Quality: Steel chassis with 4mm tempered glass side panel
• Cable Management: Excellent with grommets, velcro straps, and dedicated cable channel

Software & Gaming Features

• Pre-installed Software: OMEN Gaming Hub, HP Support Assistant, NVIDIA GeForce Experience
• Gaming Hub Features: Performance control, lighting control, game optimizer, network booster, temperature monitoring
• NVIDIA Software: GeForce Experience with Game Ready drivers, NVIDIA App, ShadowPlay, Ansel
• Streaming Features: NVIDIA Broadcast (noise removal, virtual background, auto frame)
• Game Optimization: OMEN Gaming Hub can optimize game settings automatically

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Relative Humidity: 20% to 80% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 26 dBA typical (idle), 36 dBA under gaming load

Warranty & Support

• Standard Warranty: 1-year limited warranty (parts and labor)
• Support Hours: 24/7 online and phone support
• Onsite Service: Optional (varies by region)
• Extended Warranty: Available up to 3 years
• Accidental Damage Protection: Optional HP Care Pack

Certifications & Compliance

• ENERGY STAR 8.0 certified
• EPEAT Silver or Gold (depending on configuration)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified for Windows 11

What's in the Box

• HP OMEN 35L Gaming Desktop PC
• Power Cord
• Wi-Fi antennas (2x)
• Documentation Kit
• Warranty Card
• Keyboard and Mouse (OMEN gaming peripherals, model varies)

Performance & Gaming Capabilities

• Target Use: 1080p and 1440p gaming, content creation, streaming, VR
• Recommended For: 1080p high-refresh and 1440p gaming, streaming, video editing, 3D rendering
• Gaming Performance: Excellent for 1080p gaming, very good for 1440p gaming with DLSS 3
• Ray Tracing: Good performance with 3rd Gen RT cores and DLSS 3 Frame Generation
• DLSS 3 Support: Yes (with Frame Generation for significantly higher FPS)
• VR Ready: Yes (compatible with Meta Quest 2/3, Valve Index, etc.)
• Content Creation: Excellent for video editing, 3D modeling with 20-core CPU
• Not Recommended For: Native 4K gaming at high settings

Upgrade Potential

• CPU Upgrade: Supports up to Intel Core i9-14900K (same socket LGA 1700)
• GPU Upgrade: Can support up to RTX 4070 Ti/4080 with PSU upgrade (recommend 750W+ for high-end)
• RAM Upgrade: Up to 128GB DDR5 (4x32GB)
• Storage Upgrade: Excellent - 1x M.2 slot free, multiple drive bays available
• PSU Upgrade: Standard ATX PSU compatibility (recommend 750W-850W for future upgrades)
• Cooling Upgrade: Supports up to 360mm radiator in front, 240mm on top

Important Notes & Recommendations

• Memory Configuration: 16GB is good for gaming; upgrade to 32GB for content creation and future-proofing
• Storage Strategy: 512GB SSD fills quickly with modern games; add a second 1-2TB NVMe SSD
• Power Supply: 600W is adequate for RTX 4060; upgrade to 750W+ for more powerful GPUs
• Cooling: 240mm AIO provides excellent CPU cooling; case has good airflow for GPU
• Gaming Setup: Pair with 1080p 240Hz or 1440p 165Hz monitor for best experience
• DLSS 3: Take advantage of Frame Generation for significantly higher FPS in supported games
• 14th Gen CPU: E-cores handle background tasks, P-cores focus on gaming and applications
• Compared to 25L/30L: 35L has better cooling, more expansion, and supports larger components
• Compared to 45L: 35L is more compact while maintaining good cooling and expansion
• Value Proposition: Excellent balance of latest CPU technology with mid-range GPU for 1080p/1440p gaming
• Future-Proofing: PCIe 5.0 support on motherboard for future SSDs and GPUs
