Executive Summary

The Dell OptiPlex 7090 Tower represents the pinnacle of Dell's mainstream business desktop lineup, offering workstation-class performance in a traditional tower form factor. Built with 10th and 11th Generation Intel Core processors, this system bridges the gap between standard office desktops and dedicated workstations, providing substantial expansion capabilities, enterprise-grade security features, and future-proof connectivity. Designed for power users, IT professionals, and demanding business applications, the 7090 Tower delivers exceptional performance while maintaining Dell's business-class reliability and manageability.

Detailed Specifications

1. Processor (CPU)

Generation: 10th or 11th Generation Intel Core (Comet Lake/Rocket Lake)

Core Architecture:

• 10th Gen (Comet Lake): Up to 10 cores, 14nm++ process
• 11th Gen (Rocket Lake): Up to 8 cores, 14nm backport of Cypress Cove architecture
• Thermal Design Power: 65W-125W processors depending on configuration

Common Configurations:

• Intel Core i7-10700 (8 cores, 16 threads, 2.9-4.8 GHz) - Most Common
• Intel Core i9-10900 (10 cores, 20 threads, 2.8-5.2 GHz) - High Performance
• Intel Core i5-10500 (6 cores, 12 threads, 3.1-4.5 GHz)
• Intel Core i7-11700 (8 cores, 16 threads, 2.5-4.9 GHz) - 11th Gen variant
• Intel Core i3-10100 (4 cores, 8 threads, 3.6-4.3 GHz) - Entry Level

Business Features: Intel vPro with Active Management Technology on select configurations

2. Memory (RAM)

• Type: DDR4 SDRAM
• Speed: 2933 MHz (10th Gen) / 3200 MHz (11th Gen)
• Slots: 4 DIMM slots (standard)
• Maximum Capacity: 128GB (4x32GB)
• Standard Configurations: 8GB, 16GB, 32GB, or 64GB
• Dual Channel: Supported for optimal performance
• Error Correction: ECC memory support on select configurations with compatible CPUs

3. Storage

• Primary Storage: M.2 2280 PCIe NVMe Gen4 SSD (11th Gen) or Gen3 (10th Gen)
• Secondary Storage: Additional M.2 slot + 3.5-inch/2.5-inch SATA bays
• Interface Speed: PCIe 4.0 x4 (up to 7,000 MB/s) on 11th Gen configurations
• Drive Bays:
  • 2 x M.2 2280 slots (PCIe NVMe)
  • 1 x 3.5-inch SATA bay (supports 3.5" HDD or 2.5" SSD with adapter)
  • 1 x 2.5-inch SATA bay (dedicated)
  • 1 x 5.25-inch optical drive bay (optional, convertible to additional storage)

Common Configurations:

• 512GB/1TB PCIe NVMe SSD
• 1TB NVMe SSD + 2TB SATA HDD
• Dual 1TB NVMe SSDs in RAID configuration
• 256GB NVMe SSD + 1TB HDD + optional optical drive

4. Graphics

• Integrated: Intel UHD Graphics 630 (10th Gen) or Intel UHD Graphics 730/750 (11th Gen)
• Dedicated Options: Supports full-height, full-length dedicated GPUs including:
  • NVIDIA GeForce RTX 3060/3070 (for design/rendering)
  • AMD Radeon RX 6700 XT
  • NVIDIA Quadro RTX 4000 (professional workstation)
  • AMD Radeon Pro W5500
• Display Support: Up to 4+ displays (depending on GPU configuration)
• Video Outputs: DisplayPort 1.4, HDMI 2.0, USB-C with DisplayPort Alt Mode

5. Connectivity & Ports

Front Ports:

• 2 x USB 3.2 Gen 2 Type-A (10 Gbps)
• 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps)
• 1 x USB 3.2 Gen 1 Type-A (5 Gbps)
• Headphone/Microphone combo jack
• SD card reader (optional)

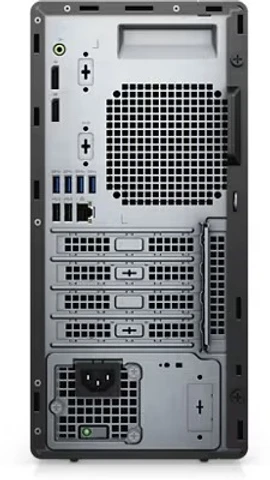

Rear Ports:

• 4 x USB 3.2 Gen 2 Type-A
• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x Thunderbolt 4 (USB4) Type-C (40 Gbps, 100W PD)
• 1 x DisplayPort 1.4 (from integrated graphics)
• 1 x HDMI 2.0 (from integrated graphics)
• 1 x RJ-45 2.5 Gigabit Ethernet (Intel I225-LM)
• Audio line-out, line-in, and microphone jacks
• Serial port (optional)

Wireless: Intel Wi-Fi 6 AX201 (802.11ax 2x2) + Bluetooth 5.2

Optional: Wi-Fi 6E (802.11ax 6GHz) on select configurations

6. Expansion & Form Factor

• Chassis Size: ~366 x 425 x 175 mm (14.4 x 16.7 x 6.9 inches)
• Expansion Slots:
  • 2 x PCIe 3.0/4.0 x16 slots (mechanical x16, electrical x16/x4)
  • 1 x PCIe 3.0 x4 slot (in x16 physical slot)
  • 1 x PCIe 3.0 x1 slot
• Power Supply: 500W 80 PLUS Platinum efficient (upgradable to 750W for high-end GPUs)
• Cooling System: Advanced thermal design with multiple fan options
• Tool-less Design: Easy access to internal components for service and upgrades

7. Security & Manageability

• Security Chip: TPM 2.0 (discrete)
• Dell ControlVault 3: Advanced authentication and encryption subsystem
• Dell SafeID: Tamper-resistant security for credentials
• Authentication: Optional Smart Card Reader, Contactless Smart Card Reader, Fingerprint Reader
• Physical Security: Kensington lock slot, chassis intrusion detection, lockable side panel
• Management: Dell Client Command Suite, Intel AMT 14.0+, Dell Secured-core PC
• Encryption: Dell Data Protection | Encryption, Microsoft Pluton support (select configurations)
• Secure Boot: UEFI BIOS with Secure Boot and Dell SafeBIOS

8. Power & Environmental

• Power Supply: 80 PLUS Platinum efficiency (90%+ efficiency at typical load)
• Power Consumption: Typical 65W, Maximum 400W+ (with discrete GPU)
• Certifications: ENERGY STAR 8.0, EPEAT Gold, TCO Certified Edge 9.0
• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Acoustics: < 35 dB under typical office load, < 45 dB under full load
• Sustainability: 25% post-consumer recycled plastics, EPEAT Gold compliance

9. Operating System & Support

• Original OS: Windows 10 Professional 64-bit
• Windows 11 Compatibility: Officially supported and certified
• Alternative OS: Windows 11 Pro, Ubuntu Linux (certified), Windows 10 IoT Enterprise
• Recovery: Dell SupportAssist OS Recovery, Dell ImageAssist
• Warranty: 3-year ProSupport Plus standard with optional extensions
• Support: Dell ProSupport with Next Business Day onsite service

Key Features & Target Audience

Unique Selling Points:

• Workstation-Class Performance: Up to 10-core i9 processors with high TDP support
• Exceptional Expansion: Multiple PCIe slots and drive bays for customization
• Future-Proof Connectivity: Thunderbolt 4, 2.5Gb Ethernet, USB 3.2 Gen 2x2
• High-End GPU Support: Accommodates full-length, dual-slot graphics cards
• Enterprise Security: Dell ControlVault 3 and comprehensive security suite

Ideal For:

• Engineering and architectural firms
• Video production and content creation studios
• Financial analysis and data science workstations
• Software development and compilation systems
• CAD/CAM and 3D modeling applications
• Virtualization and server consolidation

Limitations:

• Large Footprint: Traditional tower size requires significant desk/floor space
• Higher Power Consumption: Compared to SFF or micro form factors
• Premium Pricing: Higher cost than mainstream business desktops
• No CPU Upgradability: Limited to 10th/11th Gen Intel processors
• Limited PCIe 4.0: Full PCIe 4.0 support only on 11th Gen configurations

Modern Use Assessment (2024)

• High Performance: 10th/11th Gen processors remain highly capable for demanding workloads
• Windows 11 Optimized: Fully certified and optimized for Windows 11
• GPU Ready: Excellent platform for modern graphics cards up to mid-range RTX 3000 series
• Future-Proof: Thunderbolt 4 and 2.5Gb Ethernet ensure relevance for years
• Upgrade Friendly: Easy to upgrade RAM, storage, and GPUs as needs evolve

Critical Upgrade Considerations:

• GPU Selection: Choose based on workload - gaming, professional, or compute
• Storage Configuration: NVMe Gen4 for OS/apps, large HDD for data storage
• Memory Capacity: 32GB+ recommended for demanding applications
• Power Supply: Consider 750W upgrade for high-end GPU configurations

Comparison with Other Form Factors:

• vs. 7090 SFF: Tower offers significantly better expansion and GPU support
• vs. Precision Workstation: Similar capabilities at lower cost, less validation for professional apps
• vs. XPS Desktop: More business-focused features, better manageability

Final Verdict:

The Dell OptiPlex 7090 Tower is a powerhouse business desktop that successfully bridges the gap between mainstream office PCs and dedicated workstations. Its combination of high-core-count 10th/11th Gen Intel processors, exceptional expansion capabilities, and enterprise-grade security features make it an ideal choice for power users, creative professionals, and demanding business applications. While its traditional tower form factor requires more space than SFF alternatives, this is justified by its ability to accommodate full-length graphics cards, multiple storage drives, and extensive customization.
