Executive Summary

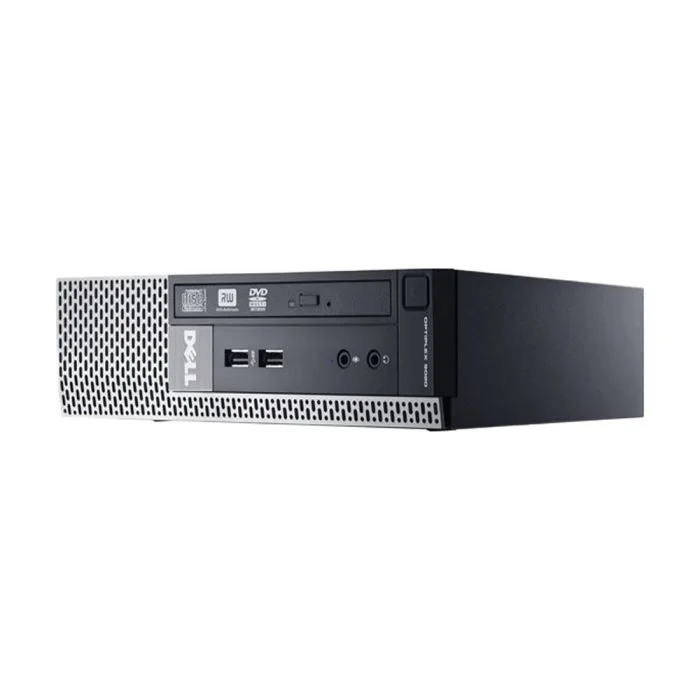

The Dell OptiPlex 9020 SFF is a durable and reliable corporate desktop computer from Dell's business lineup. This specific configuration with a 4th Gen Intel Core i7, 16GB RAM, and 500GB HDD offers solid multi-core performance for general office productivity, light multitasking, and legacy business applications. Its compact SFF design makes it ideal for space-constrained environments like cubicles, retail counters, or mounted behind monitors.

Detailed Specifications

1. Processor (CPU)

• Model: Intel Core i7-4770 (4th Generation - Haswell)
• Cores/Threads: 4 Cores / 8 Threads
• Base Clock: 3.4 GHz
• Max Turbo Frequency: 3.9 GHz
• Cache: 8 MB SmartCache
• TDP: 84W
• Technology: 22nm

2. Memory (RAM)

• Type: DDR3 Non-ECC
• Speed: 1600 MHz
• Slots: 4 x DIMM slots
• Configuration: 16GB total (typically 4x4GB or 2x8GB)
• Maximum Supported: 32GB

3. Storage

• Drive: 500GB 7200RPM 3.5" SATA Hard Disk Drive (HDD)
• Interface: SATA 3 (6 Gb/s)
• Expansion: Multiple internal bays for adding an SSD (recommended) or second drive.

4. Graphics

• Integrated: Intel HD Graphics 4600
• Memory: Shares system RAM
• Output Support: DisplayPort, VGA
• Note: Can support a low-profile dedicated GPU via PCIe x16 slot if required.

5. Audio

• Controller: Integrated Realtek ALC3220
• Ports: Front headphone/microphone combo jack; rear line-in/line-out

6. Networking & Connectivity

• Ethernet: Integrated Intel I217-LM Gigabit Network Connection (with vPro/AMT support)
• Wi-Fi: Not standard; requires optional PCIe or USB Wi-Fi adapter.

7. Expansion & Ports

Front:

• 2 x USB 3.0
• Headphone/Mic combo jack

Rear:

• 4 x USB 3.0, 2 x USB 2.0
• 1 x DisplayPort, 1 x VGA
• 1 x Serial Port (optional), 1 x PS/2 Keyboard/Mouse combo port
• Gigabit Ethernet (RJ-45), Audio ports

8. Form Factor & Power

• Chassis: Small Form Factor (SFF)
• Dimensions: ~290 x 292 x 92 mm (11.4" x 11.5" x 3.6")
• Power Supply: 255W External Power Brick
• Weight: ~5.2 kg (11.5 lbs)

9. Security & Manageability

• Chipset: Intel Q87 Express (with vPro/AMT 9.0 support)
• Security: TPM 1.2 module, Kensington lock slot, Chassis intrusion switch
• Management: Compatible with Dell Client Command Suite, Intel AMT for remote management

10. Operating System Support

• Original: Shipped with Windows 7 Professional or Windows 8 Pro.
• Official Support: Windows 10 Pro (drivers available).
• Unofficial: Can run Windows 11 via manual installation or registry bypass, but lacks official support and may have driver limitations.

Modern Use Assessment & Recommendations

Strengths:

• Cost-Effective: Excellent value for basic computing tasks.
• Upgradeable: Easy to add an SSD for a massive performance boost.
• Reliable: Built for corporate 24/7 use, very durable.
• Quiet & Cool: Efficient thermal design for office environments.

Weaknesses & Considerations:

• Storage: The 500GB HDD is the biggest bottleneck. Strongly recommend replacing with a SATA SSD (~$30-$50) for a transformative speed improvement in boot and load times.
• Age: Nearly a decade old; no warranty.
• Graphics: Integrated only; not suitable for gaming or GPU-intensive tasks.
• Modern OS: Windows 11 is not officially supported.

Ideal For:

• General Office Use (Word, Excel, Email, Browsing)
• Point-of-Sale (POS) Terminal
• Light Duty Home/Office PC
• Server for lightweight applications (e.g., file server, print server)

Final Verdict

A well-built, capable workhorse from its era. With a simple SSD upgrade, this system becomes a very snappy and capable machine for everyday productivity, extending its useful life significantly. Its corporate heritage ensures build quality and stability.
