Detailed Technical Specifications

Product Information

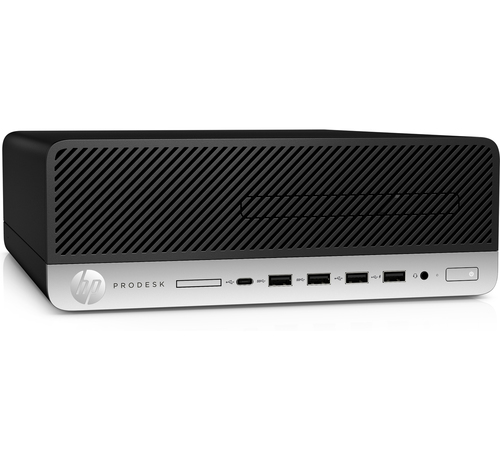

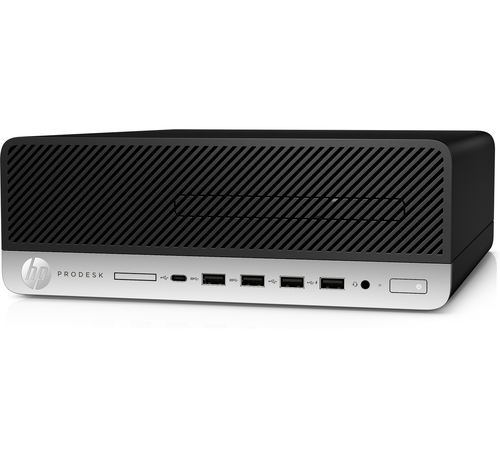

• Product Name: HP ProDesk 600 G5 Small Form Factor
• Model: ProDesk 600 G5 SFF
• Brand: HP
• Series: ProDesk 600 Series (Business Desktop)
• Category: Small Form Factor Business Desktop
• Release Year: 2019
• Form Factor: SFF (Small Form Factor)
• Dimensions: 13.31 x 11.42 x 3.94 inches (338 x 290 x 100 mm)
• Weight: Starting at 12.13 lbs (5.5 kg)
• Color: Business Black with Silver accents (Note: Primary color is Business Black)

Processor (CPU)

• Model: Intel Pentium Gold G5420
• Generation: 8th Generation (Coffee Lake)
• Cores/Threads: 2 cores, 4 threads (with Hyper-Threading)
• Base Frequency: 3.8 GHz (no Turbo Boost)
• Cache: 4MB Intel Smart Cache
• Socket: LGA 1151 (300 series)
• TDP: 54W
• Architecture: 14nm++
• Intel Technologies: Hyper-Threading, Virtualization Technology (VT-x, VT-d)
• Other Possible CPUs: Core i3-8100, i5-8500, i5-9500, i7-8700 (depending on configuration)

Memory (RAM)

• Capacity: 8GB DDR4 (as configured)
• Type: DDR4-2666 (non-ECC, unbuffered)
• Slots: 4x DDR4 UDIMM slots (typically 2 slots used in 8GB config)
• Maximum Supported: Up to 64GB (4x16GB) or 128GB (4x32GB with specific CPUs)
• Memory Technology: Dual-channel architecture
• Speed: 2666MHz (supports 2400MHz and 2666MHz modules)

Storage

• Primary Storage: 500GB 7200RPM SATA HDD
• Interface: SATA 6Gb/s
• Form Factor: 3.5-inch
• Storage Bays:
  • 1x 3.5-inch internal bay (occupied by HDD)
  • 1x 2.5-inch internal bay (available for SSD)
  • 1x M.2 slot (for SSD, PCIe NVMe or SATA, 2280 form factor)
• Optical Drive: Optional SATA DVD-RW (slim type)
• Storage Expansion: Can support dual storage (SSD + HDD) or triple storage with M.2

Graphics

• Integrated Graphics: Intel UHD Graphics 610
• Base Frequency: 350 MHz
• Max Dynamic Frequency: 1.05 GHz
• Execution Units: 12
• Video Memory: Shared system memory
• Max Resolution: 4096x2304 @ 60Hz (DisplayPort)
• DirectX Support: DirectX 12
• OpenGL Support: OpenGL 4.5
• Display Outputs: Supports up to 3 independent displays
• Discrete GPU Options: Optional AMD Radeon RX 550 or NVIDIA GeForce GT 1030 (low-profile)

Operating System

• Pre-installed: Windows 10 Pro 64-bit
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: BitLocker, Remote Desktop, Group Policy, Domain Join, Hyper-V
• Windows 11 Compatibility: Fully compatible (meets all requirements)
• Upgrade Path: Eligible for free Windows 11 Pro upgrade

Connectivity

• Ethernet: Intel I219-LM Gigabit Ethernet (10/100/1000)
• Wireless: Optional Intel Wireless-AC 9560 (802.11ac, 2x2) + Bluetooth 5.0
• Wake-on-LAN: Supported
• PXE Boot: Supported
• Management: Intel Active Management Technology (AMT) 12.0 (with vPro CPUs)

Front Panel Ports

• USB 3.1 Gen 1: 2x (Type-A, 5 Gbps)
• USB 3.1 Gen 1: 1x (Type-C, 5 Gbps) on some models
• Audio: 1x headphone/microphone combo jack
• Optical Drive: Optional (if configured)
• Card Reader: Optional 4-in-1 media card reader
• Power Button: With LED indicator

Rear Panel Ports

• USB 3.1 Gen 1: 4x (Type-A, 5 Gbps)
• USB 2.0: 2x (Type-A, 480 Mbps)
• DisplayPort: 1x (version 1.2)
• VGA: 1x (for legacy display support)
• HDMI: 1x (version 1.4)
• Audio: 3x jacks (line-in, line-out, microphone)
• Ethernet: 1x RJ-45 (Gigabit)
• Serial Port: Optional (requires bracket)
• PS/2: Optional combo port (requires bracket)

Expansion Slots

• PCIe Slots:
  • 1x PCIe x16 (Gen 3.0) slot (half-height, low-profile bracket)
  • 1x PCIe x1 (Gen 3.0) slot (half-height)
  • 1x PCIe x1 (Gen 3.0) slot (for dedicated network card or other expansion)
• M.2 Slots:
  • 1x M.2 for storage (2280, PCIe NVMe or SATA)
  • 1x M.2 for wireless card (2230, if wireless configured)
• Drive Bays:
  • 1x 3.5-inch internal (occupied by HDD)
  • 1x 2.5-inch internal (available for SSD)
  • 1x 5.25-inch external (optional optical drive)

Audio

• Audio Codec: Realtek ALC221
• Channels: 5.1 channel support (with rear panel jacks)
• Internal Speaker: System beep speaker only

Power Supply

• Type: Internal power supply
• Wattage: 180W (standard) or 310W (with discrete graphics)
• Efficiency: 80 PLUS Platinum certified
• Input Voltage: 100-240V AC, 50-60Hz
• Power Cord: Included (region specific)

Security Features

• TPM: TPM 2.0 embedded security chip
• Chassis Lock: Kensington lock slot
• Chassis Intrusion Switch: Tamper detection
• BIOS Security: Password protection, secure boot, BIOS recovery
• HP Security Features: HP Sure Start Gen5, HP Sure Run, HP Sure Recover, HP Sure Click
• Cable Lock Slot: Kensington lock compatible

Software & Management

• Pre-installed Software: HP Support Assistant, HP BIOS Configuration Utility, HP Client Security Manager
• Management: HP Manageability Integration Kit, Intel vPro (on select configurations)
• Remote Management: Compatible with HP Manageability Center
• Cloud Management: HP Device as a Service (DaaS) ready

Chassis & Design

• Chassis Type: Small Form Factor (SFF) - tool-less design
• Tool-less Design: Easy access side panel and drive bays
• Ventilation: Optimized airflow with dust filters
• Color: Business Black with Silver trim accents
• Build Quality: Commercial-grade, durable construction
• Mounting Options: VESA mount compatible (optional bracket)

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Relative Humidity: 20% to 80% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 30 dBA typical (idle), 38 dBA under load

Warranty & Support

• Standard Warranty: 3-year limited warranty (parts, labor, and onsite service)
• Support Hours: Business hours (extended available)
• Onsite Service: Next business day (in supported locations)
• Extended Warranty: Available up to 5 years

Certifications & Compliance

• ENERGY STAR 8.0 certified
• EPEAT Silver or Gold (depending on configuration)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified

What's in the Box

• HP ProDesk 600 G5 SFF Desktop
• Power Cord
• Keyboard and Mouse (HP Business Slim or basic models)
• Documentation Kit
• Warranty Card

Performance & Usage

• Target Use: General office productivity, business applications, point-of-sale, light multitasking
• Recommended For: Office workers, reception desks, educational institutions, call centers, digital signage
• Not Recommended For: High-end gaming, video editing, 3D rendering, intensive computational tasks
• Upgrade Potential: Excellent - RAM, storage, and low-profile GPU can be upgraded

Generation Comparison

• 8th Gen vs 6th Gen: Newer architecture, better efficiency, native Windows 11 support
• Pentium Gold vs Core i5: Entry-level vs mid-range; Pentium sufficient for basic office tasks
• Platform: Coffee Lake refresh supports 8th and 9th Gen CPUs for potential upgrades

Important Notes & Recommendations

• Performance Note: Pentium Gold G5420 is entry-level - sufficient for basic office work but consider Core i5 for heavier multitasking
• Storage Upgrade: Strongly recommended to add SSD for significantly better performance
• RAM: 8GB is adequate for basic use, but upgrade to 16GB for better multitasking
• Windows 11: Fully compatible and ready for upgrade
• Form Factor: SFF limits expansion card sizes to low-profile/half-height
• Power Supply: Limited wattage restricts high-power GPU upgrades
• Business Features: Includes enterprise management and security features
• Color Clarification: Primary color is Business Black; silver refers to trim accents
• Warranty: Standard 3-year business warranty with onsite service option
• Compared to G4: G5 has newer 8th/9th Gen CPUs, better power efficiency, improved security features
