Executive Summary

The HP ProDesk 600 G8 Small Form Factor (SFF) is a compact yet powerful business desktop designed to deliver exceptional performance in minimal space. Featuring Intel's revolutionary 12th Gen Alder Lake processors with hybrid core architecture, this system is optimized for modern multitasking and hybrid work environments. With support for cutting-edge technologies like PCIe 5.0, DDR5 memory, and USB 3.2 Gen 2x2, it offers future-proof capabilities while maintaining enterprise-grade security through HP Sure Start Gen7 and HP Wolf Security. The SFF design makes it ideal for space-constrained offices without compromising on expansion potential.

Detailed Specifications

1. Processor (CPU)

Generation: 12th Generation Intel Core (Alder Lake)

Core Architecture:

• Performance Cores (P-cores): High-performance cores for demanding applications
• Efficiency Cores (E-cores): Power-efficient cores for background tasks
• Intel Thread Director: Hardware-based task scheduling for Windows 11

Common Configurations:

• Intel Core i5-12500 (6P+4E cores, 16 threads, 2.5-4.6 GHz) - Most Common
• Intel Core i7-12700 (8P+4E cores, 20 threads, 2.1-4.9 GHz)
• Intel Core i9-12900 (8P+8E cores, 24 threads, 2.4-5.1 GHz)
• Intel Core i3-12100 (4P cores only, 8 threads, 3.3-4.3 GHz)

Intel Management Engine: vPro Enterprise on select configurations

2. Memory (RAM)

• Memory Types: Supports both DDR5 and DDR4 (varies by configuration)
• DDR5 Specification: Up to 4800 MHz (standard), 5200 MHz (overclock)
• DDR4 Specification: Up to 3200 MHz
• Slots: 2-4 DIMM slots (depending on motherboard configuration)
• Maximum Capacity: Up to 128GB (with 32GB modules)
• Dual Channel: Supported for optimal memory performance

3. Storage

• Primary Storage: M.2 2280 PCIe NVMe Gen4 SSD
• Secondary Storage: Optional 2.5-inch SATA SSD/HDD bay
• Future Storage: Optional PCIe Gen5 M.2 slot (on premium configurations)
• Interface Speed: Gen4 x4 (up to 7,000 MB/s), Gen5 x4 (up to 14,000 MB/s)

Common Configurations:

• 256GB/512GB PCIe Gen4 NVMe SSD
• 1TB/2TB PCIe Gen4 NVMe SSD
• 512GB NVMe SSD + 1TB SATA HDD
• Dual NVMe SSD configurations for RAID

4. Graphics

• Integrated: Intel UHD Graphics 770 (on 12th Gen CPUs)
• Dedicated Options: Supports low-profile dedicated GPUs including:
  • NVIDIA T400/T600 (4GB GDDR6)
  • AMD Radeon RX 6400
  • NVIDIA RTX A2000 (12GB GDDR6)
• Display Support: Up to 4 displays (with appropriate GPU)
• Video Outputs: DisplayPort 1.4a, HDMI 2.0b (on dedicated GPUs)

5. Connectivity & Ports

Front Ports:

• 2 x USB 3.2 Gen 1 Type-A (5 Gbps)
• 1 x USB 3.2 Gen 2 Type-C (10 Gbps)
• Headphone/Microphone combo jack

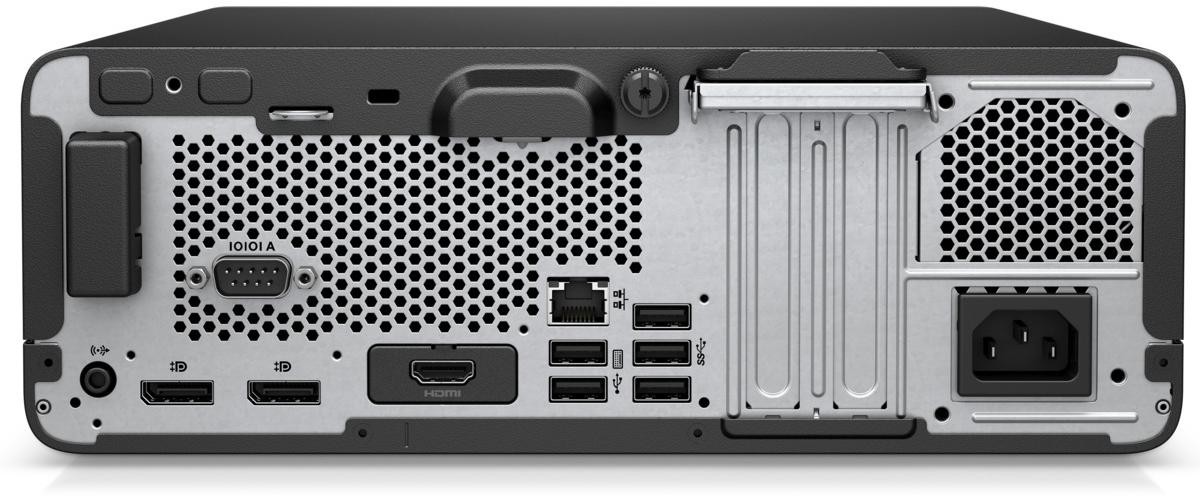

Rear Ports:

• 4 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps)
• 1 x DisplayPort 1.4 (from integrated graphics)
• 1 x HDMI 2.0b (from integrated graphics)
• 1 x RJ-45 2.5 Gigabit Ethernet (Intel I225-LM)
• Audio line-out and microphone jacks

Wireless: Intel Wi-Fi 6E AX211 (802.11ax 2x2) + Bluetooth 5.3

6. Expansion & Form Factor

• Chassis Size: ~338 x 379 x 100 mm (13.3 x 14.9 x 3.9 inches)
• Expansion Slots:
  • 1 x PCIe 5.0 x16 slot (full-height, low-profile bracket)
  • 1 x PCIe 3.0 x1 slot
• Drive Bays:
  • 1 x M.2 2280 slot (PCIe NVMe)
  • 1 x 2.5-inch SATA bay
  • Optional second M.2 slot (varies by configuration)
• Power Supply: 180W-260W 80 PLUS Platinum efficient

7. Security & Manageability

• HP Sure Start Gen7: Self-healing BIOS with runtime intrusion detection
• HP Wolf Security: Hardware-enforced endpoint security platform
• Authentication: TPM 2.0 (discrete), optional Fingerprint Reader
• Physical Security: Kensington lock slot, chassis intrusion detection
• Management: HP Manageability Integration Kit, Intel AMT (on vPro models)
• Encryption: HP Drive Encryption, optional Self-Encrypting Drives (SED)

8. Power & Environmental

• Power Supply: 80 PLUS Platinum efficiency (90%+ efficiency)
• Power Consumption: Typical 45W, Maximum 150W (without discrete GPU)
• Certifications: ENERGY STAR 8.0, EPEAT Silver
• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Acoustics: < 30 dB under typical load

9. Operating System & Support

• Recommended OS: Windows 11 Pro (optimized for hybrid core scheduling)
• Alternative OS: Windows 10 Pro (with potential core scheduling limitations)
• Recovery: HP Cloud Recovery, HP Image Assistant
• Warranty: 3-year limited warranty standard
• Support: HP Proactive Insights predictive analytics support

Key Features & Target Audience

Unique Selling Points:

• Hybrid Core Architecture: 12th Gen Intel with P-cores and E-cores for optimal performance/efficiency
• PCIe 5.0 Support: Future-proof expansion for next-generation storage and GPUs
• Memory Flexibility: Supports both DDR5 and DDR4 for cost/performance optimization
• High-Speed Connectivity: USB 3.2 Gen 2x2 (20Gbps) and 2.5 Gigabit Ethernet
• Compact Yet Expandable: SFF design without sacrificing expansion capabilities

Ideal For:

• Corporate power users and multitaskers
• Financial analysts and data professionals
• CAD/CAM and engineering applications (with dedicated GPU)
• Healthcare clinic workstations
• Education and research computing labs
• Space-constrained office environments

Limitations:

• Limited GPU Size: Only low-profile GPUs supported
• Power Constraints: Limited PSU wattage for high-end GPUs
• Cooling Challenges: Compact design may limit overclocking potential
• Windows 11 Requirement: Optimal performance requires Windows 11 for core scheduling

Modern Use Assessment (2024)

• Cutting-Edge Performance: 12th Gen hybrid architecture remains highly competitive
• Future-Proof Expansion: PCIe 5.0 ensures compatibility with next-gen hardware
• Hybrid Work Optimized: Excellent for multitasking and virtual collaboration
• Security Leadership: HP Sure Start Gen7 provides enterprise-grade protection
• Upgrade Flexibility: Easy RAM, storage, and GPU upgrades extend lifespan

Final Verdict:

The HP ProDesk 600 G8 SFF represents a perfect balance of performance, compactness, and future-proof technology. Its 12th Gen Intel hybrid architecture, combined with PCIe 5.0 support and modern connectivity options, makes it exceptionally capable for today's demanding business workloads while ensuring relevance for years to come. The compact SFF design doesn't sacrifice expansion potential, offering room for low-profile GPUs and multiple storage options. With HP's advanced security features and Windows 11 optimization, this system is an excellent choice for organizations needing high-performance desktops in space-constrained environments, particularly those transitioning to hybrid work models requiring robust multitasking capabilities.
