Executive Summary

The Dell OptiPlex 7060 Small Form Factor (SFF) is a well-balanced business desktop that brings 8th Generation Intel Core performance to a compact chassis. Representing Dell's mainstream business offering during the Windows 10 era, it features six-core processors, modern connectivity options, and enterprise-grade management capabilities.

Detailed Specifications

1. Processor (CPU)

Generation: 8th Generation Intel Core (Coffee Lake)

Core Architecture:

• 14nm++ Process: Refined manufacturing for improved performance and efficiency
• Increased Core Counts: Up to 6 cores on mainstream desktop CPUs
• Thermal Design Power: 65W standard desktop processors

Common Configurations:

• Intel Core i5-8500 (6 cores, 6 threads, 3.0-4.1 GHz) - Most Common
• Intel Core i7-8700 (6 cores, 12 threads, 3.2-4.6 GHz)
• Intel Core i3-8100 (4 cores, 4 threads, 3.6 GHz)
• Intel Pentium Gold G5400 (2 cores, 4 threads, 3.7 GHz) - Entry Level
• Intel Core i5-8600T (6 cores, 6 threads, 2.3-3.7 GHz) - Low Power Variant

Business Features: Intel vPro with Active Management Technology on select configurations

2. Memory (RAM)

• Type: DDR4 SDRAM
• Speed: 2666 MHz (2400 MHz on some configurations)
• Slots: 2 DIMM slots (standard on SFF)
• Maximum Capacity: 64GB (2x32GB)
• Standard Configurations: 4GB, 8GB, 16GB, or 32GB
• Dual Channel: Supported for optimal performance
• Non-ECC: Standard memory only (ECC not supported on consumer chipsets)

3. Storage

• Primary Storage: M.2 2280 PCIe NVMe Gen3 SSD
• Secondary Storage: 2.5-inch SATA SSD/HDD bay
• Additional Storage: Optional optical drive bay (convertible to additional storage)
• Interface Speed: PCIe 3.0 x4 (up to 3,500 MB/s) for NVMe
• SATA Support: SATA III (6 Gbps) for 2.5-inch drives

Common Configurations:

• 256GB/512GB PCIe NVMe SSD
• 1TB 7200RPM SATA HDD
• 128GB NVMe SSD + 1TB SATA HDD (Optane Memory + HDD configurations)
• 512GB SATA SSD (alternative to NVMe)

Intel Optane Memory: Supported on select configurations for HDD acceleration

4. Graphics

• Integrated: Intel UHD Graphics 630 (on 8th Gen CPUs)
• Dedicated Options: Supports half-height, low-profile dedicated GPUs including:
  • AMD Radeon RX 550 (2GB/4GB GDDR5)
  • NVIDIA GeForce GT 730 (2GB GDDR5)
  • AMD Radeon R5 430 (2GB DDR3)
• Display Support: Up to 3 displays (with appropriate GPU)
• Video Outputs: DisplayPort 1.2, HDMI 1.4, VGA (on some configurations)

5. Connectivity & Ports

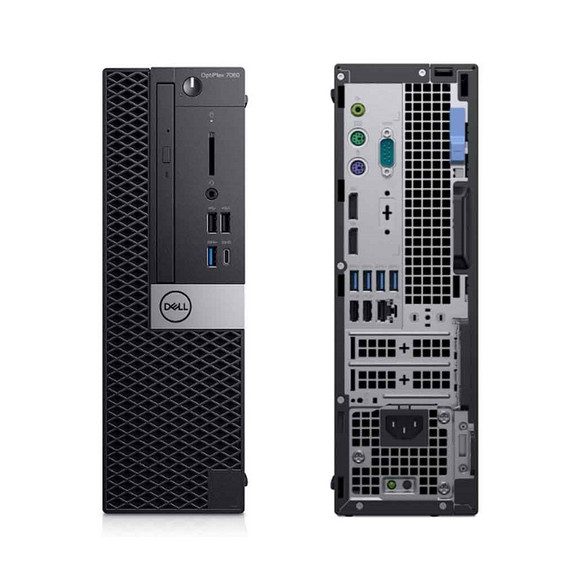

Front Ports:

• 2 x USB 3.1 Gen 1 Type-A (5 Gbps)
• 1 x USB 3.1 Gen 1 Type-C (5 Gbps) - on some configurations
• Headphone/Microphone combo jack
• SD card reader (optional)

Rear Ports:

• 4 x USB 3.1 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x DisplayPort 1.2
• 1 x HDMI 1.4
• 1 x VGA port (on some configurations)
• 1 x RJ-45 Gigabit Ethernet (Intel I219-LM)
• Audio line-out, line-in, and microphone jacks
• Serial port (optional)

Wireless: Intel Dual Band Wireless-AC 9560 (802.11ac 2x2) + Bluetooth 5.0 (optional)

6. Expansion & Form Factor

• Chassis Size: ~292 x 290 x 92.6 mm (11.5 x 11.4 x 3.6 inches)
• Expansion Slots:
  • 1 x PCIe 3.0 x16 slot (half-height/low-profile)
  • 1 x PCIe 3.0 x4 slot (in x16 physical slot, half-height)
  • 1 x PCIe 3.0 x1 slot
• Drive Bays:
  • 1 x M.2 2280 slot (PCIe NVMe or SATA)
  • 1 x 2.5-inch SATA bay
  • 1 x 5.25-inch optical drive bay (optional, convertible to additional 3.5-inch bay)
• Power Supply: 200W 80 PLUS Bronze efficient (some configurations 180W)
• Tool-less Design: Easy access to internal components with tool-free serviceability

7. Security & Manageability

• Security Chip: TPM 2.0 (discrete or firmware)
• Dell ControlVault: Advanced authentication and encryption subsystem
• Authentication: Optional Smart Card Reader, optional Contactless Smart Card Reader
• Physical Security: Kensington lock slot, chassis intrusion detection
• Management: Dell Client Command Suite, Intel AMT (on vPro models)
• Encryption: Dell Data Protection | Encryption, Microsoft BitLocker support
• Secure Boot: UEFI BIOS with Secure Boot and Dell SafeBIOS

8. Power & Environmental

• Power Supply: 80 PLUS Bronze efficiency (85% efficiency at typical load)
• Power Consumption: Typical 40W, Maximum 140W (without discrete GPU)
• Certifications: ENERGY STAR 7.1, EPEAT Silver
• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Acoustics: < 30 dB under typical office load
• Materials: 25% post-consumer recycled plastics

9. Operating System & Support

• Original OS: Windows 10 Professional 64-bit
• Windows 11 Compatibility: Officially supported via upgrade (TPM 2.0 + 8th Gen CPU)
• Alternative OS: Windows 10 Home, Ubuntu Linux (certified)
• Recovery: Dell SupportAssist OS Recovery, Dell ImageAssist
• Warranty: 3-year ProSupport standard (now expired or near expiry on most units)

Key Features & Target Audience

Unique Selling Points:

• Six-Core Performance: First mainstream business desktop generation with 6-core CPUs
• Modern Storage Options: NVMe support alongside traditional SATA
• Compact Yet Expandable: Small footprint with respectable expansion capabilities
• Business Management: Dell's comprehensive management and deployment tools
• Security Features: TPM 2.0 and Dell ControlVault for enterprise security

Ideal For:

• Corporate office workstations
• Educational institutions and computer labs
• Healthcare clinic workstations
• Government offices (with appropriate security configurations)
• Small to medium business environments
• Call centers and customer service desks

Limitations:

• Limited GPU Support: Half-height cards only, limited by 200W PSU
• Two RAM Slots: Maximum 64GB vs. 128GB on some competitors
• No PCIe 4.0: Limited to PCIe 3.0 interface speeds
• Aging Platform: 5+ years old at time of assessment
• Limited USB-C: Only Gen 1 speeds (5 Gbps) on Type-C ports

Modern Use Assessment (2024)

• Still Capable: 8th Gen 6-core processors remain competent for office productivity
• Windows 11 Ready: Fully compatible with official upgrade path
• SSD Dependent: Requires NVMe or SATA SSD for acceptable modern performance
• Memory Considerations: 16GB RAM recommended for contemporary multitasking
• Refurbishment Value: Excellent candidate for refurbishment with SSD and RAM upgrades

Critical Upgrade Recommendations:

• SSD Installation: NVMe SSD highly recommended for optimal performance
• RAM Upgrade: Minimum 16GB for Windows 10/11 with modern applications
• OS Clean Install: Fresh Windows 10 or 11 installation for best experience
• GPU Consideration: Basic low-profile GPU if display outputs or acceleration needed

Final Verdict:

The Dell OptiPlex 7060 SFF is a solid, reliable business desktop that has aged well. Its 8th Generation Intel Core processors, particularly the 6-core variants, provide ample performance for typical office workloads, web applications, and business software.
