Detailed Technical Specifications

Product Information

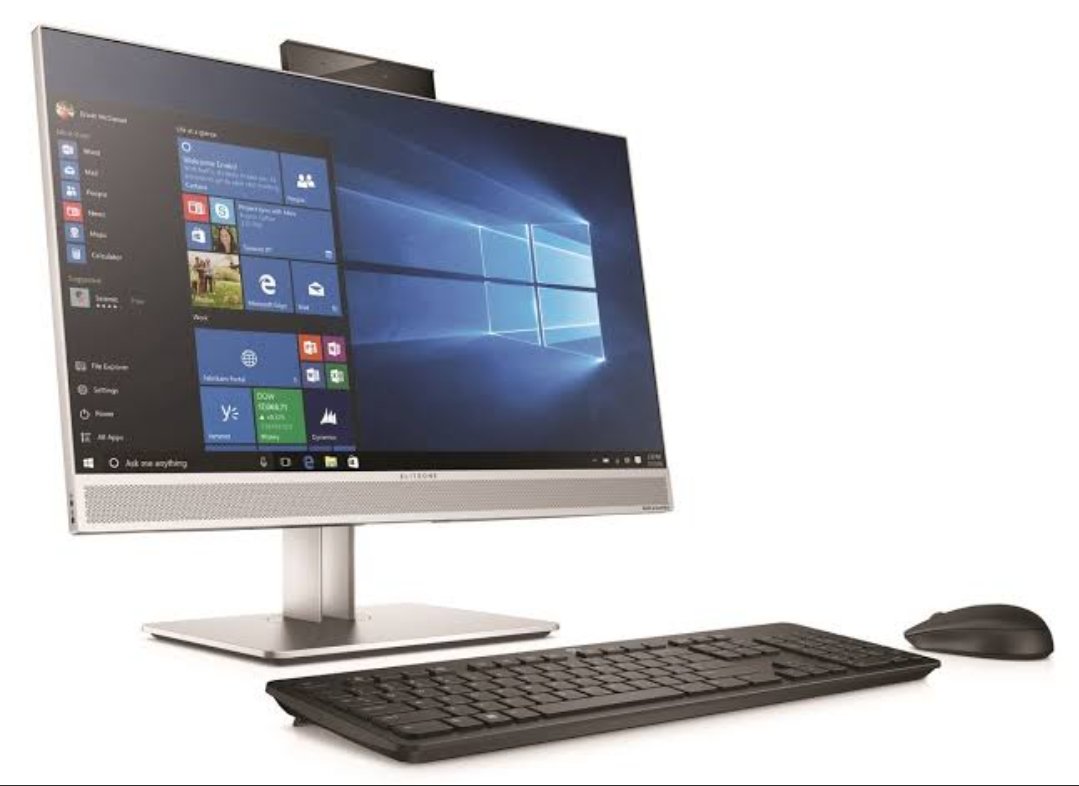

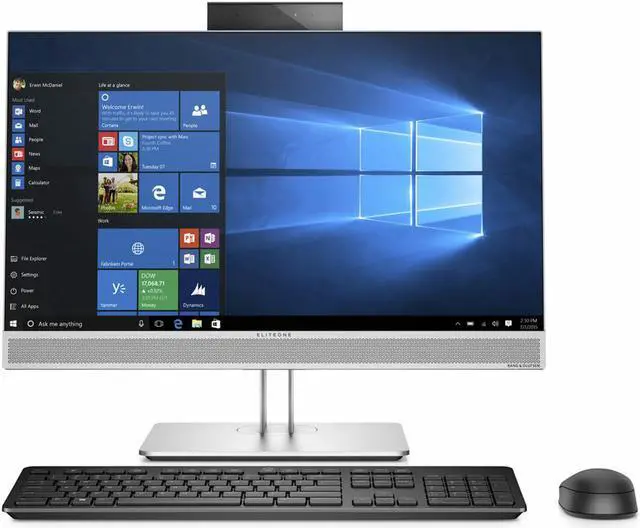

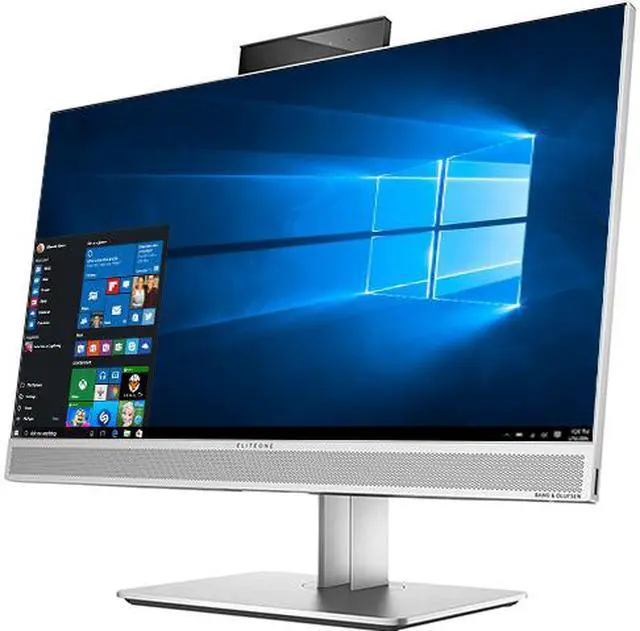

• Product Name: HP EliteOne 800 G3 All-in-One Desktop
• Model: EliteOne 800 G3
• Brand: HP
• Series: EliteOne 800 Series (Premium Business All-in-One)
• Category: Business All-in-One Desktop PC
• Release Year: 2017
• Form Factor: All-in-One (integrated display and computer)
• Dimensions: 21.5 x 15.1 x 2.1 inches (546 x 384 x 53 mm) with stand
• Weight: 16.3 lbs (7.4 kg) with stand
• Color: Silver with black accents (premium business aesthetics)
• Stand Options: Standard tilt stand (-5° to +30°), optional height-adjustable stand

Processor (CPU)

• Model: Intel Core i5-6500
• Generation: 6th Generation (Skylake)
• Cores/Threads: 4 cores, 4 threads (no Hyper-Threading)
• Base Frequency: 3.2 GHz
• Max Turbo Frequency: 3.6 GHz (single core)
• Cache: 6MB Intel Smart Cache
• Socket: LGA 1151 (v1)
• TDP: 65W (standard desktop processor for better performance)
• Architecture: 14nm
• Intel Technologies: Intel Turbo Boost 2.0, VT-x, VT-d, AES-NI, Intel vPro
• Other Possible CPUs: i5-6600, i7-6700, i7-6700T (low-power), i3-6100
• Note: Standard desktop CPU (non-"T" variant) provides better performance than mobile/low-power variants

Display Options

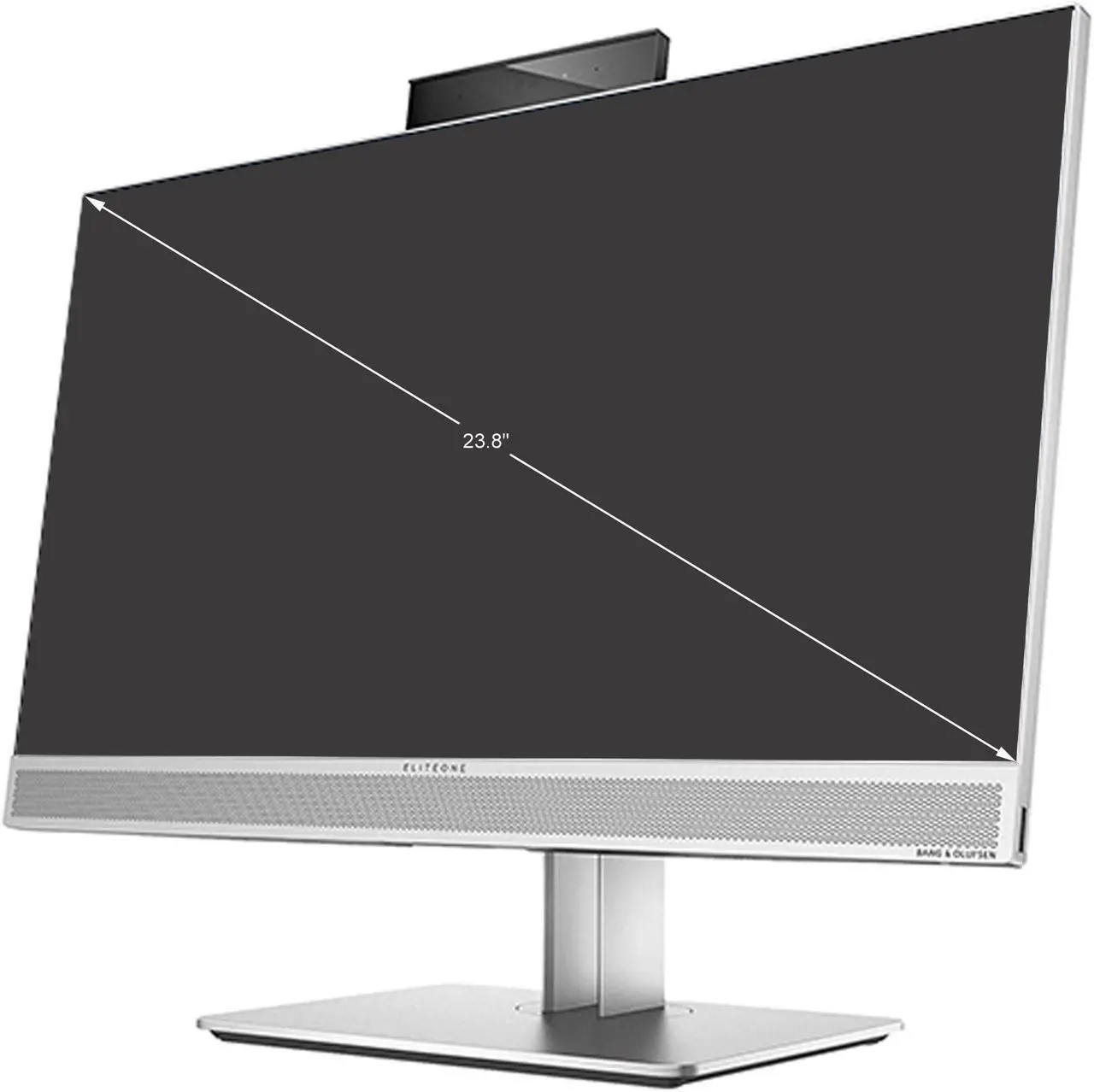

• Size: 23.8-inch diagonal
• Standard Resolution: Full HD 1920x1080 (FHD)
• High-End Option: QHD 2560x1440 (available on premium configurations)
• Panel Types:
  • FHD IPS Anti-Glare (1920x1080) - 250 nits
  • FHD IPS Touchscreen (1920x1080) - 250 nits, 10-point multi-touch
  • QHD IPS Anti-Glare (2560x1440) - 300 nits, 100% sRGB
  • FHD IPS Privacy Screen (1920x1080) - 700 nits, HP Sure View integrated
• Brightness: 250-300 nits (standard), 700 nits (privacy screen)
• Color Gamut: 72% NTSC / 100% sRGB (on QHD and premium FHD models)
• Viewing Angles: 178° horizontal and vertical (IPS technology)
• Bezel: Ultra-thin bezel design (micro-edge display)
• Touch Technology: Projected capacitive touch (on touchscreen models)

Graphics

• Integrated Graphics: Intel HD Graphics 530
• Base Frequency: 350 MHz
• Max Dynamic Frequency: 1.15 GHz
• Execution Units: 24
• Video Memory: Shared system memory
• Max Resolution: 4096x2304 @ 60Hz (DisplayPort)
• DirectX Support: DirectX 12
• OpenGL Support: OpenGL 4.4
• Display Outputs: Supports internal display + up to 2 external displays
• Video Decode: Hardware accelerated 4K H.264, HEVC 8-bit, VP9 8-bit
• Optional Graphics: AMD Radeon R5 430 (2GB GDDR5) discrete GPU available on some configurations

Memory (RAM)

• Capacity: 8GB DDR4 (as configured)
• Type: DDR4-2133 (non-ECC, unbuffered)
• Slots: 2x UDIMM slots (user accessible via rear panel)
• Configuration: Typically 1x8GB (single channel) or 2x4GB (dual channel)
• Maximum Supported: 32GB (2x16GB) - official support
• Memory Technology: Dual-channel architecture (recommended for performance with 2 identical modules)
• Speed: 2133MHz (standard for Skylake processors)
• Note: Memory is easily accessible for upgrades without major disassembly

Storage

• Primary Storage: 256GB PCIe NVMe SSD
• Interface: PCIe Gen 3.0 x4 NVMe
• Form Factor: M.2 2280
• Storage Bays:
  • 1x M.2 slot (occupied by 256GB NVMe SSD)
  • 1x 2.5-inch drive bay (available for additional storage)
• Storage Expansion: Can add second drive (HDD or SSD) in 2.5-inch bay
• Other Storage Options: 128GB/512GB/1TB PCIe NVMe SSD, 500GB/1TB/2TB SATA HDD
• Hybrid Options: Intel Optane Memory acceleration available on some configurations
• RAID Support: Not available in standard configurations

Operating System

• Pre-installed: Windows 10 Pro 64-bit
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: BitLocker, Remote Desktop, Group Policy, Domain Join, Hyper-V
• Windows 11 Compatibility: Not officially supported (6th Gen CPU, but may work with TPM 2.0 and Secure Boot)
• Downgrade Rights: Windows 7 Professional available at launch
• Linux Compatibility: Certified for Ubuntu, RHEL, SUSE Linux Enterprise

Connectivity

• Ethernet: Intel I219-LM Gigabit Ethernet (10/100/1000) with vPro support
• Wireless: Intel Dual Band Wireless-AC 8265 (802.11ac, 2x2) + Bluetooth 4.2
• Wi-Fi Speed: Up to 867 Mbps (5GHz) or 300 Mbps (2.4GHz)
• Bluetooth: Bluetooth 4.2 with A2DP, LE support
• Mobile Broadband: Optional LTE-Advanced (Fibocom L830-EB or similar)
• Wake-on-LAN: Supported
• LAN Features: Wake on LAN, PXE boot, Energy Efficient Ethernet

Ports & Connectors

• Side/Front Ports:
  • 2x USB 3.1 Gen 1 Type-A (5 Gbps)
  • 1x USB 3.1 Gen 1 Type-C (5 Gbps, with DisplayPort 1.2)
  • 1x 3.5mm headphone/microphone combo jack
  • SD card reader (on some models)
• Rear Ports:
  • 4x USB 3.1 Gen 1 Type-A (5 Gbps)
  • 2x USB 2.0 (480 Mbps)
  • 1x HDMI-out (supports 1920x1080 @ 60Hz or 4K @ 30Hz)
  • 1x DisplayPort 1.2
  • 1x RJ-45 Ethernet
  • 1x 3.5mm line-out
  • 1x 3.5mm microphone-in
  • Optional Serial port (requires optional bracket)
  • Kensington lock slot
  • AC power input

Audio

• Audio System: Audio by Bang & Olufsen
• Speakers: Dual front-facing stereo speakers
• Speaker Power: 2x 3W speakers with HP Audio Boost
• Audio Codec: Realtek ALC221
• Microphone: Dual array digital microphones with noise reduction
• Audio Features: HP Noise Cancellation Software, DTS Studio Sound
• External Audio: Supports external speakers and headphones via audio jacks

Camera & Communication

• Webcam: HP Wide Vision FHD camera (1080p)
• Camera Resolution: 2.1MP (1920x1080)
• Camera Features: Temporal noise reduction, low-light enhancement, privacy shutter
• Optional: IR camera for Windows Hello facial recognition
• Microphone: Dual array digital microphones with AI-based noise cancellation
• Video Conferencing: Optimized for Microsoft Teams, Skype for Business, Zoom

Power Supply

• Type: External power adapter
• Wattage: 150W or 180W (depending on configuration)
• Efficiency: 80 PLUS Gold certified
• Input Voltage: 100-240V AC, 50-60Hz
• Power Cord: Included (region specific)

Security Features

• TPM: TPM 2.0 embedded security chip
• Fingerprint Reader: Integrated fingerprint reader (optional)
• Smart Card Reader: Optional contact smart card reader
• BIOS Security: HP Sure Start Gen5, Secure Boot, BIOS passwords
• HP Security Features: HP Sure Click, HP Sure Recover, HP Sure Admin, HP DriveLock
• Intel Security: Intel vPro with Active Management Technology (AMT)
• Physical Security: Kensington lock slot, chassis intrusion detection
• Camera Security: Privacy camera with sliding shutter (on some models)

Software & Management

• Pre-installed Software: HP Support Assistant, HP Client Security Manager, HP Performance Advisor
• Management: HP Manageability Integration Kit, Intel vPro with AMT 11.0
• Remote Management: Compatible with HP Manageability Center, Microsoft Endpoint Manager
• Cloud Management: HP Device as a Service (DaaS) ready

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Relative Humidity: 20% to 80% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 28 dBA typical (idle), 33 dBA under load

Warranty & Support

• Standard Warranty: 3-year limited warranty (parts, labor, and onsite service)
• Support Hours: 24/7 for critical issues, business hours for others
• Onsite Service: Next business day (in supported locations)
• Extended Warranty: Available up to 5 years
• Accidental Damage Protection: Optional HP Care Pack

Certifications & Compliance

• ENERGY STAR 7.0 certified
• EPEAT Gold (depending on configuration)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified for Windows 10

What's in the Box

• HP EliteOne 800 G3 All-in-One Desktop
• External power adapter and power cord
• Wireless keyboard and mouse (HP Elite or Premium Business series)
• Documentation kit
• Warranty card

Performance & Business Use

• Target Use: Executive offices, conference rooms, financial trading, healthcare, design work
• Recommended For: Business executives, financial analysts, designers, healthcare professionals
• CPU Performance: Good for business applications, multitasking, and moderate computational tasks
• Memory Capacity: 8GB is adequate for most business applications; upgrade to 16GB for heavy multitasking
• Storage Performance: 256GB NVMe SSD provides fast boot times and application loading
• Display Quality: 23.8-inch IPS provides excellent viewing angles and color accuracy

Upgrade Potential

• RAM Upgrade: Easy access via rear panel, supports up to 32GB (2x16GB)
• Storage Upgrade: Can add second drive in 2.5-inch bay or replace existing NVMe SSD
• Wi-Fi Upgrade: M.2 Wi-Fi card replaceable with newer standards
• CPU Upgrade: Possible (standard LGA 1151 socket) but requires significant disassembly
• Limitations: No PCIe expansion for discrete graphics cards

Important Notes & Recommendations

• Storage Capacity: 256GB SSD provides fast performance but limited storage; consider adding 1TB HDD in second bay
• Memory Configuration: Consider upgrading to 16GB for better multitasking and future-proofing
• Display Options: QHD display recommended for design work and detailed financial applications
• Windows 11: Verify TPM 2.0 and Secure Boot are enabled if attempting Windows 11 upgrade
• Business Features: Intel vPro provides enterprise management and security capabilities
• Compared to EliteOne 800 G2: G3 has 6th Gen processors vs 4th Gen in G2, and improved connectivity
• Compared to ProOne 400 G2: EliteOne has premium features, better display options, and more security features
• Video Conferencing: FHD camera and dual microphones provide excellent video call quality
• Audio Quality: Bang & Olufsen audio system provides better sound quality than standard AIO speakers
• Value Proposition: Premium business all-in-one with enterprise features and excellent display options
