Executive Summary

The HP EliteOne 840 G9 represents HP's latest generation of business all-in-one PCs, featuring 12th and 13th Gen Intel processors in a compact 23.8-inch form factor. Designed for the modern hybrid workplace, it incorporates AI-powered features, enhanced security with HP's 6th generation Sure Start technology, and sustainability-focused design. This model balances performance with energy efficiency, making it ideal for corporate environments prioritizing security, manageability, and user wellbeing.

Detailed Specifications

1. Display

• Size: 23.8-inch diagonal
• Resolution: Full HD (1920 x 1080)
• Panel Type: IPS, Anti-Glare, LED-backlit
• Touch Option: Optional 10-point multi-touch
• Technology: Low Blue Light with Eyesafe® certification
• Brightness: 250 nits standard, 400 nits high-brightness option
• Refresh Rate: 60Hz standard, 75Hz optional
• Webcam: HP Privacy Camera 5MP with Computer Vision technology

2. Processor (CPU)

Generation: 12th or 13th Generation Intel Core (Alder Lake/Raptor Lake)

Common Configurations:

• Intel Core i5-12500T (6P+4E cores, 1.8-4.4 GHz)
• Intel Core i5-13500T (6P+8E cores, 1.6-4.6 GHz) - Most Common
• Intel Core i7-12700T (8P+4E cores, 1.4-4.7 GHz)
• Intel Core i7-13700T (8P+8E cores, 1.4-4.9 GHz)

Architecture: Hybrid Performance/Efficiency Core design

Business Features: Intel vPro Enterprise with Active Management Technology

3. Memory (RAM)

• Type: DDR4-3200 SO-DIMM
• Speed: 3200 MHz
• Slots: 2 x user-accessible SO-DIMM slots
• Maximum: 64GB (2x32GB)
• Standard Configurations: 8GB, 16GB, 32GB

4. Storage

• Primary Storage: M.2 2280 PCIe Gen4 NVMe SSD
• Secondary Storage: Optional 2.5-inch SATA bay
• Interface Speed: PCIe 4.0 x4 (up to 7,000 MB/s read speeds)

Common Configurations:

• 256GB/512GB PCIe Gen4 NVMe SSD
• 1TB PCIe Gen4 NVMe SSD
• 512GB NVMe SSD + 1TB 5400RPM HDD

Security: HP Drive Encryption, Optional Self-Encrypting Drives (SED)

5. Graphics

• Integrated: Intel Iris Xe Graphics (on 12th/13th Gen CPUs)
• Dedicated Option: NVIDIA RTX A500 (4GB GDDR6) - Professional workstation GPU
• Video Outputs: HDMI 2.1 out, DisplayPort 1.4 via USB-C
• Display Support: Up to 4 external displays with discrete GPU

6. Audio & Communications

• Speakers: Dual front-facing speakers with Audio by Bang & Olufsen
• Microphone: Quad-array digital microphones with AI noise suppression
• Audio Features: HP Dynamic Audio, HP Noise Cancellation 2.0
• Audio Jack: Combo headphone/microphone jack

7. Connectivity & Ports

Front/Side Ports:

• 2 x USB 3.2 Gen 2 Type-A (10 Gbps)
• 1 x USB 3.2 Gen 2 Type-C (10 Gbps, data only)
• Headphone/microphone combo jack

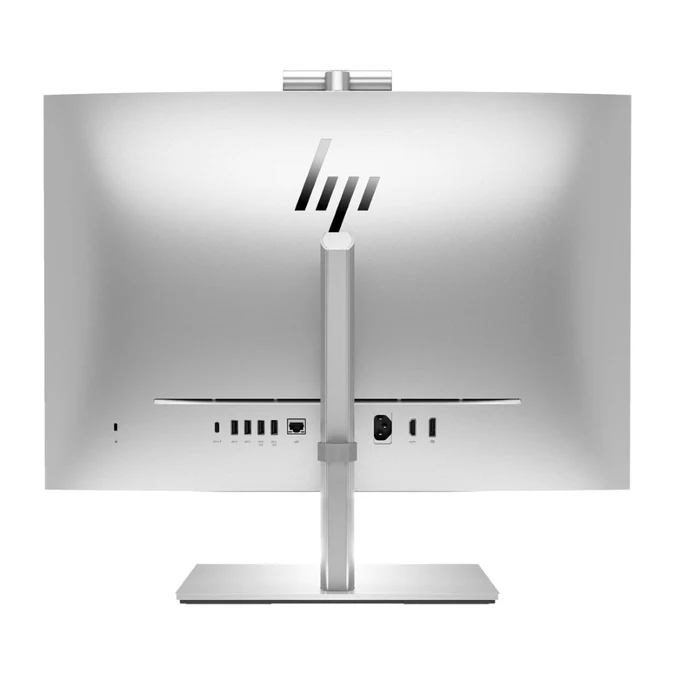

Rear Ports:

• 2 x USB 3.2 Gen 2 Type-A
• 2 x USB 2.0 Type-A
• 1 x USB4 Type-C with Thunderbolt 4 (40 Gbps, 100W PD)
• 1 x HDMI 2.1 out
• RJ-45 2.5 Gigabit Ethernet (Intel I226-V)
• DC power input

Wireless: Intel Wi-Fi 6E AX211 (802.11ax 2x2) + Bluetooth 5.3

Docking: HP Thunderbolt Dock G4 compatible

8. Security & Manageability

• HP Sure Start Gen6: Industry-leading self-healing BIOS with AI threat detection
• HP Wolf Security: Hardware-enforced endpoint security suite
• Authentication: TPM 2.0, Windows Hello (IR camera), optional Fingerprint Reader
• Camera Privacy: Electronic camera kill switch + physical shutter
• Management: HP Manageability Integration Kit, HP Device as a Service ready

9. Ergonomics & Design

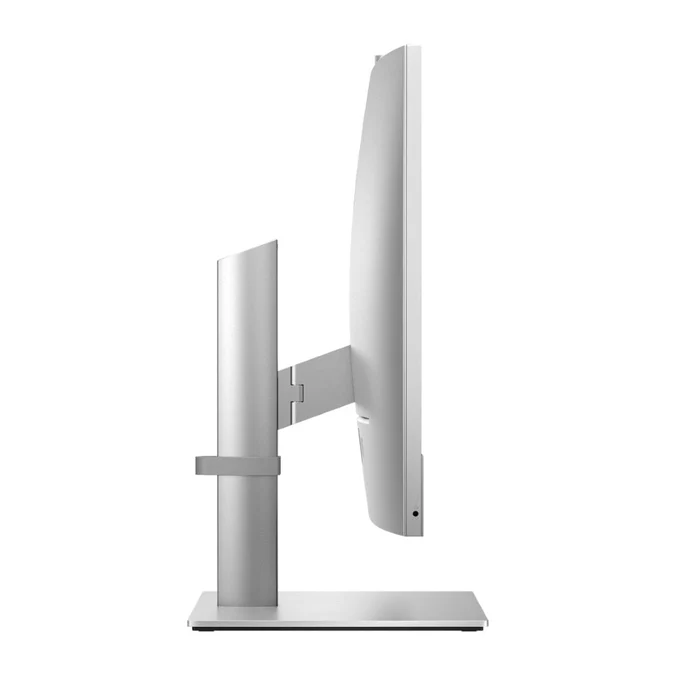

• Stand: Height-adjustable (110mm), tilt (-5° to 30°), swivel (±180°)
• VESA Mount: 100 x 100 mm compatible
• Dimensions: ~540.7 x 397.5 x 57.9 mm (without stand)
• Weight: ~6.1 kg (13.4 lbs) with stand
• Sustainability: EPEAT Gold, ENERGY STAR 8.0, 85%+ recyclable
• Materials: 50% recycled plastics, ocean-bound plastics in packaging

10. Power & Environmental

• Power Supply: 150W external power adapter
• Energy Efficiency: ENERGY STAR 8.0, 80 PLUS Gold power adapter
• Power Consumption: Typical 25W, Maximum 135W
• Certifications: EPEAT Gold, TCO Certified Edge 9.0

11. Operating System & Support

• Pre-installed OS: Windows 11 Pro
• Alternative OS: Windows 10 Pro downgrade option
• Recovery: HP Cloud Recovery Manager, HP Image Assistant
• Warranty: 3-year limited warranty standard

Key Features & Target Audience

Unique Selling Points:

• Hybrid Processor Architecture: 12th/13th Gen Intel with Performance/Efficiency cores
• AI-Enhanced Camera: Computer Vision for auto-framing and presenter tracking
• HP Sure Start Gen6: Most advanced BIOS protection available
• Low Blue Light Display: Eyesafe® certified for reduced eye strain
• Sustainable Design: High recycled content and energy efficient

Ideal For:

• Corporate knowledge workers and managers
• Hybrid workplace hot desks and meeting rooms
• Educational institutions and training centers
• Healthcare clinic workstations
• Financial services and professional services firms
• Organizations with strong sustainability goals

Limitations:

• No 27-inch Option: Available only in 23.8-inch size
• Limited GPU Options: Professional NVIDIA RTX A500 only
• No OLED Option: Standard IPS panels only
• Premium Security Focus: Higher cost for enterprise security features

Modern Use Assessment (2024)

• Future-Proof Performance: 12th/13th Gen processors with hybrid architecture
• AI-Ready: Computer Vision camera and AI noise cancellation
• Hybrid Work Optimized: Enhanced video conferencing features
• Sustainability Leader: Meets strict corporate environmental goals

Final Verdict:

The HP EliteOne 840 G9 23.8-inch AIO represents the current pinnacle of HP's business all-in-one design philosophy, blending cutting-edge 12th/13th Gen Intel processors with HP's most advanced security and sustainability features. Its focus on user wellbeing through Low Blue Light technology, AI-enhanced collaboration tools, and reduced environmental impact makes it particularly relevant for modern organizations. While offering slightly less screen real estate than its 27-inch counterparts, it delivers exceptional performance, security, and manageability in a compact, sustainable package ideal for today's evolving workplace environments.
