Detailed Technical Specifications

Product Information

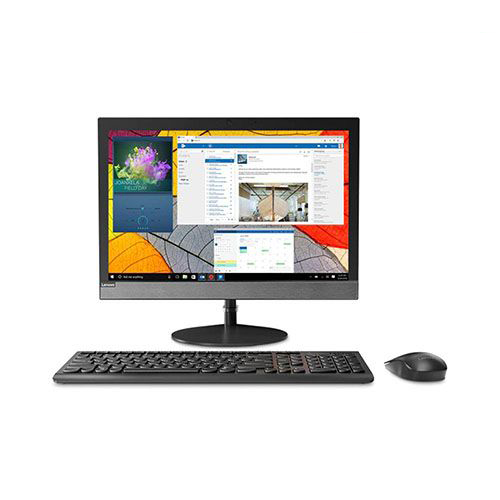

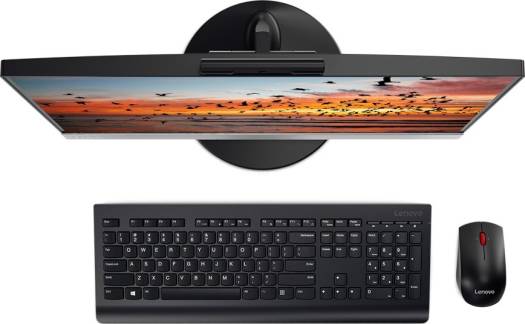

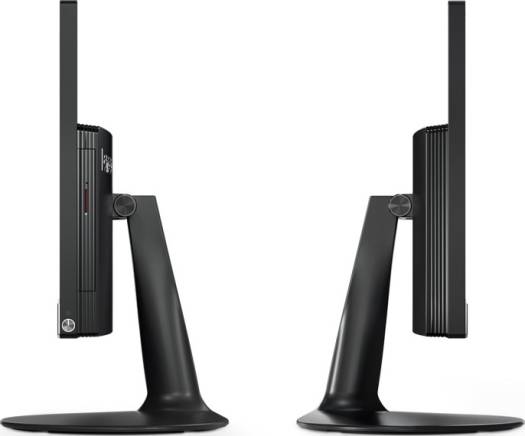

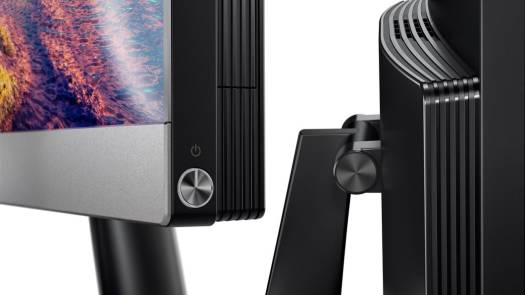

• Product Name: Lenovo V410z All-in-One Desktop PC
• Model: V410z
• Part Number: 10QV0004UK
• Brand: Lenovo
• Series: V Series (Value/Business All-in-One)
• Category: All-in-One Desktop PC
• Release Year: 2017
• Form Factor: All-in-One (integrated display and computer)
• Dimensions: 20.0 x 15.4 x 2.2 inches (508 x 391 x 56 mm) with stand
• Weight: 16.5 lbs (7.5 kg) with stand
• Country Variant: UK model (likely with UK keyboard and power cord)

Processor (CPU)

• Model: Intel Core i5-7400T
• Generation: 7th Generation (Kaby Lake)
• Cores/Threads: 4 cores, 4 threads (no Hyper-Threading)
• Base Frequency: 2.4 GHz
• Max Turbo Frequency: 3.0 GHz (single core)
• Cache: 6MB Intel Smart Cache
• Socket: LGA 1151 (v1)
• TDP: 35W (low-power "T" variant)
• Architecture: 14nm
• Intel Technologies: Intel Turbo Boost 2.0, VT-x, VT-d, AES-NI
• Note: "T" variant optimized for low power consumption in all-in-one systems
• Other Possible CPUs: i3-7100T, i5-7500T, i7-7700T (depending on configuration)

Display

• Size: 21.5-inch diagonal
• Resolution: Full HD 1920x1080
• Panel Type: IPS or VA LCD with Anti-Glare coating
• Aspect Ratio: 16:9
• Brightness: 250-300 nits typical
• Viewing Angles: 178° horizontal and vertical (if IPS panel)
• Color Depth: 16.7 million colors
• Touch Option: Not available on this model (non-touch)
• Bezel: Standard bezel design

Graphics

• Integrated Graphics: Intel HD Graphics 630
• Base Frequency: 350 MHz
• Max Dynamic Frequency: 1.0 GHz
• Execution Units: 24
• Video Memory: Shared system memory
• Max Resolution: 4096x2304 @ 60Hz (HDMI)
• DirectX Support: DirectX 12
• OpenGL Support: OpenGL 4.5
• Display Outputs: Supports internal display + 1-2 external displays
• Video Decode: Hardware accelerated 4K H.264, HEVC 8-bit, VP9 8-bit

Memory (RAM)

• Capacity: 4GB DDR4 (as configured)
• Type: DDR4-2400 (non-ECC, unbuffered)
• Slots: 2x SO-DIMM slots (typically 1x4GB configuration)
• Maximum Supported: Up to 16GB (2x8GB)
• Memory Technology: Dual-channel architecture (when using 2 identical sticks)
• Speed: 2400MHz (standard for Kaby Lake processors)
• Note: 4GB is minimal for Windows 10; consider upgrading to 8GB or 16GB

Storage

• Primary Storage: 500GB SATA Hard Disk Drive
• Interface: SATA 6Gb/s
• Speed: 5400RPM (typical for budget configurations)
• Form Factor: 2.5-inch (laptop-style HDD) or 3.5-inch (depends on internal layout)
• Storage Bays: 1x drive bay (occupied by HDD)
• Storage Expansion: Can replace existing HDD with larger HDD or SSD
• M.2 Support: Not available on this model (SATA only)
• Other Storage Options: 1TB HDD, 128GB/256GB SSD (depending on configuration)

Operating System

• Pre-installed: Windows 10 Pro 64-bit
• Recovery: Lenovo Recovery Media, Windows Recovery Environment
• Windows Features: BitLocker, Remote Desktop, Group Policy, Domain Join (Pro features)
• Windows 11 Compatibility: Limited - CPU is 7th Gen (not officially supported for Windows 11)
• Upgrade Path: Can upgrade to Windows 11 via workarounds, but not officially supported

Connectivity

• Ethernet: Realtek Gigabit Ethernet (10/100/1000)
• Wireless: 802.11ac Wi-Fi (2x2) + Bluetooth 4.2
• Wi-Fi Speed: Up to 867 Mbps (5GHz) or 300 Mbps (2.4GHz)
• Bluetooth: Bluetooth 4.2 with A2DP, LE support
• Wake-on-LAN: Supported
• LAN Features: Wake on LAN, PXE boot

Ports & Connectors

• Front/Side Ports:
  • 2x USB 3.1 (5 Gbps)
  • 1x 3.5mm headphone jack
  • 1x 3.5mm microphone jack
  • SD card reader (may be present on some models)

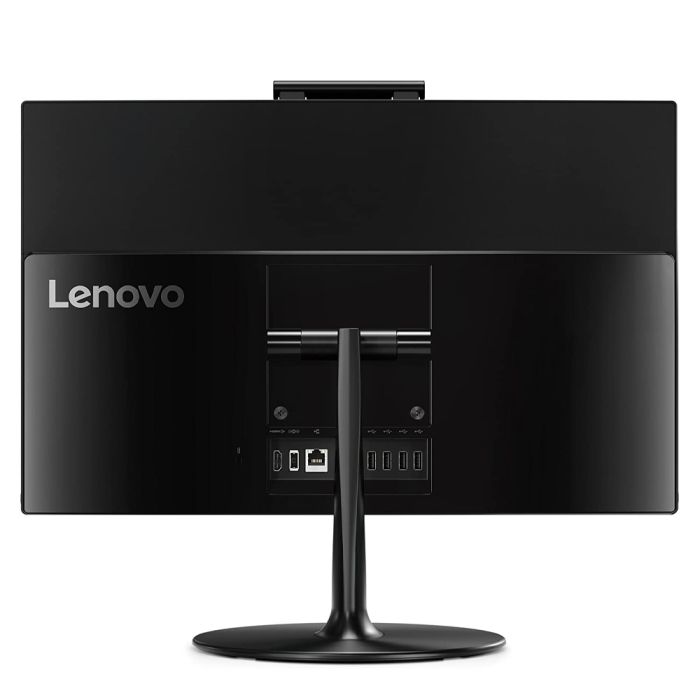

• Rear Ports:
  • 2x USB 3.1 (5 Gbps)
  • 2x USB 2.0 (480 Mbps)
  • 1x HDMI-out (supports 1920x1080 @ 60Hz or 4K @ 30Hz)
  • 1x VGA-out (for legacy displays, may be present)
  • 1x RJ-45 Ethernet
  • 1x 3.5mm line-out
  • Kensington lock slot
  • AC power input

Optical Drive

• Type: Tray-load DVD±RW
• Write Speeds: DVD±R: 8x, DVD±R DL: 6x, CD-R: 24x
• Read Speeds: DVD-ROM: 8x, CD-ROM: 24x
• Formats Supported: DVD±R, DVD±R DL, DVD±RW, CD-R, CD-RW

Audio

• Audio System: Integrated stereo speakers
• Speaker Power: 2x 3W speakers
• Audio Codec: Realtek ALC233 or similar
• Microphone: Integrated digital microphone
• Audio Features: HD Audio, noise cancellation

Camera & Communication

• Webcam: 720p HD camera (typical for this model)
• Camera Resolution: 1MP (1280x720)
• Microphone: Integrated digital microphone array
• Camera Features: Fixed focus, privacy shutter (may be manual slide)

Power Supply

• Type: External power adapter
• Wattage: 120W
• Input Voltage: 100-240V AC, 50-60Hz
• Efficiency: 80 PLUS certified (likely Bronze or White)
• Power Cord: UK 3-pin plug (for 10QV0004UK model)

Security Features

• Physical Security: Kensington lock slot
• BIOS Security: Password protection, UEFI BIOS with secure boot
• TPM: TPM 1.2 or 2.0 (likely present for Windows 10 Pro)
• Other Security: Chassis intrusion detection (if available)

Software & Management

• Pre-installed Software: Lenovo Companion, Lenovo Settings, McAfee LiveSafe (trial)
• Management: Compatible with Lenovo Device Manager, Microsoft Endpoint Manager
• Remote Management: Not typically available (no Intel vPro on consumer SKU)

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Relative Humidity: 20% to 80% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 30 dBA typical (idle), 36 dBA under load

Warranty & Support

• Standard Warranty: 1-year limited warranty (parts and labor)
• Warranty Type: Carry-in or depot service
• Support Hours: Business hours
• Extended Warranty: Available for purchase
• Accidental Damage Protection: Optional

Certifications & Compliance

• ENERGY STAR certified (likely 7.0)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified for Windows 10

What's in the Box

• Lenovo V410z All-in-One Desktop
• External power adapter and UK power cord
• Wireless keyboard and mouse (Lenovo Preferred Pro or similar)
• Documentation kit
• Warranty card

Performance & Usage

• Target Use: Office productivity, web browsing, business applications, education
• Recommended For: Small business, home office, educational institutions, reception areas
• Graphics Performance: HD Graphics 630 suitable for office applications, 1080p video playback
• Not Recommended For: Gaming, video editing, 3D rendering, heavy multitasking
• Space Efficiency: All-in-one design reduces cable clutter and saves desk space

Upgrade Potential

• RAM Upgrade: Easy access via rear panel, supports up to 16GB (2x8GB DDR4)
• Storage Upgrade: Can replace HDD with SSD for significant performance improvement
• Wi-Fi Upgrade: M.2 Wi-Fi card may be replaceable with newer standards
• CPU Upgrade: Possible but not recommended (requires significant disassembly)
• Limitations: No PCIe expansion, integrated graphics only

Important Notes & Recommendations

• Memory: 4GB RAM is minimal for Windows 10; strongly recommend upgrading to at least 8GB
• Storage: 500GB HDD is adequate for basic storage but slow; consider SSD upgrade
• Display: 21.5" Full HD is good for office work and general use
• Windows 11: Not officially supported due to 7th Gen CPU; consider sticking with Windows 10
• Business Features: Windows 10 Pro includes useful features for business environments
• Compared to V310z: V410z has larger display (21.5" vs 19.5"), newer CPU (7th vs 6th Gen)
• Compared to V510z: V510z typically has 8th/9th Gen CPUs and more modern features
• Video Conferencing: 720p camera adequate for basic video calls
• Energy Efficiency: 35W TDP CPU helps reduce power consumption
• Value Proposition: Affordable all-in-one with Windows 10 Pro for business/education use
