Executive Summary

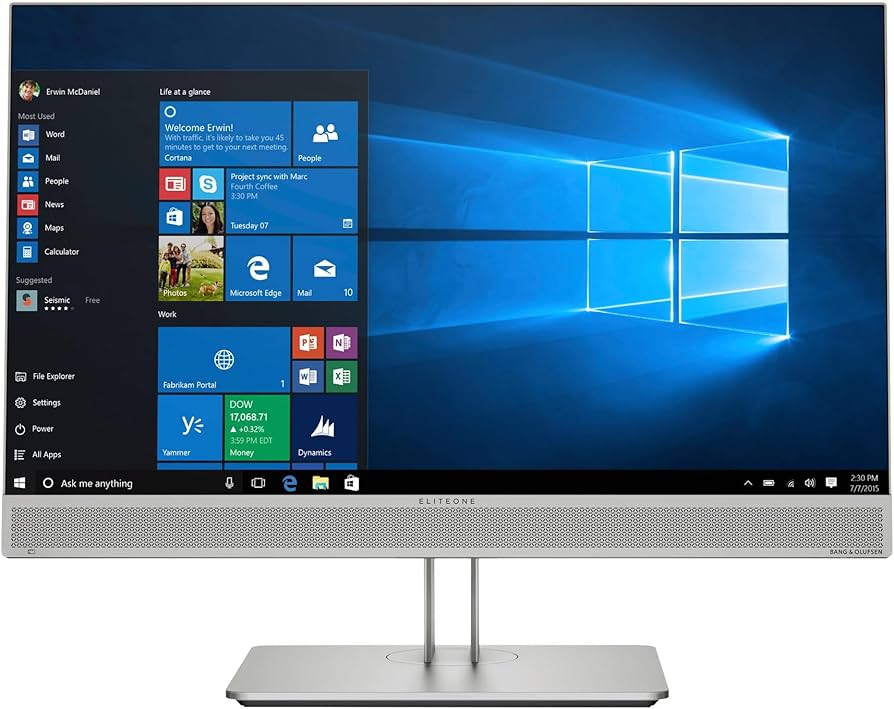

The HP EliteDesk 800 G5 All-in-One is a premium business AiO that integrates a 23.8-inch or 27-inch Full HD display with powerful 8th/9th Generation Intel desktop processors in a sleek, professional chassis. As part of HP's Elite series, it emphasizes top-tier security (HP Sure Start), advanced manageability (Intel vPro), and enterprise features not found in consumer or Pro-class AiOs. It's designed for executive offices, reception areas, and professional settings where space, security, and aesthetics are paramount.

Detailed Specifications

1. Processor (CPU)

• Generation: 8th/9th Generation Intel Core (Coffee Lake) - Desktop-class, not mobile.
• Type: Primarily T-series low-power variants (35W-65W TDP) for thermal management in the AiO form factor.

Common Configurations:

• Intel Core i5-8500T (6 cores, 6 threads, 2.1 - 3.5 GHz) - Most Common
• Intel Core i7-8700T (6 cores, 12 threads, 2.4 - 4.0 GHz) - High Performance
• Intel Core i3-8100T (4 cores, 4 threads, 3.1 GHz)

Business Features: Intel vPro Technology with Active Management Technology (AMT) on i5/i7 models.

2. Display

• Size Options: 23.8-inch or 27-inch diagonal
• Resolution: Full HD (1920 x 1080) - No 4K option for this model
• Panel Technology: IPS, Anti-Glare, 250 nits brightness
• Touch Option: 10-point capacitive multi-touch available (optional)
• Color Coverage: 72% NTSC (~99% sRGB)
• Webcam: HP Privacy Camera - 5MP IR camera with physical privacy shutter, supports Windows Hello facial recognition
• Bezels: Ultra-slim borders on three sides for modern look

3. Memory (RAM)

• Type: DDR4 SO-DIMM
• Speed: 2666 MHz
• Slots: 2 x user-accessible SO-DIMM slots (via rear service panel)
• Maximum: 64GB (2x32GB)
• Standard Configurations: 8GB or 16GB (often single module)

4. Storage

• Primary Storage: M.2 2280 PCIe NVMe Gen3 SSD (128GB to 1TB)
• Secondary Storage: One 2.5-inch SATA bay for HDD or SSD (commonly 500GB/1TB HDD or 256GB/512GB SSD)
• RAID Support: Not typically available in AiO form factor
• Security: Optional Self-Encrypting Drives (SED) with HP Drive Encryption

5. Graphics

• Integrated: Intel UHD Graphics 630
• Dedicated Option: AMD Radeon RX 560X with 4GB GDDR5 memory (discrete GPU for enhanced performance)
• Video Output: HDMI-out 1.4 port to connect an external monitor
• Multi-Display: Supports extended desktop with the built-in display + one external monitor

6. Audio & Communications

• Speakers: Dual front-facing speakers with Audio by Bang & Olufsen
• Microphone: Dual-array digital microphones with noise reduction
• Audio Features: HP Audio Boost, DTS Studio Sound
• Audio Jack: Headphone/Microphone combo jack

7. Connectivity & I/O

Front/Side Ports:

• 2 x USB 3.1 Gen 1 Type-A
• Headphone/Microphone combo jack

Rear Ports:

• 4 x USB 3.1 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x USB 3.1 Gen 1 Type-C with DisplayPort Alt Mode
• HDMI-out 1.4
• RJ-45 Gigabit Ethernet (Intel I219-LM)
• DC power input

Wireless: Optional Intel Dual Band Wireless-AC 9560 (802.11ac 2x2) + Bluetooth 5.0

Expansion: No internal PCIe slots; all connectivity via built-in ports

8. Security & Manageability (Elite Features)

• HP Sure Start Gen4: Self-healing BIOS with intrusion detection (enterprise-grade protection)
• HP Client Security Suite: Includes BIOS configuration, Drive Encryption, and Sanitizer
• Authentication: TPM 2.0 chip, Windows Hello (via IR camera), optional Smart Card Reader
• Camera Privacy: Physical sliding shutter for the webcam
• Physical Security: Kensington lock slot, lockable rear service panel
• Management: Intel vPro with AMT 11.8 for remote management (on select configurations)

9. Ergonomics & Design

• Stand: Fully adjustable - Height, tilt, swivel, and pivot (portrait mode)
• VESA Mount: 100 x 100 mm compatible (stand is removable)
• Dimensions (27"): ~613.7 x 478.2 x 62.1 mm (without stand)
• Weight: ~11.9 kg (26.2 lbs) with stand
• Build Quality: Premium materials with professional aesthetic

10. Operating System & Support

• Pre-installed OS: Windows 10 Pro 64-bit
• Windows 11 Compatibility: Officially supported via upgrade (TPM 2.0 + 8th Gen CPU meets requirements)
• Recovery: HP Cloud Recovery, local recovery partition
• Warranty: Standard 3-year limited warranty

Modern Use Assessment (2024)

Strengths for Today's Use:

• Desktop-Class CPU Power: 6-core i5/i7 T-series CPUs still offer excellent performance for office work.
• Superior Security: HP Sure Start remains a valuable enterprise security feature.
• Excellent Ergonomics: Fully adjustable stand is a premium feature rarely found in business AiOs.
• Windows 11 Ready: Fully compatible with official upgrade path.

Recommended Upgrades for Optimal Performance:

• SSD is Essential: If equipped with an HDD, replace with a SATA SSD or add an NVMe SSD if not present.
• Dual-Channel RAM: Upgrade to 16GB (2x8GB) for significantly better performance.
• Wi-Fi 6: Replace the stock Wi-Fi 5 card with an Intel AX200 for modern wireless connectivity.

Ideal Use Cases Today:

• Executive office or manager workstation
• Healthcare front desk or clinic room
• Financial services or trading desk auxiliary display
• Reception or lobby information station
• Corporate conference room or collaboration space

Performance Notes:

• The AMD RX 560X discrete GPU option provides decent performance for light graphic design, CAD viewing, and casual gaming.
• The T-series CPUs are slightly slower than their full-power desktop counterparts but offer excellent performance-per-watt for the AiO form factor.

Final Verdict:

The HP EliteDesk 800 G5 AiO is a premium business solution that has aged well. Its combination of desktop-class processors, elite security features (Sure Start), and exceptional ergonomics make it stand out in the refurbished AiO market. For professional environments that value security, manageability, and a clean desk setup, it offers better long-term value than consumer AiOs or even Pro-class business AiOs. The fully adjustable stand and privacy camera are particularly valuable features that remain relevant today. With an SSD and adequate RAM upgrade, it continues to be a capable and secure workstation.
