Detailed Technical Specifications

Product Information

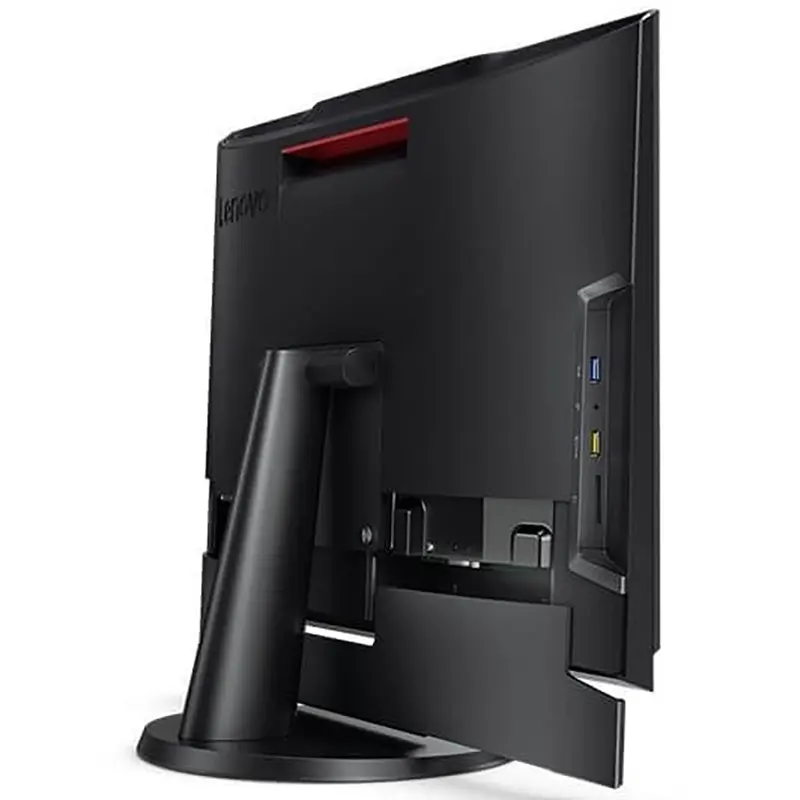

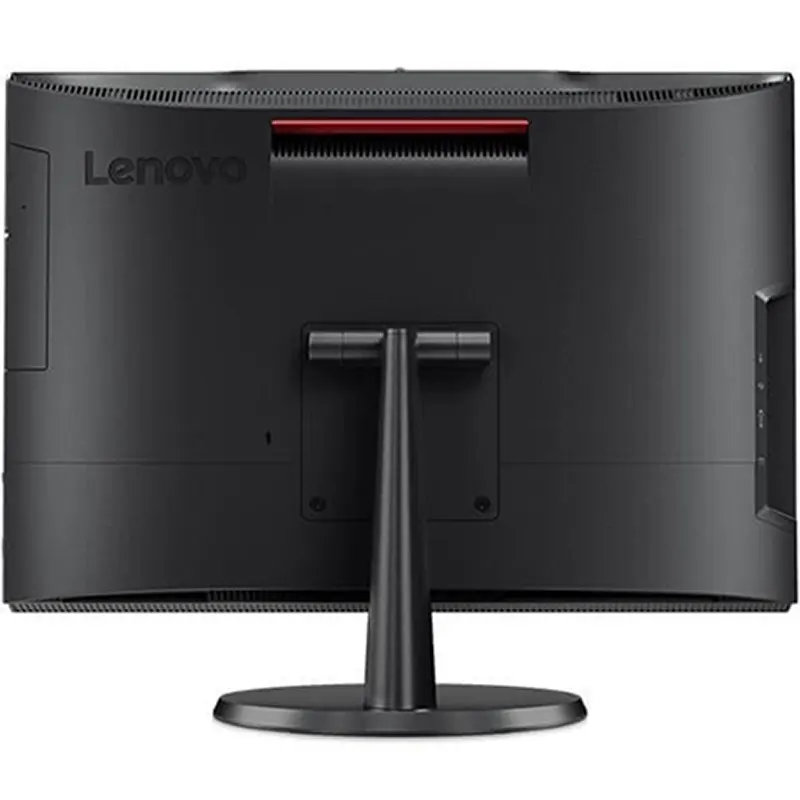

• Product Name: Lenovo V310z All-in-One Desktop Computer
• Model: V310z
• Brand: Lenovo
• Series: V Series (Value/Budget All-in-One)
• Category: All-in-One Desktop PC
• Release Year: 2016
• Form Factor: All-in-One (integrated display and computer)
• Dimensions: 18.7 x 14.8 x 2.0 inches (475 x 376 x 51 mm) with stand
• Weight: 15.4 lbs (7.0 kg) with stand
• Country of Origin: Ex-UK (export from United Kingdom)

Processor (CPU)

• Model: Intel Core i5-6400T or i5-6500T (typical for 6th Gen V310z)
• Generation: 6th Generation (Skylake)
• Cores/Threads: 4 cores, 4 threads (no Hyper-Threading)
• Base Frequency: 2.2 GHz (i5-6400T) or 2.5 GHz (i5-6500T)
• Max Turbo Frequency: 2.8 GHz (i5-6400T) or 3.1 GHz (i5-6500T)
• Cache: 6MB Intel Smart Cache
• Socket: LGA 1151 (v1)
• TDP: 35W (low-power "T" variant)
• Architecture: 14nm
• Intel Technologies: Intel Turbo Boost 2.0, VT-x, VT-d, AES-NI
• Note: No Intel vPro support (consumer/budget SKU)
• Other Possible CPUs: i3-6100T, Pentium G4400T, Celeron G3900T

Display

• Size: 19.5-inch diagonal
• Resolution: HD (1600x900) or HD (1366x768) - varies by configuration
• Panel Type: TN or VA LCD with Anti-Glare coating
• Aspect Ratio: 16:9
• Brightness: 200-250 nits typical
• Viewing Angles: 160°/170° (typical for TN panel)
• Color Depth: 16.7 million colors (6-bit + FRC)
• Touch Option: Not available on this model
• Bezel: Standard bezel, not thin

Graphics

• Integrated Graphics: Intel HD Graphics 530
• Base Frequency: 350 MHz
• Max Dynamic Frequency: 950 MHz (i5-6400T) or 1050 MHz (i5-6500T)
• Execution Units: 24
• Video Memory: Shared system memory
• Max Resolution: 4096x2304 @ 60Hz (HDMI/DisplayPort)
• DirectX Support: DirectX 12
• OpenGL Support: OpenGL 4.4
• Display Outputs: Supports internal display + 1 external display
• Video Decode: Hardware accelerated 4K H.264, HEVC 8-bit, VP9 8-bit

Memory (RAM)

• Capacity: 8GB DDR4 (as configured)
• Type: DDR4-2133 (non-ECC, unbuffered)
• Slots: 2x SO-DIMM slots (typically 1x8GB configuration)
• Maximum Supported: Up to 16GB (2x8GB)
• Memory Technology: Dual-channel architecture (when using 2 sticks)
• Speed: 2133MHz (standard for Skylake non-overclocked systems)

Storage

• Primary Storage: 1TB SATA Hard Disk Drive
• Interface: SATA 6Gb/s
• Speed: 5400RPM (typical for budget configurations)
• Form Factor: 2.5-inch (laptop-style HDD)
• Storage Bays: 1x 2.5-inch drive bay (occupied by HDD)
• Storage Expansion: Limited - only one drive bay, but can replace with SSD or larger HDD
• M.2 Support: Not available on this model
• Other Storage Options: 500GB HDD, 128GB SSD (depending on configuration)

Operating System

• Pre-installed: FreeDOS (open-source DOS-compatible operating system)
• Note: No Windows license included - user must purchase and install Windows separately
• Windows Compatibility: Compatible with Windows 10 (7th Gen and older require specific drivers)
• Windows 11 Compatibility: Not officially supported (requires TPM 2.0, Secure Boot, 8th Gen+ CPU)
• Linux Compatibility: Generally good with mainstream Linux distributions

Connectivity

• Ethernet: Realtek Gigabit Ethernet (10/100/1000)
• Wireless: Not included standard (optional Wi-Fi card may be installed)
• Wi-Fi Option: 802.11ac Wi-Fi + Bluetooth 4.0 via M.2 card (optional extra)
• Bluetooth: Only if optional Wi-Fi card includes Bluetooth
• Wake-on-LAN: Supported

Ports & Connectors

• Front/Side Ports:
  • 2x USB 3.0 (5 Gbps)
  • 1x 3.5mm headphone jack
  • 1x 3.5mm microphone jack
• Rear Ports:
  • 2x USB 3.0 (5 Gbps)
  • 2x USB 2.0 (480 Mbps)
  • 1x HDMI-out (supports 1920x1080 @ 60Hz)
  • 1x VGA-out (for legacy displays)
  • 1x RJ-45 Ethernet
  • 1x 3.5mm line-out
  • Kensington lock slot
  • AC power input

Optical Drive

• Type: Tray-load DVD±RW
• Write Speeds: DVD±R: 8x, DVD±R DL: 6x, CD-R: 24x
• Read Speeds: DVD-ROM: 8x, CD-ROM: 24x
• Formats Supported: DVD±R, DVD±R DL, DVD±RW, CD-R, CD-RW

Audio

• Audio System: Integrated stereo speakers
• Speaker Power: 2x 2W speakers
• Audio Codec: Realtek ALC233 or similar
• Microphone: Integrated mono microphone
• Audio Features: Basic HD Audio

Camera & Communication

• Webcam: Optional (not included standard)
• Camera Resolution: If optional: 720p HD or 1MP
• Microphone: Integrated mono microphone (if no webcam)

Power Supply

• Type: External power adapter
• Wattage: 90W or 120W
• Input Voltage: 100-240V AC, 50-60Hz
• Efficiency: Not certified (basic efficiency)

Accessories Included

• Keyboard: Lenovo wired USB keyboard (basic model)
• Mouse: Lenovo wired USB optical mouse (basic model)
• Power Cord: Included (region specific: UK plug)
• Documentation: Minimal (quick start guide)

Security Features

• Physical Security: Kensington lock slot
• BIOS Security: Basic password protection
• TPM: Not available (consumer/budget model)
• Other Security: Basic UEFI BIOS with secure boot capability

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Relative Humidity: 20% to 80% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 32 dBA typical (idle), 38 dBA under load

Warranty & Support

• Standard Warranty: 6 months limited warranty
• Warranty Type: Return to base/depot service (not onsite)
• Support Hours: Limited (varies by region)
• Extended Warranty: Not typically available for export models
• Note: "Ex UK" means exported from UK, may have reduced warranty support

Certifications & Compliance

• CE Marking
• FCC Class B certified
• RoHS compliant
• WEEE compliant
• Energy Star may not be certified (depends on configuration)

What's in the Box

• Lenovo V310z All-in-One Desktop
• External power adapter and UK power cord
• Wired USB keyboard
• Wired USB mouse
• Quick start guide
• Warranty documentation

Performance & Usage

• Target Use: Basic computing, web browsing, office applications, education
• Recommended For: Home users, students, basic office tasks, digital signage, kiosks
• Graphics Performance: HD Graphics 530 suitable for basic applications, 720p video playback
• Not Recommended For: Gaming, photo/video editing, multitasking with many applications
• Space Efficiency: All-in-one design saves space compared to desktop + monitor

Upgrade Potential

• RAM Upgrade: Easy access via rear panel, supports up to 16GB (2x8GB)
• Storage Upgrade: Can replace HDD with SSD for significant performance improvement
• Wi-Fi Upgrade: Can add M.2 Wi-Fi card if slot is available
• CPU Upgrade: Possible but not recommended (requires significant disassembly)
• Limitations: No PCIe expansion, integrated graphics only, limited upgrade options

Important Notes & Recommendations

• Operating System: Must purchase and install Windows separately (or use Linux)
• Memory: 8GB is adequate for basic tasks; consider 16GB if running multiple applications
• Storage: 1TB HDD provides ample storage but slow performance; strongly recommend replacing with SSD
• Display: 19.5" HD display is adequate for basic use but not for detailed work
• Wi-Fi: No Wi-Fi included; use Ethernet or add Wi-Fi card/USB adapter
• Warranty: 6-month warranty is minimal; consider extended coverage if available
• Windows 11: Not officially supported - consider Windows 10 or Linux
• Value Proposition: Budget all-in-one with basic specifications for simple computing needs
• Compared to V510z: V310z is older generation with lower specs; V510z has newer components
• Compared to ThinkCentre: V series is consumer/budget line; ThinkCentre is business line with better features
• Ideal Use Case: Basic home computer, student computer, digital signage, kiosk system
