Executive Summary

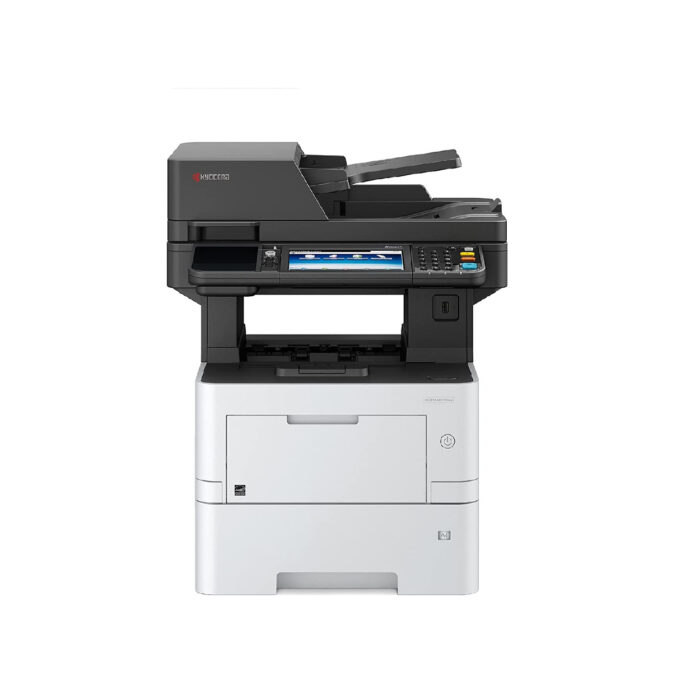

The Kyocera Ecosys M2640idw is a high-performance A4 monochrome multifunction printer designed for modern workgroups requiring comprehensive black and white document management with wireless flexibility. This all-in-one device combines printing, copying, scanning, and faxing capabilities with Kyocera's signature Ecosys technology featuring exceptionally long-life components for reduced total cost of ownership. The standout feature is its integrated wireless connectivity (Wi-Fi and Wi-Fi Direct) alongside traditional Ethernet, making it ideal for offices with mobile workers or flexible seating arrangements. With a fast 40 ppm print speed, 7-inch color touchscreen interface, 50-page automatic document feeder, and robust 150,000-page monthly duty cycle, the M2640idw delivers professional-grade monochrome performance in a compact footprint. Its advanced security features and low operating costs make it suitable for small to medium-sized offices requiring reliable high-volume black and white document production with modern connectivity options.

Detailed Specifications

1. Printing Technology

• Technology: LED Array Monochrome Printing System
• Print Method: Electro-photographic process with LED exposure
• Print Resolution: 1200 x 1200 dpi (HQ1200 quality enhancement)
• Key Advantage: Ecosys technology provides:
  • Long-life drum (100,000 pages)
  • Separate toner and drum design reduces waste
  • Consistent, sharp text output
  • Industry-leading low total cost of ownership

2. Print Performance

• Print Speed:
  • Black: Up to 40 pages per minute
  • First print out: Less than 7.5 seconds
• Warm-up Time: Less than 20 seconds from sleep mode
• Print Resolution:
  • Maximum: 1200 x 1200 dpi
  • HQ1200: Enhanced image quality technology
  • 600 x 600 dpi standard
• Processor & Memory:
  • Processor: 1.2 GHz dual-core
  • Standard Memory: 2 GB
  • Hard Drive: 160 GB (user data area: 80 GB)

3. Copy Functions

• Copy Speed: Up to 40 copies per minute
• Copy Resolution: Up to 600 x 600 dpi
• Copy Features:
  • Reduce/Enlarge: 25% to 400%
  • Auto Duplex Copying
  • N-up copying (2/4/8/16 pages per sheet)
  • ID card copying (front and back on single page)
  • Book copy with edge erase
  • Background removal and text emphasis
  • Combine originals (multiple pages to single page)

4. Scan Functions

• Scanner Type: Flatbed + 50-sheet Automatic Document Feeder (ADF)
• Scan Resolution:
  • Optical: 600 x 600 dpi
  • Enhanced: Up to 9600 dpi (software enhanced)
• ADF Capacity: 50 sheets (single pass duplex scanning)
• Scan Speed:
  • Monochrome: Up to 70 images per minute (simplex), 140 ipm (duplex)
• Scan Features:
  • Scan to Email, FTP, SMB, USB, Desktop
  • Scan to Cloud services (Google Drive, Dropbox, OneDrive)
  • OCR (Optical Character Recognition) with multi-language support
  • Advanced PDF creation (searchable PDF, PDF/A, PDF with encryption)
  • Scan to smartphone/tablet via Kyocera Mobile Print
  • Scan workflow customization and automation
  • Color scanning capability (produces color scans despite monochrome print)

5. Fax Capabilities

• Fax Type: Super G3 digital fax
• Transmission Speed: Approximately 3 seconds per page
• Compression: MH/MR/MMR/JBIG
• Resolution: Standard/Fine/Superfine
• Memory Capacity: Up to 1,000 pages
• Broadcast Fax: Send to up to 500 locations
• Internet Fax: Supported (optional)
• Delayed Transmission: Program up to 10 different transmission times

6. Paper Handling

• Standard Configuration:
  • Multi-purpose tray: 100 sheets
  • Paper tray 1: 250 sheets
  • Paper tray 2: 250 sheets
  • Output tray: 250 sheets (face-down)
• Maximum Configuration:
  • Additional 500-sheet tray (optional)
  • Additional 500-sheet tray 3 (optional)
  • Total maximum: 1,550 sheets
• Supported Paper Sizes:
  • A4, A5, A6, B5, B6
  • Letter, Legal, Executive, Folio
  • Envelopes: DL, COM10, C5, C6
  • Custom sizes: 76 x 127 mm to 216 x 356 mm
• Supported Media Types:
  • Plain paper (60-105 g/m²)
  • Heavy paper (up to 220 g/m²)
  • Recycled paper
  • Labels, envelopes, card stock
  • Transparency films
• Automatic Duplex: Standard (printing, copying, scanning)

7. Toner System

• Toner Cartridge: TK-8315 (10,000 pages at 5% coverage)
• High-Yield Option: TK-8315H (20,000 pages)
• Drum Unit: DS-8315 (100,000 pages)
• Toner Save Mode: Yes (up to 50% toner savings)
• Key Features:
  • Exceptional 100,000-page drum life
  • High-yield toner options available
  • Low melting point EA-Eco toner for energy efficiency
  • Auto toner replenishment and notification system
  • Toner near-empty and empty detection

8. Connectivity

• Standard Connectivity:
  • Ethernet: 10/100/1000Base-TX (Gigabit)
  • USB 2.0: Device and host ports
  • Wi-Fi: 802.11a/b/g/n/ac
  • Wi-Fi Direct: Device-to-device connection
• Mobile Printing:
  • Kyocera Mobile Print (iOS/Android)
  • Apple AirPrint
  • Google Cloud Print
  • Mopria Print Service
  • Chromebook printing
• Network Protocols:
  • TCP/IP, IPv4, IPv6
  • HTTP, HTTPS, FTP, SMTP, LDAP
  • SNMP, SMB, WebDAV

9. Display & Controls

• Display: 7-inch color touchscreen LCD
• Control Panel:
  • Touchscreen interface with customizable home screen
  • Physical Start/Stop buttons
  • Numeric keypad for fax and direct entry
  • LED status indicators
• User Interface Features:
  • Multi-language support (over 30 languages)
  • Customizable shortcut keys and workflows
  • Status monitoring and alerts
  • Troubleshooting guidance with animated help
  • User authentication interface
  • Job accounting and cost tracking display

10. Physical Specifications

• Dimensions (W x D x H):
  • Basic unit: 605 x 620 x 671 mm
  • With paper trays: 605 x 720 x 671 mm
• Weight: Approximately 40 kg (without toner)
• Power Consumption:
  • Printing: Approx. 1.1 kW
  • Copying: Approx. 1.1 kW
  • Ready: Approx. 85W
  • Sleep: Approx. 2.0W
  • Auto-off: Approx. 0.5W
• Noise Level:
  • Printing: Less than 55 dB(A)
  • Standby: Less than 35 dB(A)

11. Software & Compatibility

• Operating Systems:
  • Windows 7, 8, 10, 11
  • Windows Server 2008-2022
  • macOS 10.12 or later
  • Linux (CUPS, LPD/LPRng)
• Included Software:
  • Kyocera Command Center RX
  • Kyocera Print Supervisor
  • PageScope Direct Print
  • Kyocera Net Viewer
• Security Features:
  • User authentication (local, network, card)
  • Secure Print, Encrypted PDF
  • IPsec, SSL/TLS encryption
  • Data encryption on hard drive
  • Automatic data overwrite

Cost Analysis & Value Proposition

Initial Investment vs. Long-term Savings:

• Mid-range Investment: Competitive for monochrome multifunction printers
• Cost Per Page (CPP):
  • Black: Approximately $0.005-$0.008 per page
• Total Cost of Ownership: Exceptionally low due to 100K drum life and high-yield toners
• Value Proposition: Enterprise features with workgroup pricing and wireless flexibility

Consumable Economics:

• Standard Toner (10K): $70-90 per cartridge
• High-Yield Toner (20K): $120-150 per cartridge
• Drum Unit (100K): $200-250 per unit
• Maintenance Kit: Required at 300,000 pages

Target Market & Use Cases

Ideal For:

• Small to Medium Offices: 5-25 user workgroups
• Modern Work Environments: Offices with mobile workers, hot-desking
• Educational Institutions: School offices, university departments
• Healthcare Facilities: Clinic offices, medical records (black and white)
• Legal & Accounting Firms: Document-intensive environments
• Government Offices: Administrative departments

Monthly Volume Recommendations:

• Optimal Range: 3,000-20,000 pages per month
• Maximum Capacity: Up to 150,000 pages per month
• Drum Replacement Interval: Every 100,000 pages (approx. 5-33 months)

Final Recommendation

Buy the Kyocera Ecosys M2640idw If:

• You need a complete monochrome multifunction solution with wireless flexibility
• Your office has mobile workers or flexible seating arrangements
• You print 3,000-20,000 black and white pages per month
• Low total cost of ownership is important for your budget
• You need advanced security features and user authentication
• You want a modern 7-inch touchscreen interface for easy operation
• You need reliable high-volume monochrome printing with scanning/copying/faxing

Consider Alternatives If:

• You need color printing capability (consider color models)
• You print less than 1,000 pages monthly (smaller MFP may suffice)
• Wireless connectivity is not required (consider M2640dn for cost savings)
• You need A3 printing capability
• Budget is extremely constrained
• You require advanced finishing like stapling or hole punching

Bottom Line:

The Kyocera Ecosys M2640idw is a powerful A4 monochrome multifunction printer that combines high-volume performance with modern wireless connectivity. With its fast 40 ppm print speed, robust 150,000-page monthly duty cycle, and Kyocera's signature Ecosys technology featuring a 100,000-page drum life, this printer delivers exceptional reliability and industry-leading low operating costs. The integrated Wi-Fi and Wi-Fi Direct capabilities make it ideal for contemporary offices with mobile workers, while the 7-inch color touchscreen provides an intuitive user experience. For organizations needing reliable high-volume black and white document production with the flexibility of wireless connectivity and comprehensive MFP functionality, the M2640idw represents an excellent balance of performance, features, and value.
